Description
Overview:

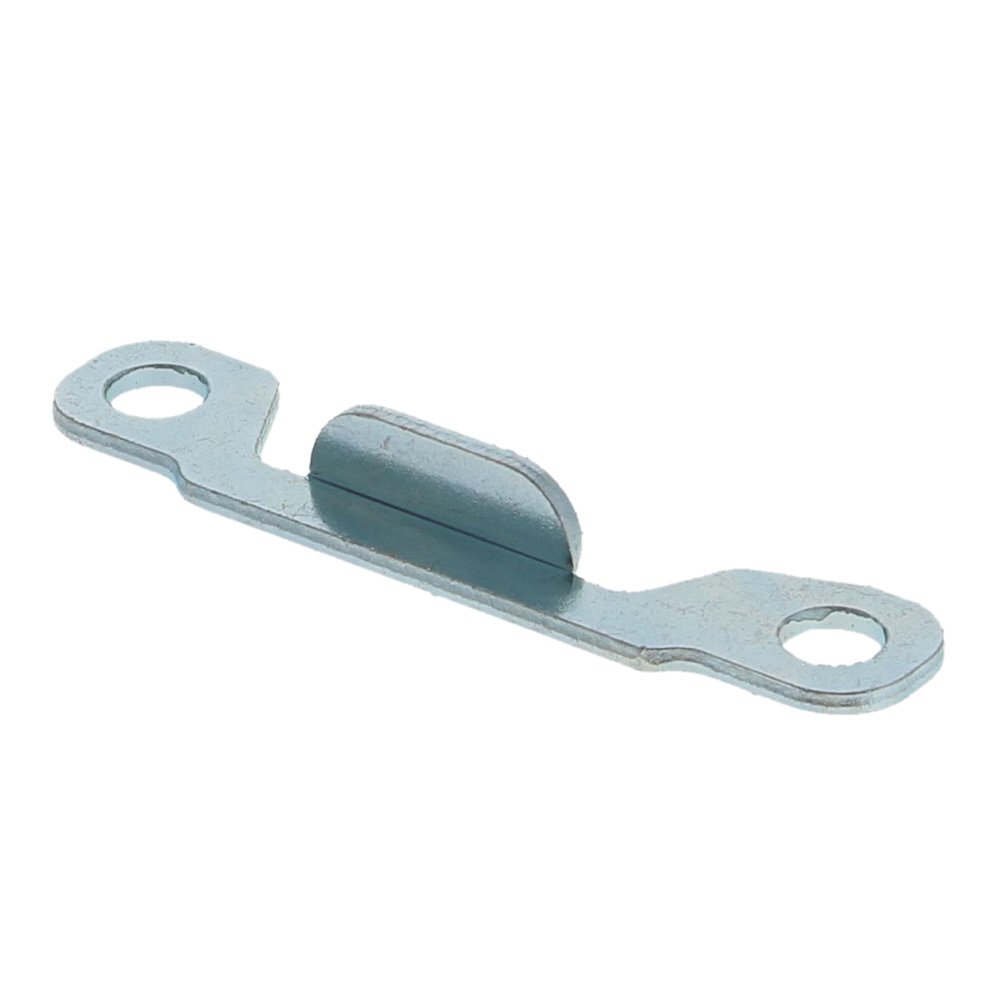

This Cylinder Bracket is a genuine Husqvarna spare part (part no. 506 36 88 01) for Husqvarna/Partner petrol disc cutters. Built from a robust metal alloy for strength and stability, it supports and braces the cylinder assembly to maintain correct alignment and smooth running. Correct cylinder support helps protect surrounding components and contributes to reliable cutting performance under tough site conditions. Designed for popular machines such as the K750 and K760, it is also specified for several K770 variants. Suitable for routine repairs or preventative maintenance, this OE bracket fits accurately with factory tolerances, helping reduce vibration, wear, and the risk of misalignment over time. Genuine status ensures proper fit, compatibility, and long-term reliability in demanding construction and rescue use.
Key Features:
- Genuine Husqvarna part for accurate fit and compatibility
- Durable metal alloy construction for stability and long service life
- Supports the cylinder to maintain alignment and smooth operation
- Helps reduce stress on engine mounts and adjacent components
- Precision mating faces to suit OEM fasteners and housings
- Suitable for heavy-duty, high-vibration cutting environments
- Straightforward installation with standard workshop tools (follow service manual torque settings)
- Reliable choice for planned maintenance or like-for-like replacement
Typical Applications:
Used on Husqvarna/Partner disc cutters in construction, demolition, roadworks, utilities, and rescue operations. Ideal when refurbishing engines, addressing impact damage, or resolving alignment issues that affect cutting performance. Also useful during full rebuilds to restore factory geometry and help control vibration.
Also known as:
Cylinder support, cylinder holder, cylinder mount, engine cylinder bracket, cylinder stay, cylinder brace. These terms refer to the same supporting bracket used to stabilise and align the cylinder assembly in compatible disc cutters.
Fits Models:
K750, K760, K760 Cut-n-Break, K760 Cut-n-Break II, K760 II, K760 Rescue, K760II, K770, K770 Dry Cut, K770 OilGuard, K770 Rescue, K770 VAC, K770VAC
Alternate Part Numbers:
506368801
Product Specifications
| L&S Part No. | 506 36 88 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 506368801 |
| Unit of Sale | 1 |
| Applications | K750, K760, K760 Cut-n-Break, K760 Cut-n-Break II, K760 II, K760 Rescue, K760II, K770, K770 Dry Cut, K770 OilGuard, K770 Rescue, K770 VAC, K770VAC |
| Machine Type | Disc Cutters |
| Fits Brands | Husqvarna |
| Fits Models | K750 | K760 | K770 | K760 Cut-n-Break | K760 RESCUE | K760 Cut-n-Break II | K760 II | K770 Dry Cut | K770 OilGuard | K770 Rescue | K770 SmartGuard | K770 VAC |
