Description
Overview:

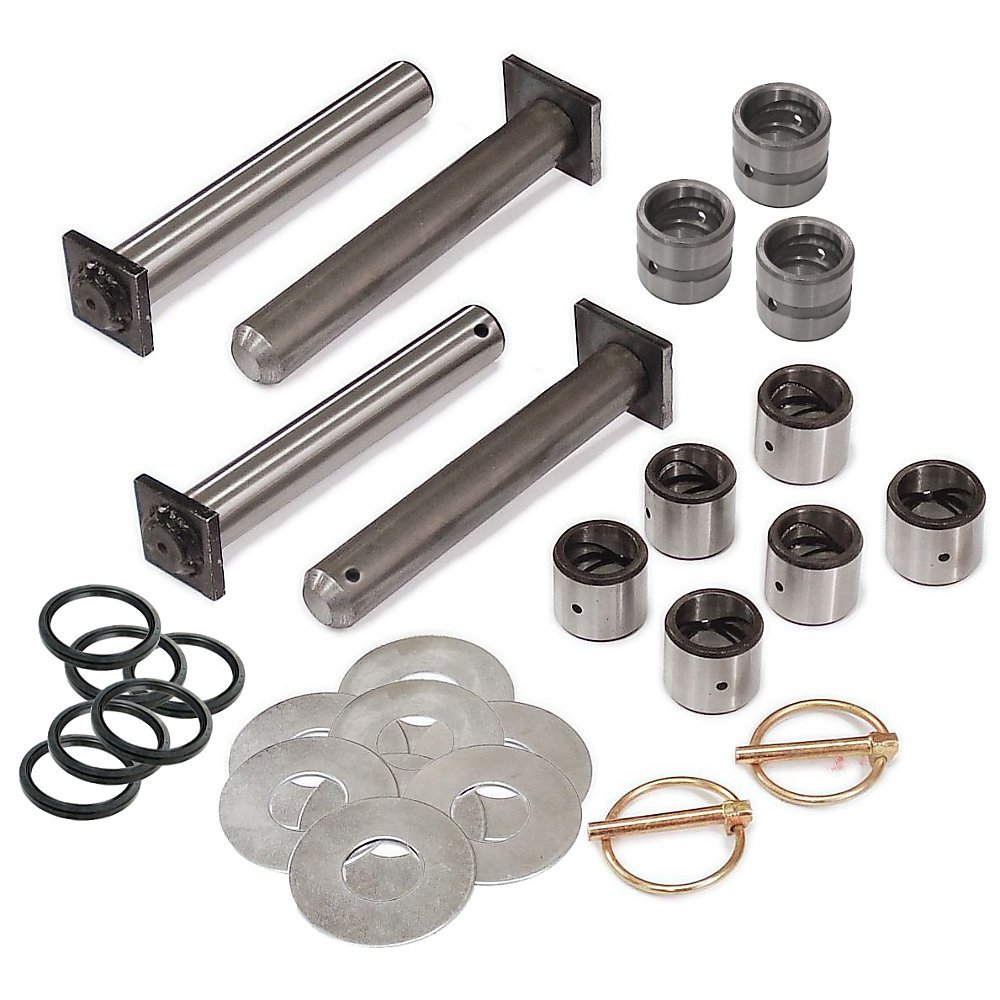

The Dipper End Pin & Bush Kit is an aftermarket replacement set for the bucket end of Volvo compact excavators, helping restore smooth, accurate movement at the dipper-to-bucket and ram eye pivots. Built from durable, wear‐resistant components, it replaces tired pins and bushes that cause play and uneven wear. The kit suits daily site work and regular maintenance and is ideal for keeping machines tight and responsive. It includes matched pins, bushes, shims, seals and lynch pins to secure and protect the joint. Designed for the popular Volvo EC14 and EC15 series, it provides a practical, cost‐effective way to bring worn joints back within tolerance without guesswork, reducing downtime and helping to protect linkages and bucket edges from further damage.
Key Features:
- Complete dipper end set to renew bucket and ram eye pivot points
- Includes 2 bucket pins (200 263) and 2 position 8/10 pins (202 543) for correct fitment
- 6 position 8/9/11 bushes (202 902) and 3 position 10 bushes (202 544) to match OEM layout
- 1 position 10 ram bush (996 502) to stabilise the cylinder rod eye
- 2 lynch pins (LP14) for secure pin retention and quick removal
- 8 shims (300 023) to set side clearance and minimise end float
- 6 dust seals (202 701) to help keep grit out and extend service life
- Supports smooth articulation, reducing bucket wobble and uneven wear
- Straightforward to fit with standard workshop tools and practices
- Suitable for routine maintenance or full dipper end refresh on compact excavators
Typical Applications:
Renewing worn pivot points on the dipper end of compact excavators working in construction, landscaping, utilities and hire fleets. Useful when play is noticed at the bucket linkage or ram eye, after bushing wear, or during a planned rebuild. Helps maintain accurate digging, grading and loading performance while reducing stress on linkages and bucket edges.
Also known as:
Dipper end repair kit, bucket linkage pin and bush kit, pivot pin kit, bucket pin set, excavator bushing kit, dipper bush set, linkage rebuild kit, pivot repair set, excavator arm pin kit.
Fits Models:
EC14, EC15, EC15B, EC17, EC18
