Description
Overview:

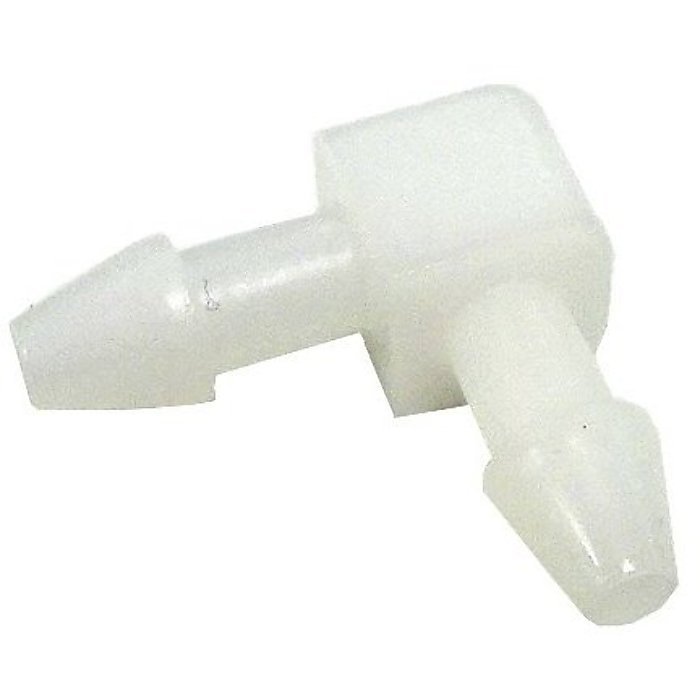

This Elbow Connector is a Genuine Stihl OEM part for routing small-bore lines on petrol tools such as chainsaws, brushcutters and cut-off saws. Built from fuel- and oil‐resistant elastomer, it forms a compact 90° junction to guide hoses cleanly without kinking, helping maintain airtight and leak‐free connections between components such as the carburettor, tank vent and impulse or fuel lines. It is engineered for an exact factory fit on Stihl equipment, including MS 261 and MS 261 C. The manufacturer part number is 4224 122 3900. Using the correct elbow ensures stable running, easy starting and consistent performance, especially in dusty or high‐vibration conditions common on construction and forestry sites.
Key Features:
- Genuine Stihl part for assured compatibility and fit
- Durable, fuel- and oil‐resistant elastomer for long service life
- 90° form prevents hose kinks and reduces strain on connections
- Maintains airtight seals to support reliable starting and smooth running
- Precision-moulded to OEM dimensions for quick, straightforward fitting
- Resistant to vibration, heat and debris typical of tough site work
- Helps prevent leaks that can lead to poor performance or damage
- Suitable for routine maintenance or like‐for‐like replacement of worn elbows
Typical Applications:
Used to connect and re-route small hoses in Stihl engines, typically between the fuel tank, carburettor, impulse line or tank vent. Common on professional and homeowner tools working in forestry, landscaping, grounds maintenance and construction cutting tasks, where reliable hose routing and sealing are essential for performance and safety.
Also known as:
Elbow hose connector, 90° hose elbow, angle connector, elbow fitting, bend fitting, elbow joint, line elbow, pipe elbow, elbow coupler, rubber hose elbow.
Fits Models:
066, FR 410 C, FR 460 TC, FS 240, FS 240 C, FS 240 RC, FS 260, FS 260 C, FS 260 RC, FS 360 C, FS 410 C, FS 460 C, FS 460 RC, FS 490 C, FS 510 C, FS 560 C, FS 94, FS 94 C, FS 94 R, FS 94 RC, HL 91 K, HL 91 KC, HL 92 C, HL 92 KC, HL 94, HL 94 C, HL 94 K, HL 94 KC, KM 94 R, KM 94 RC, MS 231, MS 231 C, MS 241 C, MS 251, MS 251 C, MS 261, MS 261 C, MS 271, MS 271 C, MS 291, MS 291 C, MS 311, MS 362, MS 362 C, MS 391, MS 400 C, MS 441, MS 441 C, MS 462, MS 462 C, MS 640, MS 650, MS 660, MS 881, TS 400, TS 700, TS 800
Alternate Part Numbers:
4224-122-3900, 42241223900
Product Specifications
| L&S Part No. | 4224 122 3900 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42241223900 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws, Brushcutters, Disc Cutters, Pole Pruners |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part ensures compatibility with listed models - Fuel- and oil-resistant elastomer for durability - 90° design prevents hose kinks - Maintains airtight seals for reliable performance - Precision-moulded for easy fitting on Stihl equipment |
| Fits Models | TS400 | MS640 | TS700 | MS362, MS362C | FS240, FS260 | FS360C FS410C | FS460C, FS460RC | MS261, MS261C | MS441, MS441C | FS94, FS94 C, FS94R, FS94RC | FS490C, FS510C, FS560C | FR410C, FR460TC | TS800 | MS231, MS251 | MS241C | MS271, MS271C, MS291, MS291C | MS311 | MS391 | MS462, MS462C | MS650 | MS660 | 066 | KM94R, KM94RC | HL91K, HL91KC | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | MS400C | MS881 | FS411 C-EM | FS461 C-EM | FS491 C-EM | FS561 C-EM | FS361C | FS461 C-EML |
