Description
Overview:

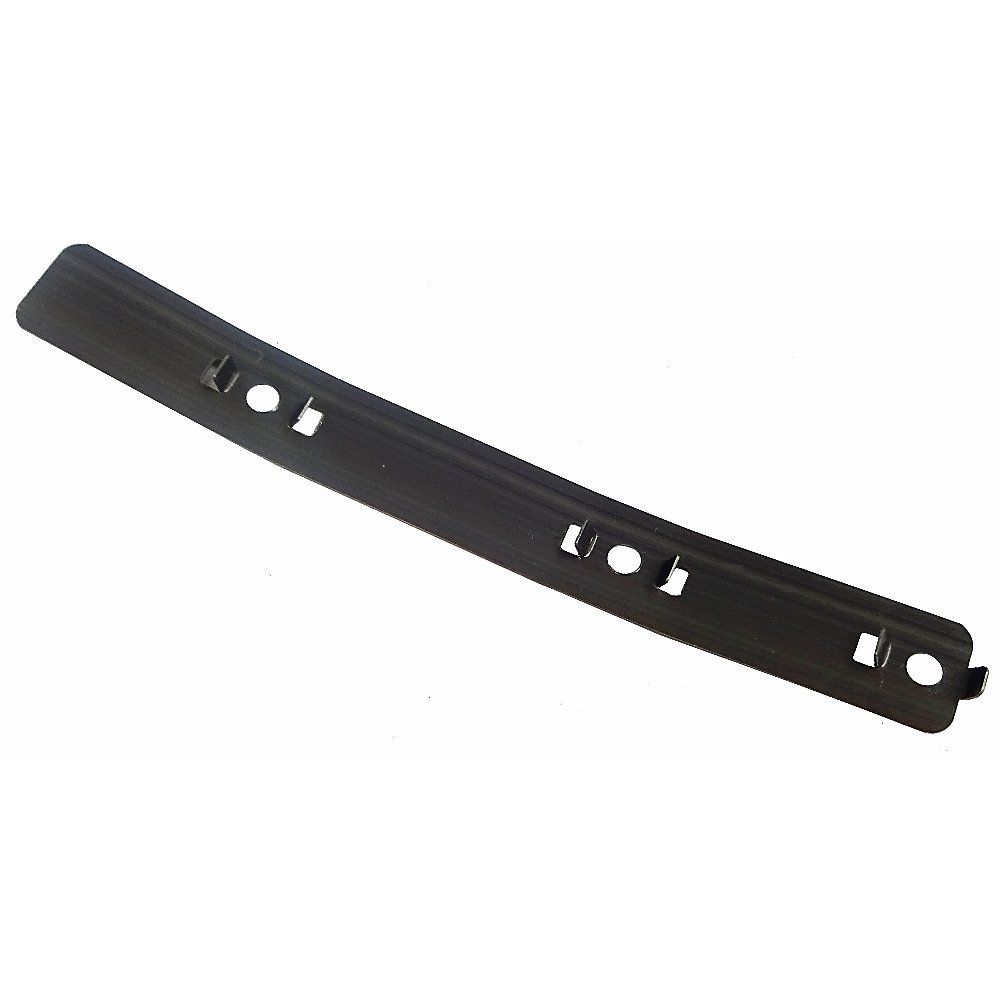

This Flat Spring is a genuine Stihl OEM part for the FH-KM and HL-KM hedge trimmer attachment ranges. Made from durable spring steel, it provides the correct tension within the mechanism so your tool operates smoothly and reliably. It replaces worn or fatigued springs that can cause poor engagement, sticking, or loss of adjustment. Designed to Stihl specifications under Manufacturer Part Number 4230 713 1715, it offers an accurate fit and consistent performance in compatible machines. Suitable for professional and domestic users, it helps maintain optimal cutting action and control in long‐reach and articulating hedge trimmer heads such as the Stihl FH-KM and HL-KM.
Key Features:
- Genuine Stihl OEM part for reliability and correct fit
- MPN: 4230 713 1715 for clear identification and ordering
- Robust spring steel for long service life and stable tension
- Helps restore smooth operation and precise head adjustment
- Supports consistent cutting performance and reduces downtime
- Suitable for routine maintenance or corrective repair
- Compatible across a wide range of Stihl hedge trimmer models
- Straightforward replacement with basic hand tools
- Engineered to match original spring rate and geometry
Typical Applications:
Used during servicing or repair of Stihl hedge trimmer attachments to replace a weakened or broken flat spring. Helps maintain correct tension in the head or linkage so the cutter bar articulates and locks as intended. Ideal for landscape professionals, grounds teams, and homeowners who need dependable trimming performance and consistent adjustment.
Also known as:
Flat leaf spring, return spring plate, tension spring, replacement spring, machine spring, equipment spring, hinge spring, linkage spring for hedge trimmer head mechanisms.
Fits Models:
FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH-KM0-90deg, FH-KM135deg, FH75, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM, HS242, HS246, HS60, HS61, HS75, HS80, HS85
Alternate Part Numbers:
4230-713-1715, 42307131715
Product Specifications
| L&S Part No. | 4230 713 1715 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42307131715 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH-KM0-90deg, FH-KM135deg, FH75, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM, HS242, HS246, HS60, HS61, HS75, HS80, HS85 |
| Machine Type | Hedgetrimmers |
| Fits Models | HS60, HS61 | HS75 | HS242, HS246 | FH-KM 0-90 deg | FH-KM 135 deg | HL-KM 0 deg | HL-KM 30 deg | HL-KM 0-90 deg | HL-KM 0-135 deg | HL45 | HL73, HL73K | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 600 K | HEL 600 | HEL 700 K | HEL 700 | HS80 | HS85 | HL 95, HL 95 K | HLE 71, HLE 71 K | FH 0° - 90 ° | FH 135° | HL 0° | HL 30° | HL 0° - 90° | HL 135° |
