Description
Overview:

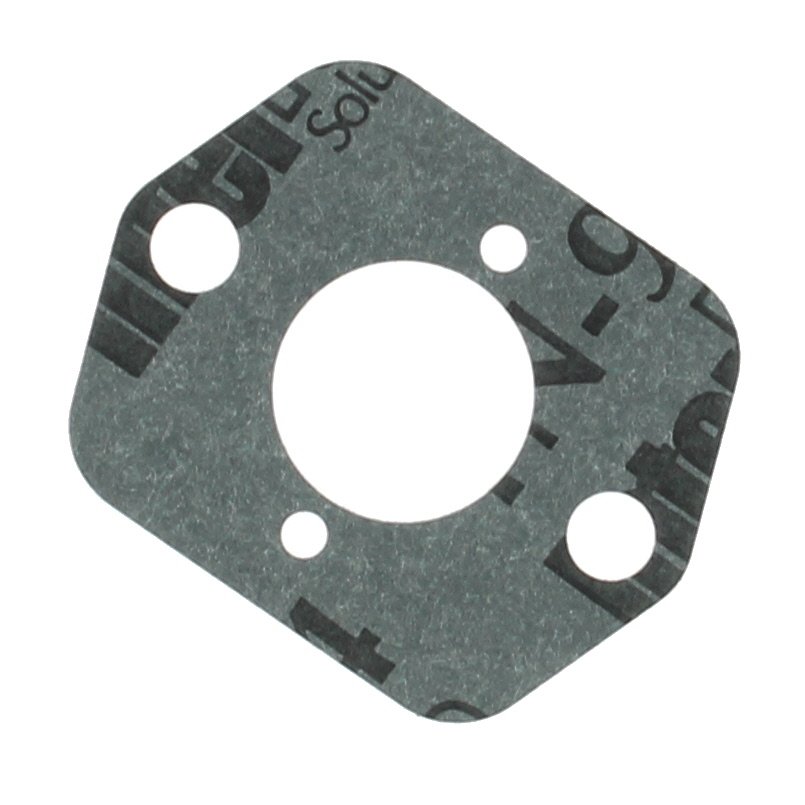

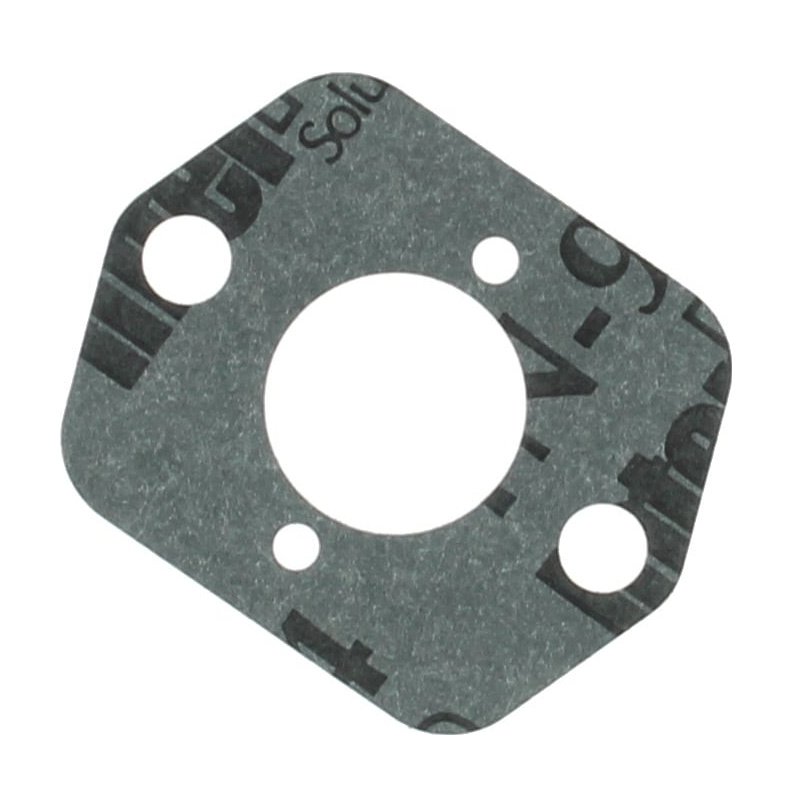

This is a genuine Husqvarna engine gasket for handheld petrol machines such as the 322R and 323R brushcutters. Supplied under MPN 503497101 (often shown as 503 49 71 01), it is made from durable gasket material engineered to seal mating engine surfaces and prevent air, fuel, and oil leaks. A correct seal helps maintain compression, stable running, and reliable starting. Designed specifically for Husqvarna two‐stroke equipment, it offers an accurate fit without modification. Suitable for routine maintenance or repair, it supports long service life in demanding outdoor use where heat, vibration, and fuel exposure are common. As a Genuine OEM part, it provides the right profile and hole alignment to match the original assembly and restore factory performance.
Key Features:
- Genuine Husqvarna OEM gasket (MPN 503497101 / 503 49 71 01) for correct fit and compatibility
- Provides a tight seal to help prevent air leaks, fuel seepage, and oil misting
- Durable composite gasket material resists petrol, oil, heat, and vibration
- Precise cut-outs for easy alignment; fits with standard hand tools
- Helps maintain compression and stable tuning for consistent performance
- Suitable for preventative maintenance or component replacement in the engine assembly
- Designed for outdoor duty in brushcutters and related handheld machines
Typical Applications:
Used when assembling or servicing engine joints on Husqvarna petrol brushcutters, trimmers, hedge trimmers, and pole tools. Typical positions include intake or carburettor interfaces, crankcase covers, or exhaust junctions (location varies by model). Ideal for resolving false‐air issues, restoring idle quality, and preventing fuel or oil leaks after disassembly or wear.
Also known as:
Engine gasket, sealing gasket, engine seal, sealing washer, spacer, shim gasket, jointing gasket, carburettor gasket, intake gasket, exhaust/muffler gasket.
Fits Models:
135R, 223 L, 223 R, 223L, 223R, 241R, 241RJ, 322 C, 322 E, 322 L, 322 T, 322C, 322E, 322L, 322R, 322T, 323 C, 323 E, 323 Ex, 323 L, 323 LD, 323C, 323E, 323Ex, 323HD60, 323HE3, 323L, 323LD, 323P, 323R, 323RII, 323RJ, 323RJX, 325 CX, 325 E, 325 LDx, 325 LXT, 325 Lx, 325 TX, 325CX, 325E, 325HD75 X-Series, 325HDA55 X-Series, 325HDA65 X-Series, 325HE3 X-Series, 325HE4 X-Series, 325HS75 X-Series, 325HS99 X-Series, 325LDx, 325LXT, 325Lx, 325P, 325RDX, 325RJX, 325RX, 325RXT, 325TX, 326 AI 25, 326 C, 326 CX, 326 ES, 326 EX, 326 HD75 X-Series, 326 HDA55 X-Series, 326 L, 326 LDx, 326 LS, 326 Lx, 326C, 326CX, 326ES, 326EX, 326HD60 X-Series, 326HD75 X-Series, 326HDA55 X-Series, 326HE3 X-Series, 326HE4 X-Series, 326HS75 X-Series, 326HS99 X-Series, 326L, 326LDx, 326LS, 326Lx, 326P, 326RJX, 326RX, 327 LDx, 327 Lx, 327HDA65 X-Series, 327HE3 X-Series, 327HE4 X-Series, 327LDx, 327Lx, 327P, 327P4, 327P5x, 327PT5S, 327RDX, 327RJX, 327RX, 333R, 333RJ, 335 LS, 335 LX, 335FR, 335LS, 335LX, 335R, 335RJX, 335RX, 336FR, 336FRD, 336RK, 535 LK, 535FBX, 535LK, 535LS, 535RJ, 535RX, 535RXT, Saw Attachment
Alternate Part Numbers:
503497101, 503 49 71 01
Product Specifications
| L&S Part No. | 503 49 71 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503497101 |
| Unit of Sale | 1 |
| Applications | 135R, 223 L, 223 R, 223L, 223R, 241R, 241RJ, 322 C, 322 E, 322 L, 322 T, 322C, 322E, 322L, 322R, 322T, 323 C, 323 E, 323 Ex, 323 L, 323 LD, 323C, 323E, 323Ex, 323HD60, 323HE3, 323L, 323LD, 323P, 323R, 323RII, 323RJ, 323RJX, 325 CX, 325 E, 325 LDx, 325 LXT, 325 Lx, 325 TX, 325CX, 325E, 325HD75 X-Series, 325HDA55 X-Series, 325HDA65 X-Series, 325HE3 X-Series, 325HE4 X-Series, 325HS75 X-Series, 325HS99 X-Series, 325LDx, 325LXT, 325Lx, 325P, 325RDX, 325RJX, 325RX, 325RXT, 325TX, 326 AI 25, 326 C, 326 CX, 326 ES, 326 EX, 326 HD75 X-Series, 326 HDA55 X-Series, 326 L, 326 LDx, 326 LS, 326 Lx, 326C, 326CX, 326ES, 326EX, 326HD60 X-Series, 326HD75 X-Series, 326HDA55 X-Series, 326HE3 X-Series, 326HE4 X-Series, 326HS75 X-Series, 326HS99 X-Series, 326L, 326LDx, 326LS, 326Lx, 326P, 326RJX, 326RX, 327 LDx, 327 Lx, 327HDA65 X-Series, 327HE3 X-Series, 327HE4 X-Series, 327LDx, 327Lx, 327P, 327P4, 327P5x, 327PT5S, 327RDX, 327RJX, 327RX, 333R, 333RJ, 335 LS, 335 LX, 335FR, 335LS, 335LX, 335R, 335RJX, 335RX, 336FR, 336FRD, 336RK, 535 LK, 535FBX, 535LK, 535LS, 535RJ, 535RX, 535RXT, Saw Attachment |
| Machine Type | Brushcutters |
| Fits Brands | Husqvarna |
| Fits Models | 323HD60 | 323HE3 | 325HD75 X-SERIES | 325HDA55 X-SERIES | 325HDA65 X-SERIES | 325HE3 X-SERIES | 325HE4 X-SERIES | 325HS75 X-SERIES | 325HS99 X-SERIES | 326HD60 X-SERIES | 326 HD75 X-SERIES | 326 HDA55 X-SERIES | 326HE3 X-SERIES | 326HE4 X-SERIES | 326HS75 X-SERIES | 326HS99 X-SERIES | 327HDA65 X-SERIES | 327HE3 X-SERIES | 327HE4 X-SERIES | 323P | 325P | 326P | 327PT5S | 327P | Saw Attachment | 135R | 223 L | 223 R | 241R | 241RJ | 322R | 323R | 323RII | 323RJ | 323RJX | 325RDX | 325RJX | 325RX | 325RXT | 326RJX | 326RX | 327RDX | 327RJX | 327RX | 333R | 333RJ | 335FR | 335R | 335RJX | 335RX | 336FR | 336FRD, 336RK | 535FBX | 535LS | 535RJ | 535RX | 535RXT | 223 L | 322 C | 322 E | 322 L | 322 T | 323 C | 323 E | 323 Ex | 323 L | 323 LD | 325 CX | 325 E | 325 LDx | 325 Lx | 325 LXT | 325 TX | 326 C | 326 CX | 326 ES | 326 EX | 326 L | 326 LDx | 326 LS | 326 Lx | 327 LDx | 327 Lx | 335 LS | 335 LX | 535 LK | 326 AI 25 | 327P4 | 327P5x |
