Description
Overview:

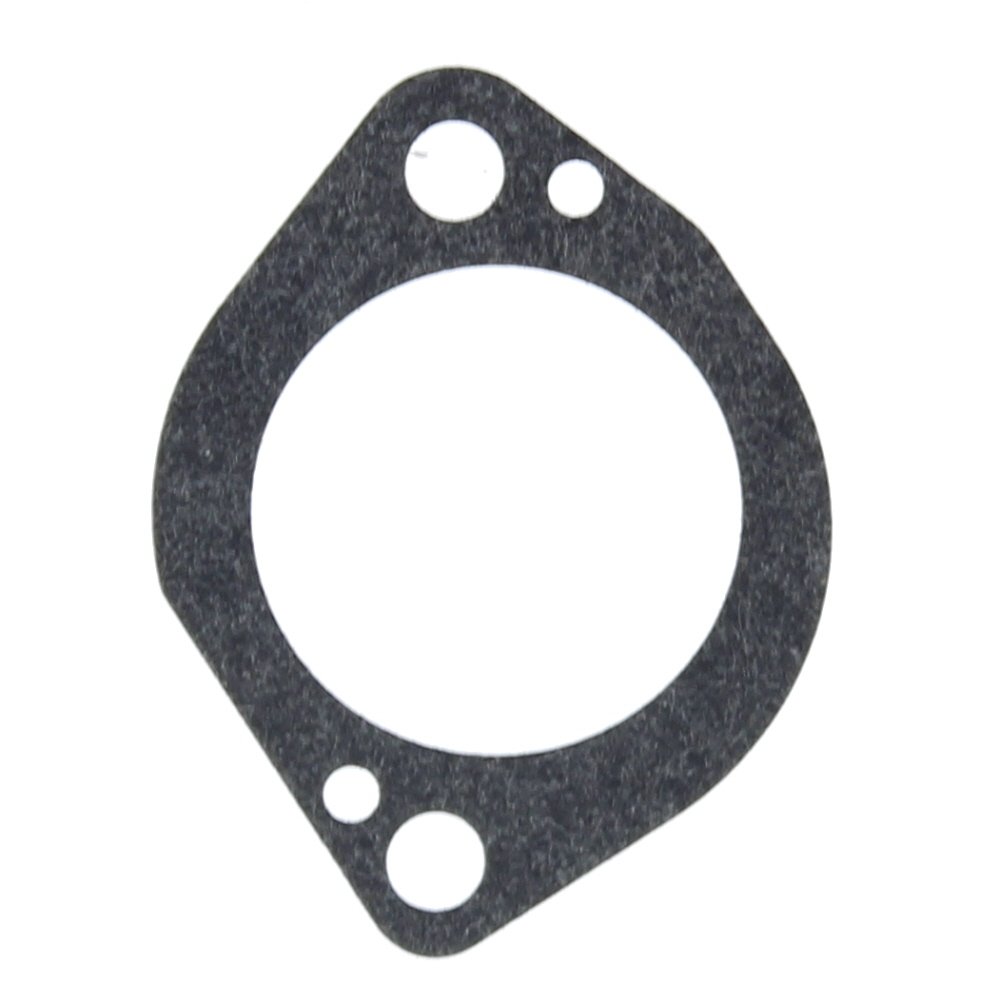

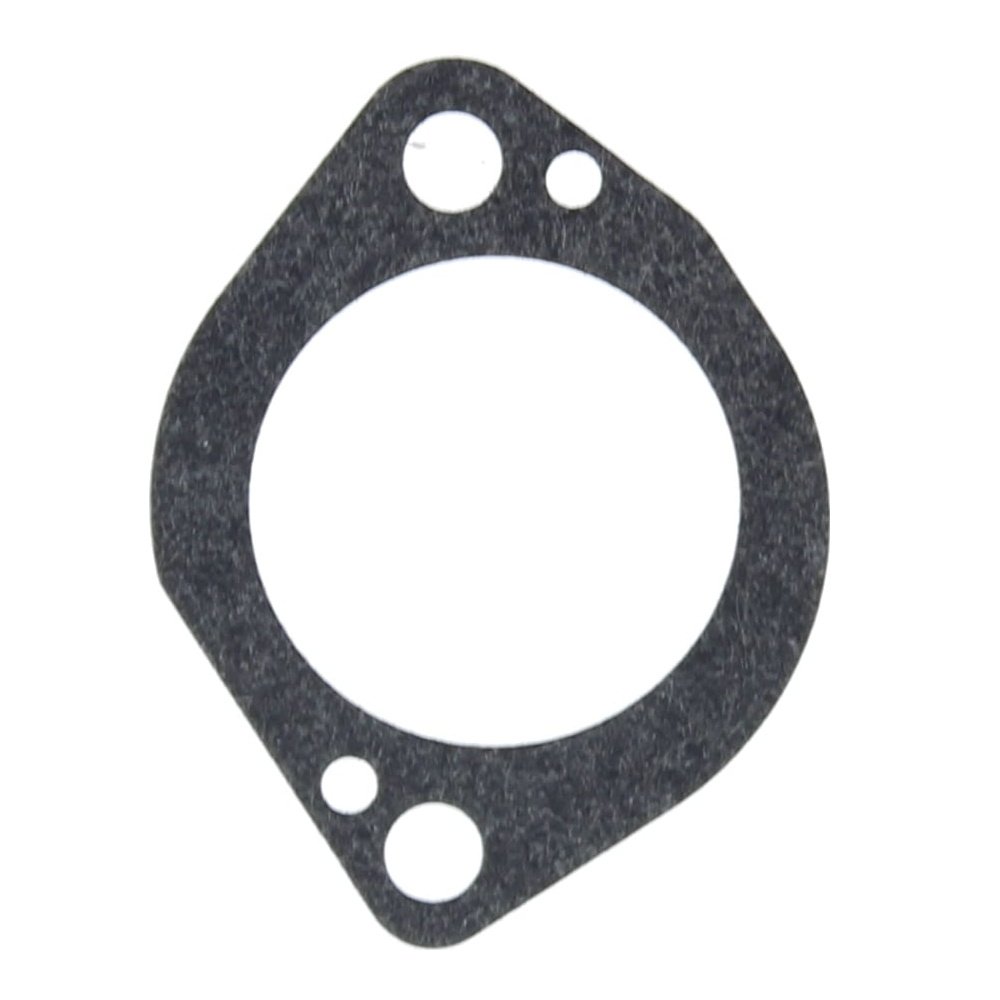

This is a genuine Stihl gasket (part number 4180 129 0903) for sealing critical joints on a wide range of Stihl handheld machines. Made from a durable, heat- and fuel-resistant composite material, it creates an airtight seal between mating engine components to prevent air, fuel or oil leaks. A sound seal helps maintain correct mixture, vacuum and compression, which supports easy starting, steady idling and reliable power under load. It is suitable for Stihl hedgetrimmers and multi-tools, including the HL100 and HL90K, and is also used across selected brushcutters, blowers, pole pruners and Kombi engines built on the same engine family. As an OEM gasket, it matches the original profile and port layout for consistent performance and a straightforward replacement.
Key Features:
- Genuine Stihl OEM part (4180 129 0903) for precise fit and compatibility
- Composite material resists fuel, oil and heat for long service life
- Maintains airtight sealing to support correct engine tuning and performance
- Helps cure air-leak issues that can cause hard starting and poor idling
- Accurate cut-outs and bolt holes align with original components
- Suitable for routine servicing as well as repairs and rebuilds
- Straightforward to install with standard hand tools
- Compatible across many Stihl 4-MIX and 2-stroke models listed below
Typical Applications:
Used when refitting intake or carburettor components, replacing damaged or aged gaskets, or during routine maintenance after carburettor removal and cleaning. Common in repairs addressing false air leaks, fuel seepage, erratic idle or loss of power on Stihl hedgetrimmers, brushcutters, blowers, pole pruners and Kombi engines.
Also known as:
Sealing gasket, carburettor gasket, intake gasket, manifold gasket, engine gasket, spacer gasket, trimmer gasket, blower gasket, hedge trimmer gasket.
Fits Models:
BR 500, BR 550, BR 600, BR 700, BT 130, BT 130 Z, FC 90, FC 95, FC 100, FC 110, FR 130 T, FS 83, FS 83 T, FS 87, FS 87 R, FS 90, FS 90 R, FS 100, FS 100 R, FS 100 RX, FS 110, FS 110 R, FS 110 RX, FS 110 X, FS 120, FS 130, FS 130 R, FS 200, FS 250, FS 310, FT 100, HL 90 K, HL 95, HL 95 K, HL 100, HT 73, HT 100, HT 101, HT 130, HT 131, KM 90, KM 90 R, KM 100, KM 100 R, KM 110 R, KM 130, KM 130 R, SP 90, SP 90 T
Alternate Part Numbers:
4180-129-0903, 41801290903
Product Specifications
| L&S Part No. | 4180 129 0903 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 41801290903 |
| Unit of Sale | 1 |
| Applications | BR 500, BR 550, BR 600, BR 700, BR500, BR550, BR600, BR700, BT 130, BT 130 Z, BT130, BT130Z, FC 100, FC 110, FC 90, FC 95, FC100, FC110, FC90, FC95, FR 130 T, FR130T, FS 100, FS 100 R, FS 100 RX, FS 110, FS 110 R, FS 110 RX, FS 110 X, FS 120, FS 130, FS 130 R, FS 200, FS 250, FS 310, FS 83, FS 83 T, FS 87, FS 87 R, FS 90, FS 90 R, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS120, FS130, FS130R, FS200, FS250, FS310, FS83, FS83T, FS87, FS87R, FS90, FS90R, FT 100, FT100, HL 100, HL 90 K, HL 95, HL 95 K, HL100, HL100K, HL90, HL90K, HL95, HL95K, HT 100, HT 101, HT 130, HT 131, HT 73, HT100, HT101, HT130, HT131, HT73, KM 100, KM 100 R, KM 110 R, KM 130, KM 130 R, KM 90, KM 90 R, KM100, KM100R, KM110R, KM130, KM130R, KM90, KM90R, SP 90, SP 90 T, SP90, SP90T |
| Machine Type | Hedgetrimmers, Brushcutters, Backpack Blowers, Pole Pruners, Trimmers |
| Fits Brands | Stihl |
| Fits Models | FS83, FS83T | FS90, FS90R | FS100, FS110 | FS120, FS200, FS250 | FS130, FS130R | FS310 | BR500 | FR130T | HT73 | HT101 | HT130 | HT131 | KM90, KM90R | KM100, KM100R, KM110R | KM130, KM130R | FC 90, 95 | FC 100 | BT 130 | BT 130 Z | HL90K, HL90, HL95K | HL100, HL100K | BR550 | BR600 | BR700 | HL 95, HL 95 K |
