Description
Overview:

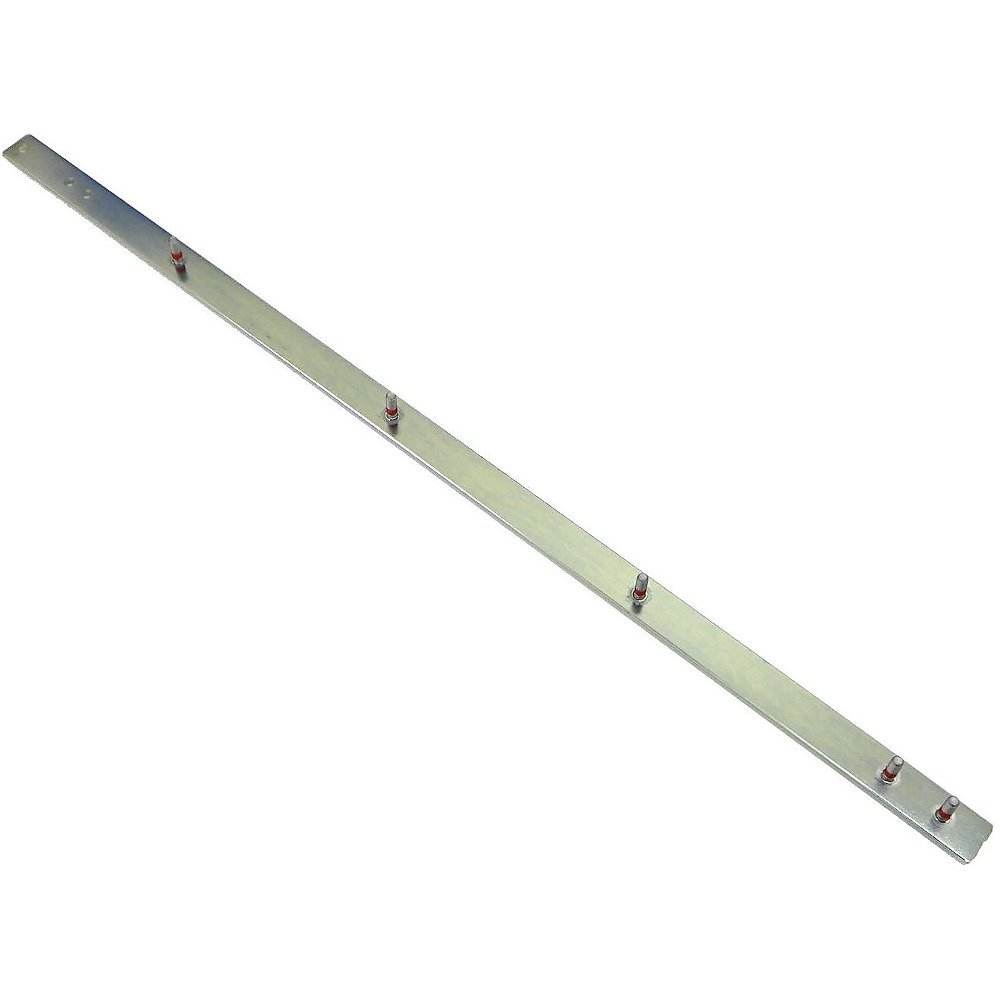

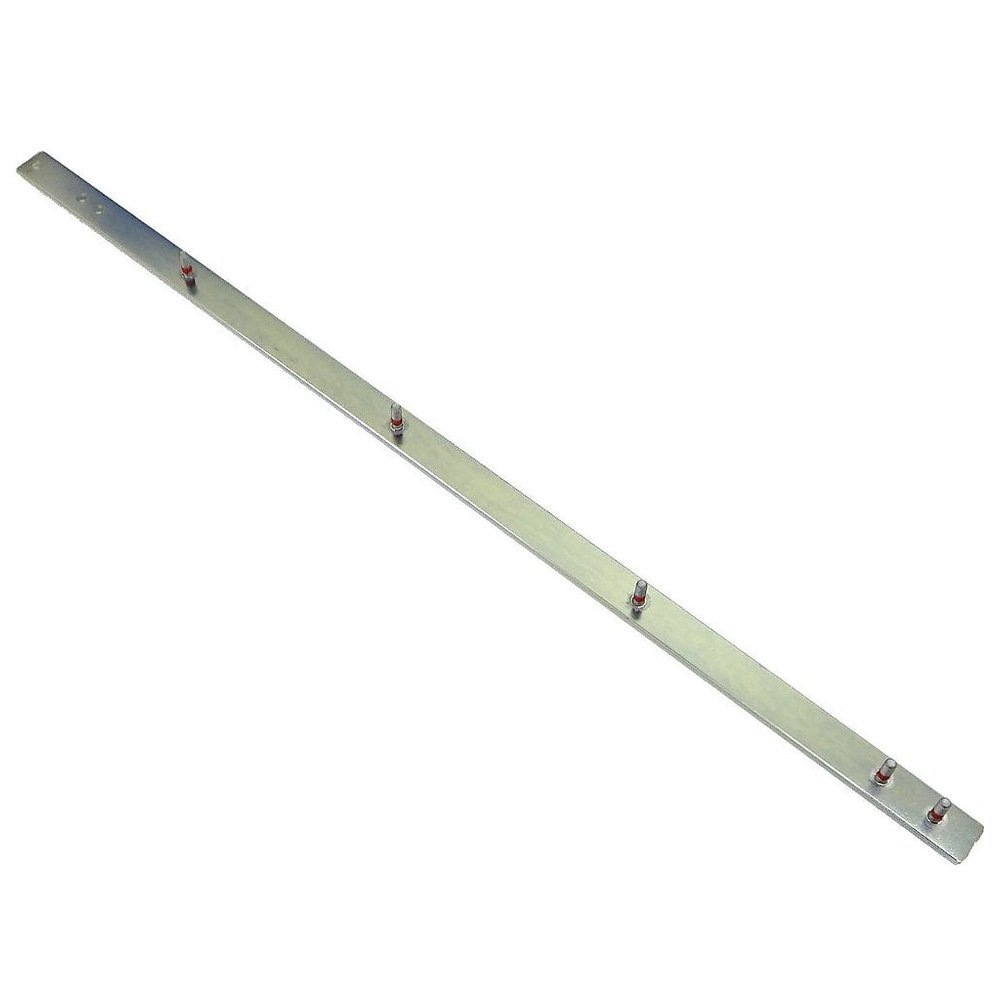

The Guide 500 mm / 20 inches for Stihl HL100 and HL100K is a genuine OEM component for long‐reach hedge trimmers. It provides controlled guidance and support to the cutting blades, helping to maintain straight, accurate cuts and smooth operation under load. Built from durable materials suited to outdoor use, it resists wear from repeated contact with the cutter set. At 500 mm (20 inches), it offers full coverage across the working length of compatible heads. Designed for professional grounds care and domestic users alike, this genuine Stihl part restores correct blade tracking and helps protect associated parts from excess stress. It is a direct-fit replacement that matches the original guide geometry on Stihl machines such as the HL100 and HL100K.
Key Features:
- Genuine Stihl OEM guide for exact fit and reliable compatibility
- 500 mm (20 inches) length for full cutter coverage and consistent support
- Helps keep blades aligned for cleaner, more precise trimming
- Smooth, wear-resistant contact surfaces to reduce friction and vibration
- Robust construction for long service life in demanding conditions
- Straightforward replacement using common hand tools
- Aids in protecting blades, gearbox and fasteners from premature wear
- Suitable for regular professional use and seasonal maintenance
Typical Applications:
Used on long‐reach hedge trimmers to guide the cutter set when shaping formal hedges, trimming tall or wide growth, and maintaining borders and topiary. Suitable for landscaping, estates, local authority grounds, commercial sites, and domestic gardens where consistent cut quality and dependable operation are required.
Also known as:
Hedge trimmer guide bar, cutter bar guide, hedgecutter guide plate, knife guide, blade guide rail, trimmer guide, support guide for cutter set, guide strip for hedge trimmer heads.
Fits Models:
FH-KM, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM
Alternate Part Numbers:
4230-740-6500, 42307406500
Product Specifications
| L&S Part No. | 4230 740 6500 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42307406500 |
| Unit of Sale | 1 |
| Applications | FH-KM, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | HL-KM 0 deg | HL-KM 30 deg | HL-KM 0-90 deg | HL-KM 0-135 deg | HL45 | HL73, HL73K | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 600 K | HEL 600 | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | HL 0° | HL 30° | HL 0° - 90° | HL 135° |
