Description
Overview:

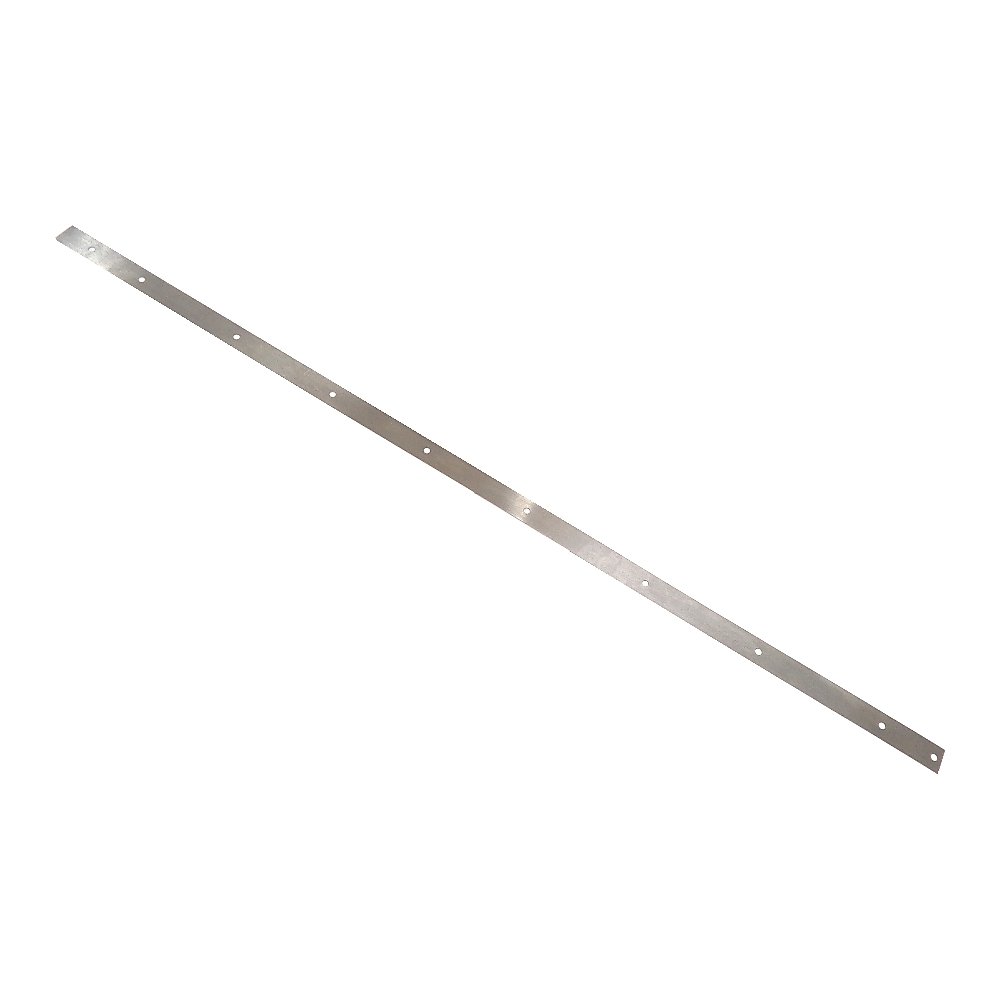

The Guide 500 mm / 20'' for Stihl FH, HL is a genuine Stihl replacement guide designed for long‐reach hedge trimmers in the FH and HL ranges, including popular models such as HL100 and HL95. Built from tough steel with a durable finish, it supports and aligns the cutter assembly so the blades track straight for clean, even results. This OEM guide maintains correct geometry, helping your hedge trimmer cut smoothly and reducing the risk of binding caused by a worn or bent guide. With its 500 mm (20 in) length, it suits a wide range of Stihl long‐reach heads and is a direct fit to the original mounting points. Genuine Stihl part for reliable service and consistent performance.
Key Features:
- Genuine Stihl OEM part for assured fit and quality
- 500 mm (20 in) guide length for effective reach and coverage
- Robust steel construction for durability and long service life
- Maintains precise blade alignment for clean, accurate trimming
- Direct replacement that fits using existing fixings
- Engineered to keep operation smooth and reduce uneven cuts
- Suitable for regular maintenance and demanding site work
- Matches original specification (4230 704 3500) for compatibility
Typical Applications:
Replacement of a worn, bent, or damaged hedge trimmer guide on Stihl FH and HL long‐reach tools. Ideal for landscaping, grounds maintenance, estate care, and professional gardening where accurate hedge shaping and consistent cut quality are needed. Helps restore smooth running after heavy use or impact and supports routine servicing to keep equipment dependable.
Also known as:
Hedge trimmer guide bar, blade guide, cutter bar guide, guide rail, alignment bar, guide plate, replacement guide for long‐reach hedge trimmers.
Fits Models:
FH-KM, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM
Alternate Part Numbers:
4230-704-3500, 42307043500
Product Specifications
| L&S Part No. | 4230 704 3500 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42307043500 |
| Unit of Sale | 1 |
| Applications | FH-KM, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL-KM0-135deg, HL-KM0-90deg, HL-KM0deg, HL-KM30deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | HL-KM 0 deg | HL-KM 30 deg | HL-KM 0-90 deg | HL-KM 0-135 deg | HL45 | HL73, HL73K | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 600 K | HEL 600 | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | HL 0° | HL 30° | HL 0° - 90° | HL 135° |
