Description
Overview:

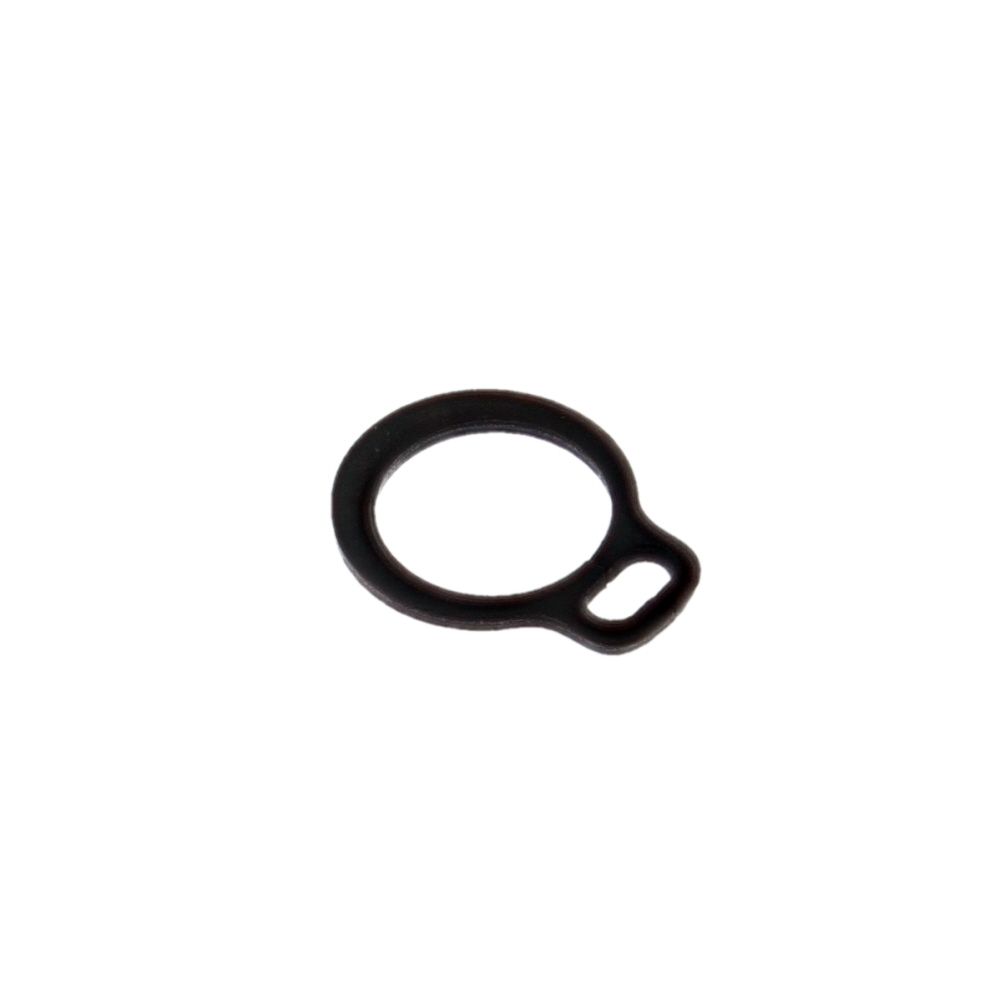

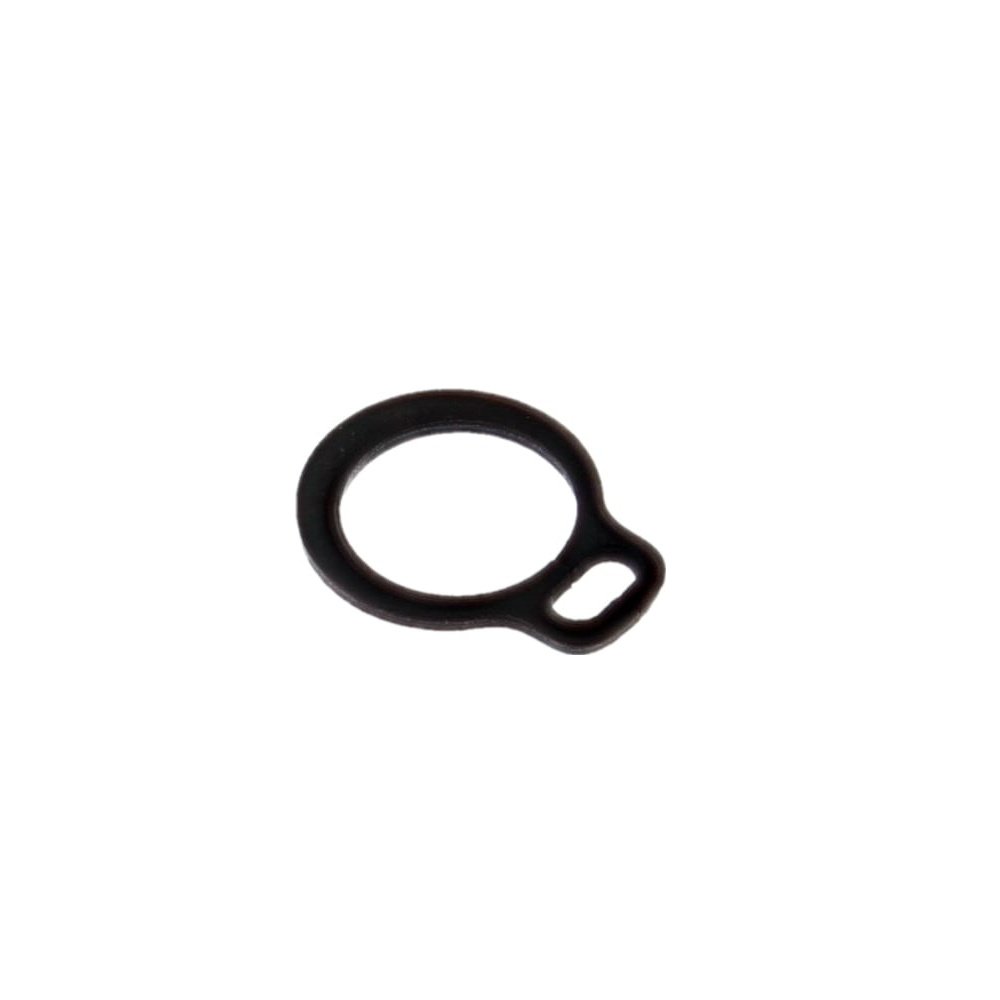

This External Circlip to DIN 471 is a Genuine Makita Part designed to locate and retain components on a shaft. Made from hardened spring steel for resilience and consistent clamping force, it prevents lateral movement of bearings, gears, collars and spacers in rotating assemblies. It is engineered for a precise fit on Makita power tools, including the GA7010C and GA9010C angle grinders, helping maintain smooth operation under vibration and load. As OEM No. 961055-9, it matches original factory specifications for thickness, groove engagement and radial tension, supporting reliable performance and long service life across a wide range of compatible Makita models in the workshop or on site.
Key Features:
- Genuine Makita part (OEM 961055-9) for assured compatibility and quality
- Manufactured to DIN 471 standard for external shaft circlips
- Hardened spring steel construction for strength, elasticity and wear resistance
- Secure axial retention to resist vibration and shock loads in heavy use
- Consistent fit in the groove for reliable seating and repeatable assembly
- Helps protect bearings and other components from drift and misalignment
- Suitable for many Makita tools sharing this circlip size across platforms
- Straightforward installation and removal with standard circlip pliers
- Durable finish to support corrosion and abrasion resistance in typical jobsite conditions
- Cost-effective maintenance item to restore tool reliability without major strip-downs
Typical Applications:
Retaining bearings, gears, pulleys, couplings and spacers on drive shafts and arbors in angle grinders, drills, hammer drills, mitre saws, band saws and sanders. Used wherever a positive axial stop is needed to prevent components from walking along a shaft during operation, transport or servicing.
Also known as:
External retaining ring, shaft circlip, external snap ring, C-clip for shafts, DIN 471 ring, shaft retaining ring. Common in power tool drivetrains and assemblies that require a removable shoulder without using threaded fasteners.
Fits Models:
63004, 6310, 9207SPB, 9207SPC, 9217SPC, 9741, BO6030, DA4000LR, DP4003, DP4011, DPB180RFE, DPB180RME, DPB180Z, DPB181RFE, DPB181RME, DPB181Z, GA7010C, GA9010C, HP1500, HP1501, HP1510, HP1620, HP1621, HP1640, HP1641, HP2030, HP2031, HP2032, HP2033, HP2040, HP2041, HR2010, HR2432, HR2811F, HR2811FT, LF1000, LF1000 260mm, LS1016, LS1016L, LS1216, LS1216L, SA7000C, SR2100
Product Specifications
| L&S Part No. | 961055-9 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Makita |
| OEM No. | 961055-9 |
| Unit of Sale | 1 |
| Applications | 63004, 6310, 9207SPB, 9207SPC, 9217SPC, 9741, BO6030, DA4000LR, DP4003, DP4011, DPB180RFE, DPB180RME, DPB180Z, DPB181RFE, DPB181RME, DPB181Z, GA7010C, GA9010C, HP1500, HP1501, HP1510, HP1620, HP1621, HP1640, HP1641, HP2030, HP2031, HP2032, HP2033, HP2040, HP2041, HR2010, HR2432, HR2811F, HR2811FT, LF1000, LF1000 260mm, LS1016, LS1016L, LS1216, LS1216L, SA7000C, SR2100 |
| Machine Type | Angle Grinder |
| Fits Brands | Makita |
| Fits Models | 6310 | DP4003 | HP1500 | HP1501 | HP1510 | HP1620 | HP1621 | HP1640 | HP1641 | HP2030 | HP2031 | HP2032 | HP2040 | HP2041 | DA4000LR | HP2033 | 63004 | HR2010 | HR2432 | HR2811F | HR2811FT | DP4011 | GA7010C | GA9010C | SA7000C | LS1016 | LS1016L | LS1216 | LS1216L | SR2100 | LF1000 260mm | DPB180RME | DPB181RFE | DPB180Z | DPB181RME | DPB181Z | DPB180RFE | 9207SPB | 9207SPC | 9217SPC | 9741 | BO6030 | SA7000C |
