Description
Overview:

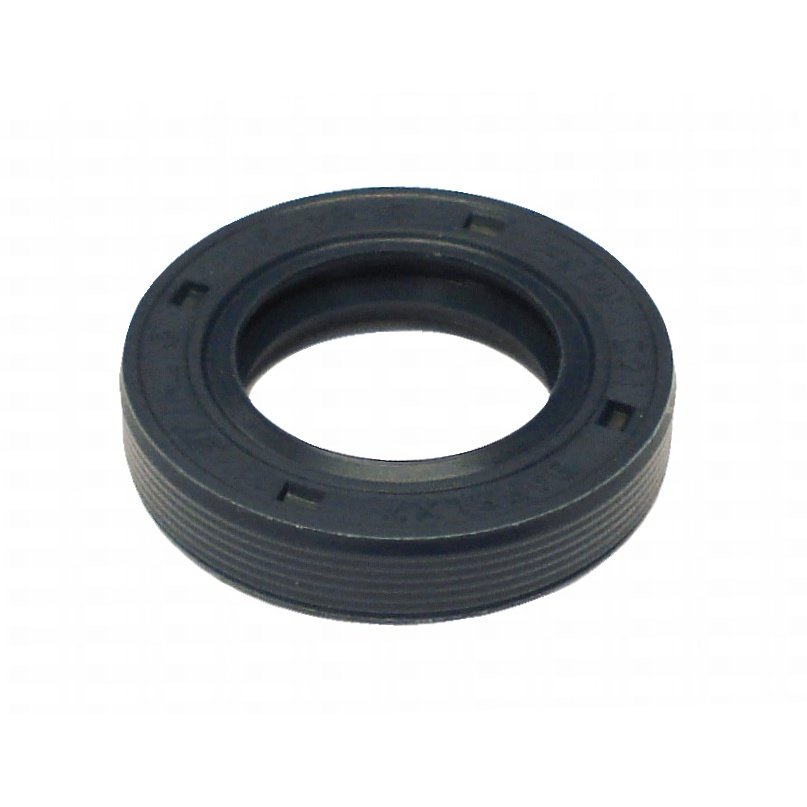

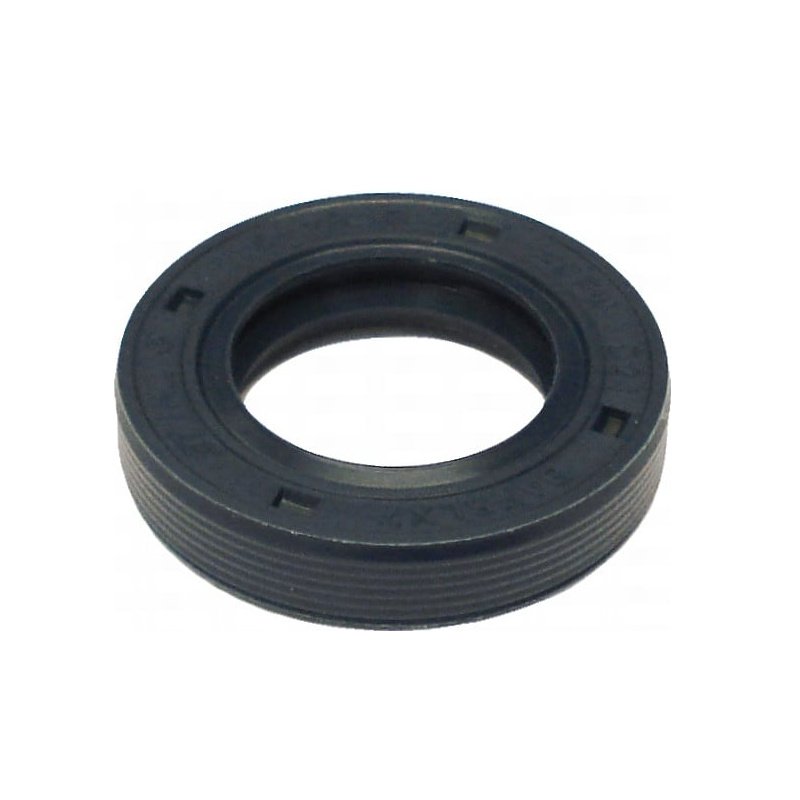

This genuine Stihl oil seal (15 x 25 x 5 mm) is a black rubber rotary shaft seal designed to prevent oil leakage and keep contaminants out of engine internals. It is commonly used on crankshaft and auxiliary shafts in two‐stroke handheld machinery, helping maintain correct crankcase pressure and reliable lubrication. Built for long service life, it supports dependable performance in demanding conditions. Suitable for a wide range of Stihl equipment, including chainsaws such as the 017 and MS 311. Size: 15 x 25 x 5 mm (0.59 x 0.98 x 0.20 in). As a genuine OEM part, it offers a precise fit and dependable sealing, making it a sound choice for routine maintenance or repairs.
Key Features:
- Genuine Stihl OEM part for accurate fit and reliable sealing
- Dimensions: 15 x 25 x 5 mm (0.59 x 0.98 x 0.20 in) for correct ID/OD/thickness matching
- Durable rubber construction resists wear and engine vibration
- Helps prevent oil loss and air leaks that affect starting and idle stability
- Protects bearings and internal components from dirt and contamination
- Supports consistent engine performance and longevity
- Suitable for many Stihl chainsaws, brushcutters, blowers and sprayers
- Straightforward press-in replacement when servicing or rebuilding engines
Typical Applications:
Replacement of worn or leaking crankshaft-side or auxiliary shaft oil seals during servicing of Stihl two-stroke machines. Ideal when you notice oil residue near the clutch, flywheel, or housing, experience erratic idle, poor starting, or during top-end rebuilds and preventative maintenance to restore proper crankcase sealing and lubrication.
Also known as:
Crankshaft seal, rotary shaft seal, radial lip seal, crank seal, shaft seal, oil retaining seal, rubber oil seal, engine oil seal, oil gasket, 15x25x5 oil seal.
Fits Models:
017, 018, 019 T, 019T, 021, 023, 025, 028, 028 AV, 028AV, BR 500, BR500, BR 550, BR550, BR 600, BR600, BR 700, BR700, FR 230, FR230, FR 230 T, FR230T, FR 410 C, FR410C, FR 460 TC, FR460TC, FS 230, FS230, FS 240, FS240, FS 260, FS260, FS 360 C, FS360C, FS 410 C, FS410C, FS 460 C, FS460C, FS 460 RC, FS460RC, FS 490 C, FS490C, FS 510 C, FS510C, FS 560 C, FS560C, MS 162, MS162, MS 162 C, MS162C, MS 170, MS170, MS 170 C, MS170C, MS 171, MS171, MS 171 C, MS171C, MS 172, MS172, MS 172 C, MS172C, MS 180, MS180, MS 180 C, MS180C, MS 181, MS181, MS 181 C, MS181C, MS 182, MS182, MS 182 C, MS182C, MS 190 T, MS190T, MS 191 T, MS191T, MS 210, MS210, MS 210 C, MS210C, MS 211, MS211, MS 211 C, MS211C, MS 230, MS230, MS 230 C, MS230C, MS 250, MS250, MS 250 C, MS250C, MS 270, MS270, MS 270 C, MS270C, MS 280, MS280, MS 280 C, MS280C, MS 311, MS311, MS 391, MS391, SR 430, SR430, SR 430-Z, SR430-Z, SR430Z, SR 440, SR440, SR 450, SR450, SR 450-Z, SR450-Z, SR450Z
Alternate Part Numbers:
9639-003-1585, 9639 003 1584, 96390031585, 96390031584
Product Specifications
| L&S Part No. | 9639 003 1585 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 96390031585 |
| Unit of Sale | 1 |
| Applications | 017, 018, 019 T, 019T, 021, 023, 025, 028, 028 AV, 028AV, BR 500, BR 550, BR 600, BR 700, BR500, BR550, BR600, BR700, FR 230, FR 230 T, FR 410 C, FR 460 TC, FR230, FR230T, FR410C, FR460TC, FS 230, FS 240, FS 260, FS 360 C, FS 410 C, FS 460 C, FS 460 RC, FS 490 C, FS 510 C, FS 560 C, FS230, FS240, FS260, FS360C, FS410C, FS460C, FS460RC, FS490C, FS510C, FS560C, MS 162, MS 162 C, MS 170, MS 170 C, MS 171, MS 171 C, MS 172, MS 172 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 182, MS 182 C, MS 190 T, MS 191 T, MS 210, MS 210 C, MS 211, MS 211 C, MS 230, MS 230 C, MS 250, MS 250 C, MS 270, MS 270 C, MS 280, MS 280 C, MS 311, MS 391, MS162, MS162 / MS162C, MS162C, MS170, MS170C, MS171, MS171C, MS172, MS172 / MS172C, MS172C, MS180, MS180C, MS181, MS181C, MS182, MS182 / MS182C, MS182C, MS190T, MS191T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS250, MS250C, MS270, MS270C, MS280, MS280C, MS311, MS391, SR 430, SR 430-Z, SR 440, SR 450, SR 450-Z, SR430, SR430-Z, SR430Z, SR440, SR450, SR450-Z, SR450Z |
| Machine Type | Backpack Blowers, Brushcutters, Chainsaws, Mist Blowers |
| Fits Brands | Stihl |
| Fits Models | MS170, MS170C | MS180, MS180C | MS230, MS230C | MS250, MS250C | MS270, MS270C, MS280, MS280C | 028, 028AV | MS171, MS171C | MS181, MS181C | MS211, MS211C | FS240, FS260 | FS360C FS410C | FS460C, FS460RC | BR500 | FS490C, FS510C, FS560C | FR230, FR230T | FR410C, FR460TC | 017 | 018 | 019T | 021, 023, 025 | MS311 | MS391 | FS230 | MS190T | MS191T | SR 430, SR 450 | SR 430-Z | SR 440 | SR 450-Z | BR550 | BR600 | BR700 | MS162 / MS162C | MS172 / MS172C | MS182 / MS182C | MS212 / MS212C | FS361C | FS411 C-EM | FS461 C-EM | FS491 C-EM | FS561 C-EM | FS461 C-EML |
