Description
Overview:

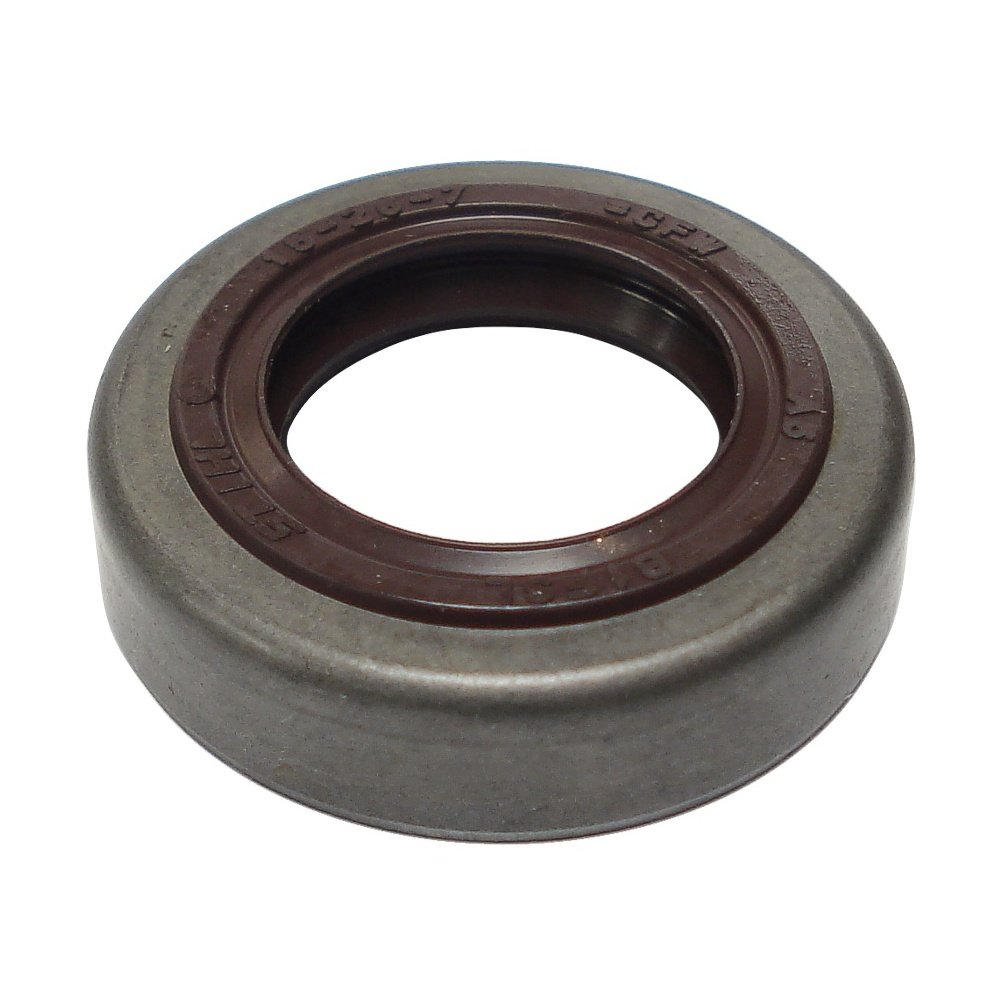

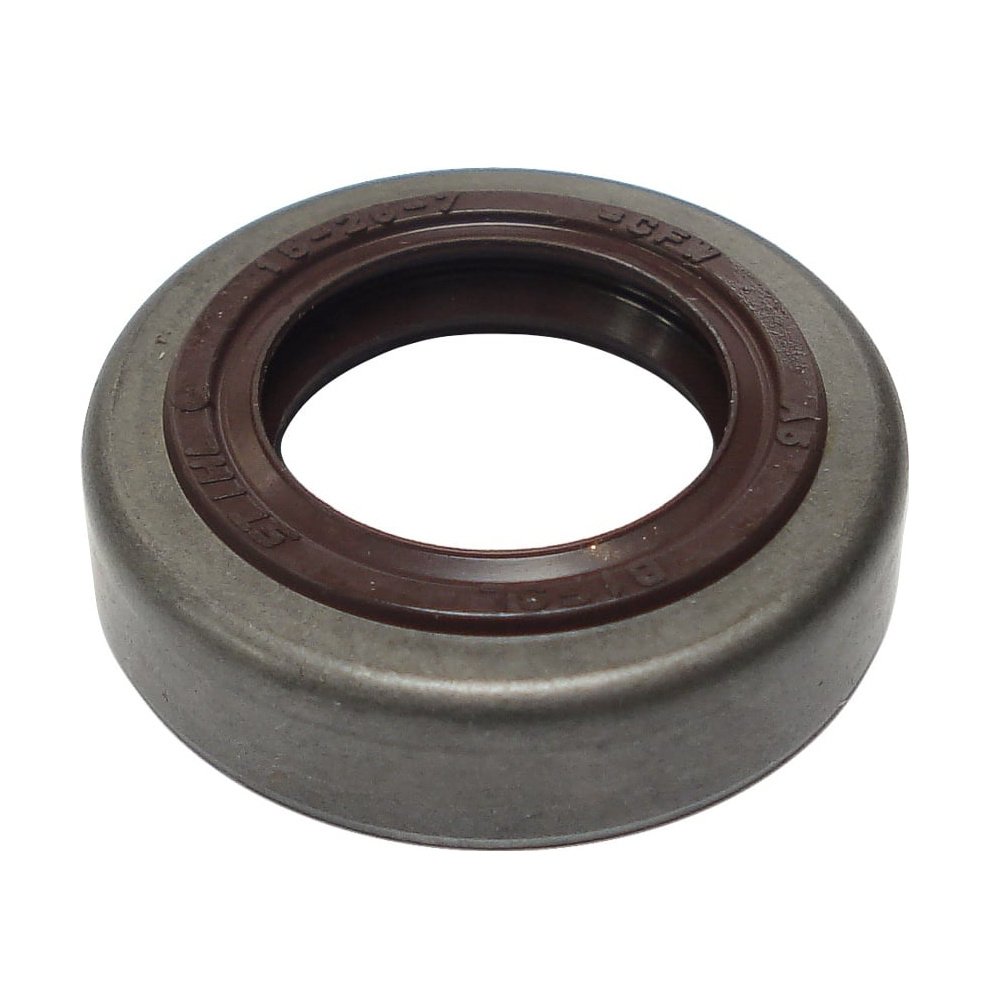

This crankcase-side oil seal is a Genuine Stihl part for professional cut-off saws, including the TS 410 and TS 420. It is designed to seal the crankshaft where it passes through the crankcase, helping to prevent oil and fuel/air leakage and to maintain correct crankcase pressure. The seal is made from a durable, oil- and heat-resistant elastomer with rigid reinforcement for stability and long service life in dusty, high‐load environments. A precise fit ensures reliable seating and consistent performance. It is a practical replacement during routine servicing or an engine rebuild, helping to restore smooth running, easy starting, and reduced seepage. Stihl reference: 9630 951 1696.
Key Features:
- Genuine Stihl part for reliable fit and compatibility
- Crankcase-side seal for the crankshaft to limit leaks
- Helps maintain crankcase sealing for steady idle and performance
- Oil- and fuel-resistant elastomer with reinforced construction for durability
- Accurate dimensions to Stihl specifications for easier fitting
- Supports engine efficiency and reduces contamination of the drive area
- Suitable for regular maintenance or full overhauls
- Built for tough use in construction and landscaping environments
Typical Applications:
Used when servicing or rebuilding Stihl disc cutters to fix or prevent oil seepage at the crankcase side. Ideal for restoring proper sealing on machines exposed to dust, slurry, and heat during tasks such as concrete cutting, asphalt work, kerb and paving jobs, utilities, and site maintenance. Helps address symptoms like hard starting, erratic idle, or visible oil traces around the crankshaft area.
Also known as:
Crankshaft seal, crankcase oil seal, rotary shaft seal, shaft oil seal, lip seal, seal ring, engine oil seal. These terms refer to the same type of component that seals the rotating crankshaft where it exits the crankcase, protecting against leakage and keeping the engine running efficiently.
Fits Models:
TS 410, TS 420, TS 440, TS 480i, TS 500i
Alternate Part Numbers:
9630-951-1696, 96309511696
Product Specifications
| L&S Part No. | 9630 951 1696 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 96309511696 |
| Unit of Sale | 1 |
| Size | 15 x 26 x 7mm |
| Applications | TS 410, TS 420, TS 440, TS 480i, TS 500i, TS410, TS420, TS440, TS480i, TS500i |
| Machine Type | Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS410, TS420 | TS440 | TS480i, TS500i |
