Description
Overview:

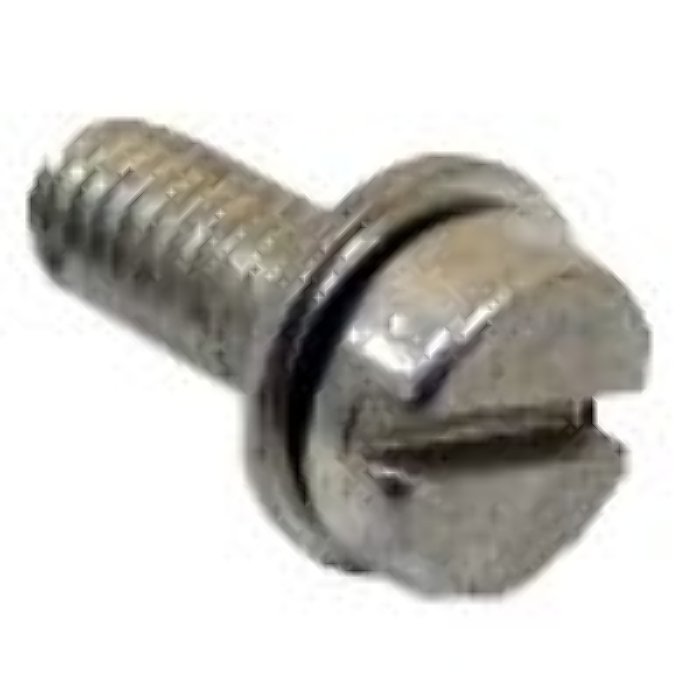

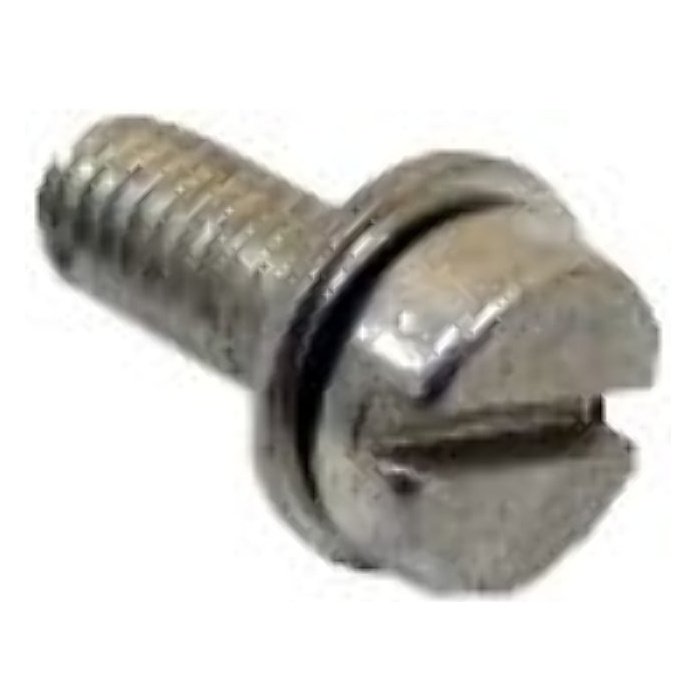

The Pan Head Screw M4x10 is a genuine Stihl fastening designed for reliable service across a wide range of Stihl machines, including chainsaws and brushcutters such as the 028 and FS90. Manufactured from quality steel with a protective finish, it offers dependable strength for securing metal and plastic components. Its pan head provides a broad bearing surface to help prevent damage to housings and covers, while the precise M4 diameter and 10 mm length support a snug, repeatable fit. This OEM screw helps maintain structural integrity, reduces the risk of loosening under vibration, and supports correct alignment of assemblies. It is suitable for routine maintenance and repairs where an M4x10 pan head screw is specified by Stihl. Genuine Stihl part number: 9047 319 0650.
Key Features:
- Genuine Stihl part for assured fit and compatibility with listed models
- Pan head profile spreads load to reduce marking on covers and shrouds
- M4 x 10 mm sizing for common small assemblies on Stihl equipment
- Durable steel construction with protective finish for service life
- Suitable for areas subject to vibration, helping maintain clamp force
- Consistent thread quality for smooth installation and removal
- Compact length minimises risk of bottoming out in blind holes
- Versatile use across saws, blowers, sprayers, and brushcutters
- Supports safe maintenance by replacing worn or missing fasteners
- OEM specification helps maintain machine reliability and performance
Typical Applications:
Used to fasten covers, housings, brackets, guards, handle components, and other small assemblies on Stihl equipment. Ideal for securing plastic shrouds to metal frames, attaching control panels, and fixing protective covers where a low-profile pan head and an M4 x 10 mm fastener are specified. Suitable for routine servicing and restoration work.
Also known as:
Pan head machine screw, M4 x 10 mm pan screw, M4x10 OEM screw, M4 pan bolt, cross-recess pan screw, equipment fastening screw, small assembly screw for petrol tools.
Fits Models:
015, 020, 020T, 028, 028AV, 032, 038, 048, 056, BG17, BG60, BG61, FS150, FS151, FS40, FS50, FS51, FS60, FS61, FS65, FS75, FS80, FS85, FS90, FS90R, MS200, MS200T, MS380, SG17, SG17L
Alternate Part Numbers:
9047-319-0650, 90473190650
Product Specifications
| L&S Part No. | 9047 319 0650 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90473190650 |
| Unit of Sale | 1 |
| Applications | 015, 020, 020T, 028, 028AV, 032, 038, 048, 056, BG17, BG60, BG61, FS150, FS151, FS40, FS50, FS51, FS60, FS61, FS65, FS75, FS80, FS85, FS90, FS90R, MS200, MS200T, MS380, SG17, SG17L |
| Machine Type | Brushcutters, Blower/Shredders, Chainsaws |
| Fits Models | MS200, MS200T | 028, 028AV | MS380 | FS40, FS50 | FS75, FS80, FS85 | FS90, FS90R | BG60, BG61 | FS60 | FS61 | FS65 | FS80 | FS150, FS151 | 015 | 020, 020T | 032 | 038 | 048 | 056 | SG17, SG17L |
