Description
Overview:

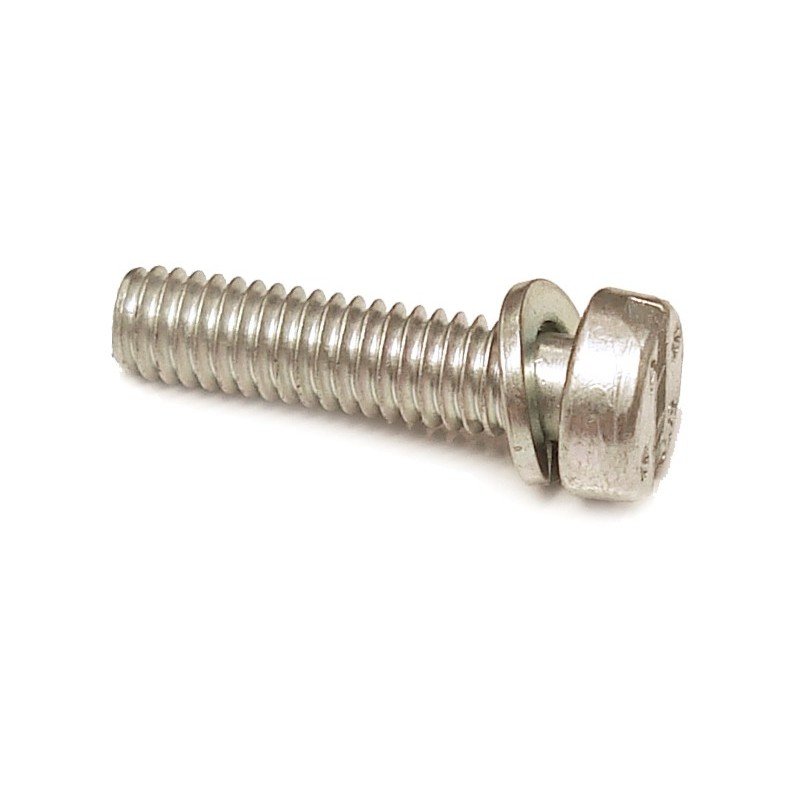

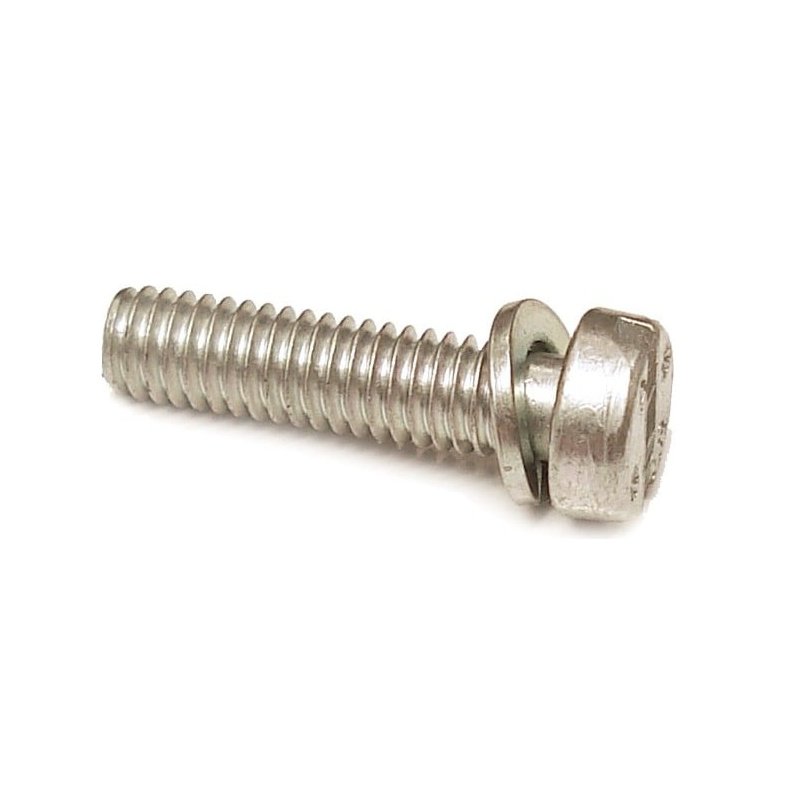

This Pan Head Screw M4x16 is a Genuine Stihl part designed for secure, repeatable fastening across a wide range of Stihl machines. Manufactured from durable steel, it provides a reliable hold in assemblies subject to vibration and regular maintenance. The metric size M4 x 16 mm (4 mm diameter x 16 mm length) suits fine assembly work where a tidy, low-profile pan head is preferred. Commonly used on classic and professional equipment, it is an exact-fit replacement for original hardware on models such as the 030 and 031, helping maintain correct clearances and finish. Supplied to Stihl's OEM specification under part number 9048 319 0680, it supports accurate servicing and keeps your equipment working as intended.
Key Features:
- Genuine Stihl OEM screw for assured compatibility and fit
- Size M4 x 16 mm (4 mm diameter, 16 mm length) for precise assembly
- Pan head provides a broad bearing surface and neat, low-profile finish
- Robust steel construction for dependable fastening under vibration
- Clean, accurate threads for secure grip and consistent tightening
- Suitable for a wide range of Stihl saws and cleaning equipment
- Easy to install with standard hand tools
- OEM reference 9048 319 0680; alternates 9048-319-0680, 90483190680
Typical Applications:
Used for securing covers, housings, guards, brackets, and small sub-assemblies on Stihl equipment. Ideal for reattaching shrouds, handle components, fan or pump covers, electrical plates, and general hardware during routine servicing and rebuilds. Suits workshop maintenance, on-site repairs, and scheduled overhauls where a dependable M4 pan head machine screw is required.
Also known as:
Machine screw, M4 pan head screw, M4x16 screw, pan head bolt, metric pan screw, domed head machine screw, metric fastener, Stihl hardware screw.
Fits Models:
030, 031, 041, 041AV, 045, 056, 070, 090, 090G, E15, E30, MS720, RE500W, RE521, RE530W, RE551, RE551 PLUS, RE551PLUS, RE560W, RE581, RE661, RE961, SE100, SE200, SE201, SE202
Alternate Part Numbers:
9048-319-0680, 90483190680
Product Specifications
| L&S Part No. | 9048 319 0680 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90483190680 |
| Unit of Sale | 1 |
| Applications | 030, 031, 041, 041AV, 045, 056, 070, 090, 090G, E15, E30, MS720, RE500W, RE521, RE530W, RE551, RE551 PLUS, RE551PLUS, RE560W, RE581, RE661, RE961, SE100, SE200, SE201, SE202 |
| Machine Type | Chainsaws, Pressure Washers, Electric Chainsaws |
| Fits Models | 030, 031 | MS720 | 041 | 056 | 070 | 090, 090G | E15 | E30 | 045 | RE500W, RE530W, RE560W | RE521, RE551, RE581, RE551 PLUS | RE661, RE961 | SE100, SE200, SE201, SE202 |
