Description
Overview:

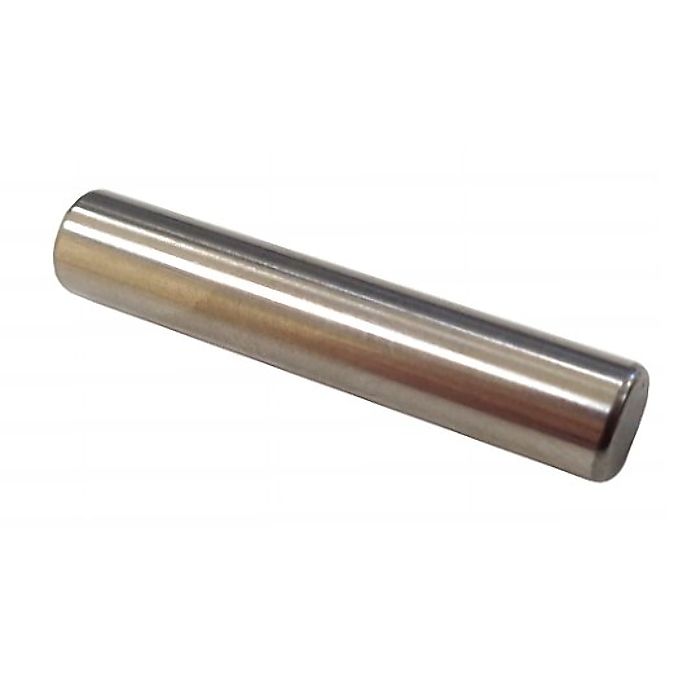

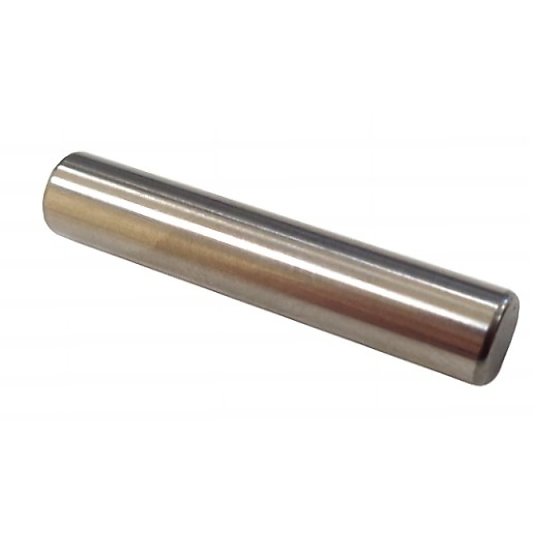

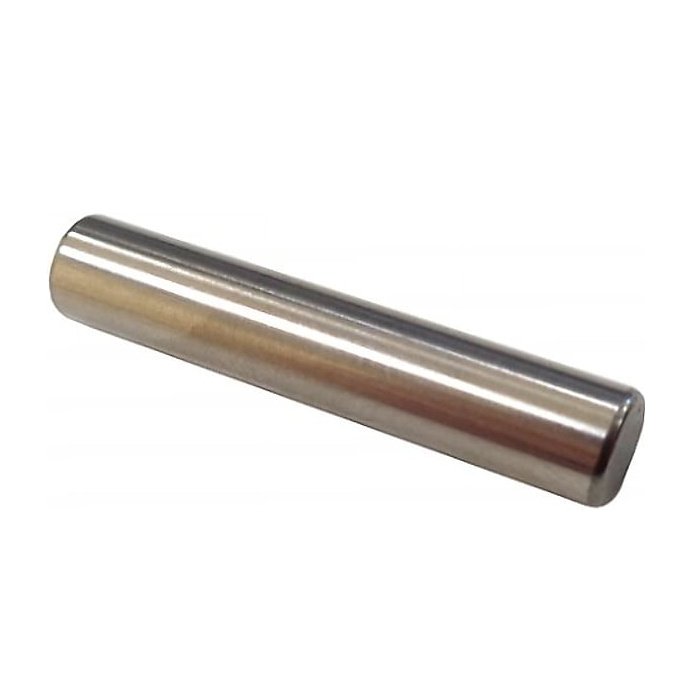

The Pin 5x26.5 for Stihl FR130T, KM100 Kombi is a genuine Stihl steel fixing used to secure and align components in Stihl handheld machines. Built from durable metal, it helps maintain correct assembly in trimmers, brushcutters, hedge trimmers, pole pruners, Kombi engines and earth augers. Its precise dimensions are 5 mm diameter by 26.5 mm length (0.20 in x 1.04 in), ensuring a consistent, factory-spec fit. This small but critical part restores reliability where an original pin has worn, bent or gone missing, supporting smooth operation and reducing play in moving joints. Suitable for models such as FR130T and KM100, it is widely used across the FS, HT, HL, FC and BT ranges. Genuine Stihl part for dependable fit and performance.
Key Features:
- Genuine Stihl part for assured compatibility and reliability
- Precise size: 5 mm x 26.5 mm (0.20 in x 1.04 in) for accurate, repeatable fit
- Robust steel construction to withstand routine vibration and load
- Helps keep shafts, linkages and housings correctly aligned
- Direct replacement for worn or damaged pins; no modification required
- Simple to fit with basic hand tools (e.g. pin punch and hammer)
- Supports smooth running, reducing looseness and premature wear
- Suitable for both professional and domestic maintenance schedules
Typical Applications:
Used to secure and locate parts within gearheads, handles, housings and linkage points on Stihl trimmers, brushcutters, hedge trimmers, pole pruners and Kombi units. Ideal for routine servicing, rebuilds or repairs where the original 5x26.5 pin has been lost, worn or deformed, helping restore alignment, reduce vibration and maintain safe, efficient operation.
Also known as:
Dowel pin 5x26.5, location dowel 5 mm, fixing dowel 5 mm, retaining dowel, fastening pin 5 x 26.5, steel alignment pin, machinery locating pin, Stihl 5 mm dowel, 5x26.5 mm fastener.
Fits Models:
BT 130, BT 130 Z, BT130, BT130Z, FC 100, FC 90, FC 95, FC100, FC90, FC95, FR 130 T, FR130T, FS 100, FS 100 R, FS 100 RX, FS 110, FS 110 R, FS 110 RX, FS 110 X, FS 120, FS 130, FS 130 R, FS 200, FS 250, FS 310, FS 83, FS 83 T, FS 87, FS 87 R, FS 90, FS 90 R, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS120, FS130, FS130R, FS200, FS250, FS310, FS83, FS83T, FS87, FS87R, FS90, FS90R, HL 100, HL 100 K, HL 90, HL 90 K, HL 95, HL 95 K, HL100, HL100K, HL90, HL90K, HL95, HL95K, HT 101, HT 130, HT 131, HT 73, HT101, HT130, HT131, HT73, KM 100, KM 100 Kombi, KM 100 R, KM 110 R, KM 130, KM 130 R, KM 90, KM 90 R, KM100, KM100Kombi, KM100R, KM110R, KM130, KM130R, KM90, KM90R, SP 90, SP 90 T, SP90, SP90T
Alternate Part Numbers:
4180-038-0803, 41800380803
Product Specifications
| L&S Part No. | 4180 038 0803 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 41800380803 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters, Trimmers, Pole Pruners |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part ensures compatibility and reliability - Precise dimensions: 5 mm diameter x 26.5 mm length - Robust steel construction withstands vibration and load - Suitable for Stihl trimmers, brushcutters, and more - Direct replacement for worn or damaged pins |
| Fits Models | FS83, FS83T | FS90, FS90R | FS100, FS110 | FS120, FS200, FS250 | FS130, FS130R | FS310 | FR130T | HT73 | HT101 | HT130 | HT131 | KM90, KM90R | KM100, KM100R, KM110R | KM130, KM130R | FC 90, 95 | FC 100 | BT 130 | BT 130 Z | HL90K, HL90, HL95K | HL100, HL100K | HL 95, HL 95 K |
