Description
Overview:

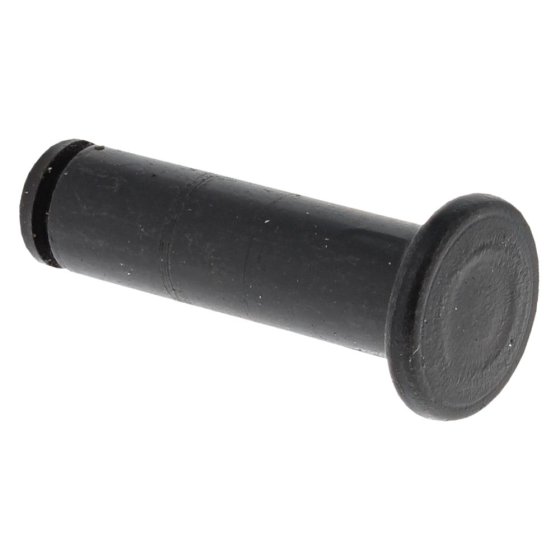

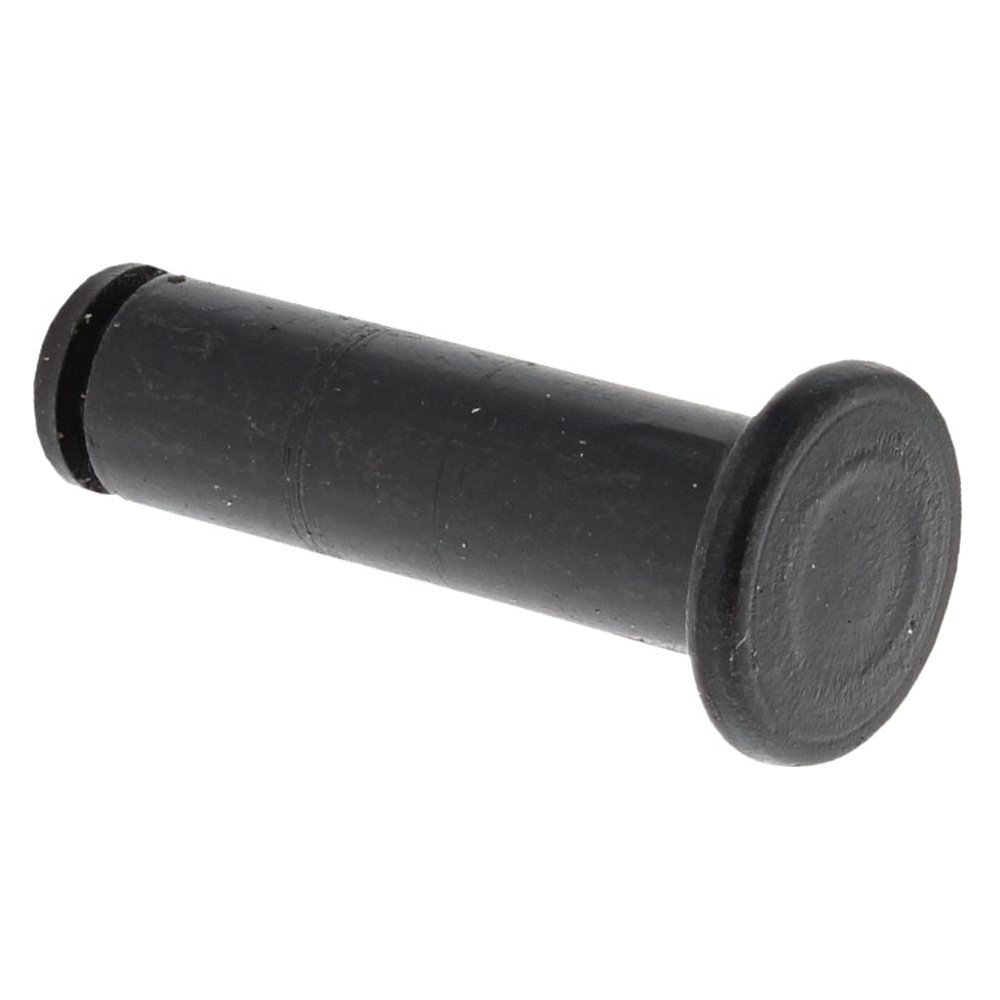

This Genuine Husqvarna pivot pin is a small but critical hardware component used at key pivot points in Husqvarna petrol chainsaws, including models 242 and 246. Precision‐machined from durable steel with a protective finish, it restores smooth, accurate movement in the relevant linkage or mechanism when the original pin becomes worn, bent, or lost. By maintaining correct alignment and motion at the pivot, it helps safeguard safe operation and extends the service life of surrounding parts. Designed to OEM specifications for the listed saws, it provides the correct dimensions and thread to fit without modification. Use it during routine servicing or repairs to keep your saw operating reliably under daily professional use or occasional DIY work.
Key Features:
- Genuine Husqvarna part for assured fit and performance across listed models
- Robust steel construction for high wear resistance and long service life
- Protective surface finish helps resist corrosion in wet and resinous cutting conditions
- Restores precise movement at the pivot point to support safe, predictable operation
- Direct replacement for the original pin; no modifications required on compatible machines
- Supports preventative maintenance by replacing loose, worn, or damaged hardware
- Sized to OEM tolerances to minimise play and reduce knock or uneven wear
- Suitable for regular service schedules in professional and domestic environments
Typical Applications:
Used during chainsaw maintenance and rebuilds where a pivot point shows wear or damage, such as side cover or linkage assemblies. Ideal when addressing excessive play, misalignment, or rough movement, and whenever replacing associated moving parts to maintain smooth, consistent operation.
Also known as:
Often referred to as a brake pivot, swivel pin, fulcrum pin, shoulder screw, linkage pin, or pivot fastener. These terms describe the same type of component used to provide a controlled rotation point within the assembly.
Fits Models:
242, 246, 254, 257, 261, 262XP, 266, 268, 272XP, 281, 281XP, 288, 288XP, 3120, 3120XP, 395XP, 40, 42, 45, 49, 51, 55, 55 Rancher, 61, 66
Alternate Part Numbers:
503 80 27-01, 503802701
Product Specifications
| L&S Part No. | 503 80 27 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503802701 |
| Unit of Sale | 1 |
| Applications | 242, 246, 254, 257, 261, 262XP, 266, 268, 272XP, 281, 281XP, 288, 288XP, 3120, 3120XP, 395XP, 40, 42, 45, 49, 51, 55, 55 Rancher, 61, 66 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Fits Models | 242 | 246 | 254 | 257 | 261 | 262XP | 266 | 268 | 281 | 281XP | 288 | 288XP | 3120 | 3120XP | 395XP | 40 | 42 | 45 | 49 | 51 | 55 | 55 RANCHER | 61 | 66 |
