Description
Overview:

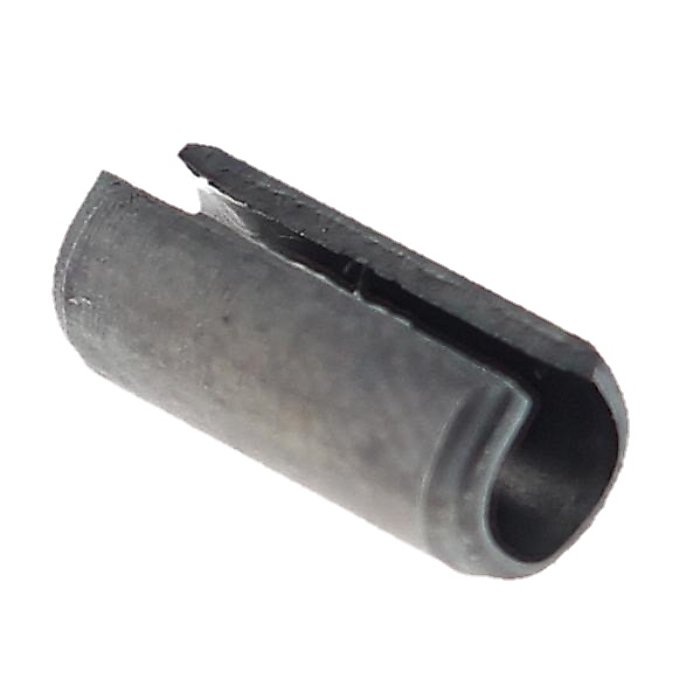

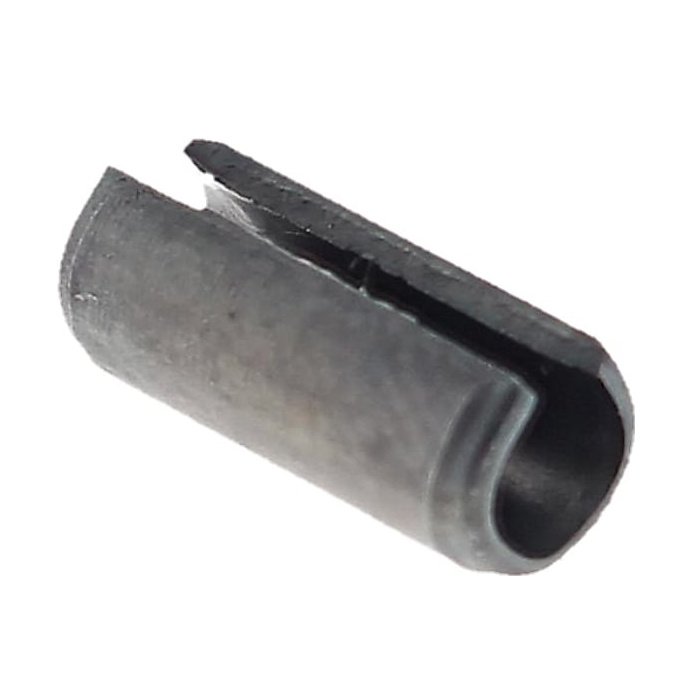

The Roll Pin 5x12 is a small but critical fastener used to secure components in Stihl handheld machines, including brushcutters such as the FS72 and FS74. Made from durable steel, it uses a spring-like interference fit to lock parts together and resist vibration, helping to keep shafts, collars, and housings aligned during use. This genuine Stihl part (9380 620 2570) is sized at 5 mm x 12 mm (0.20 in x 0.47 in) for a precise fit in specified assemblies. It is suitable for routine maintenance and repairs where a worn or missing pin could lead to play, noise, or premature wear. Built for reliability, it offers a straightforward replacement to restore correct operation across compatible Stihl equipment.
Key Features:
- Genuine Stihl OEM part for assured compatibility and fit
- Dimensions: 5 mm x 12 mm (0.20 in x 0.47 in) for correct seating in designated bores
- Robust steel construction resists shear loads and vibration in demanding use
- Spring-style roll pin design maintains constant tension to prevent loosening
- Helps eliminate component movement, reducing wear and misalignment
- Clean, simple fitting with the correct punch or drift; minimal downtime
- Suitable for professional users and DIY maintenance alike
- Compact spare that is practical to keep on hand for scheduled servicing
Typical Applications:
Used to secure hubs, gears, levers, collars, and other rotating or locating components on Stihl brushcutters, hedge trimmers, blowers, augers, edgers, and clearing saws. Ideal when overhauling gearheads, clutch areas, or control linkages where a solid, vibration-resistant fastening is required. Replaces worn or missing pins to restore stability and smooth running.
Also known as:
Roll spring pin, spring pin, tension pin, dowel pin (spring type), slotted pin. These terms refer to the same style of resilient, split steel pin used for interference-fit retention in machinery assemblies.
Fits Models:
BG72, BR106, BT308, BT360, FC70, FC70C, FC72, FR106, FR108, FR125, FR135, FR145, FS48, FS52, FS56, FS56C, FS56R, FS62, FS66, FS72, FS74, FS76, FS81, FS86, FS88, FS106, FS108, HS72, HS74, HS76
Alternate Part Numbers:
9380-620-2570, 93806202570
Product Specifications
| L&S Part No. | 9380 620 2570 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93806202570 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl OEM part ensures compatibility and fit - Dimensions: 5 mm x 12 mm for precise seating - Steel construction resists shear loads and vibration - Spring-style design maintains tension to prevent loosening - Fits Stihl models including FS72, FS74, and more |
| Fits Models | FS56, FS56C, FS56R | HS72, HS74, HS76 | BG72 | BR106 | FS48, FS52, FS56 | FS62, FS66 | FS72, FS74, FS76 | FS81, FS86 | FS88 | FS106 | FS108 | FR106 | FR125, FR135, FR145 | FR108 | FC 70, FC 70 C | FC 72 | BT 360 | BT 308 |
