Description
Overview:

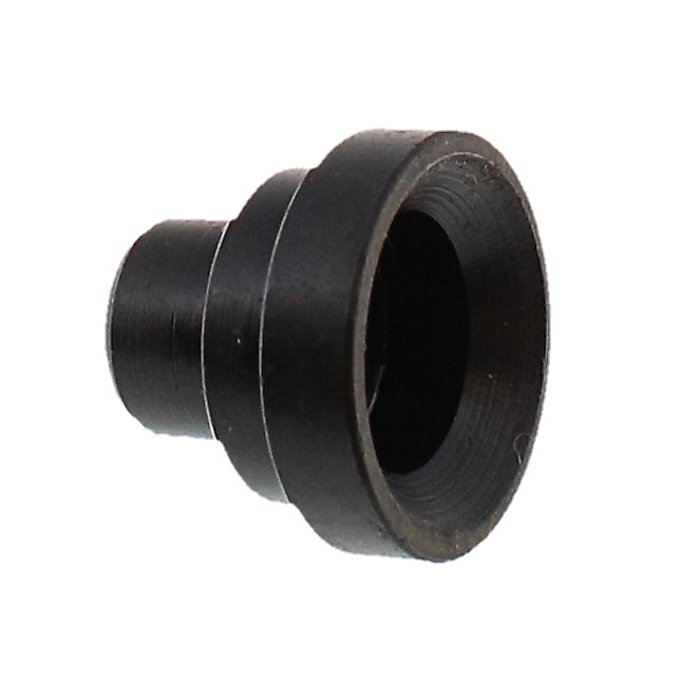

This Shaft Pivot is a genuine Husqvarna replacement part designed for many Husqvarna chainsaws, including the 242 and 257. Made from precision‐machined steel, it replaces a worn or damaged pivot to restore the smooth movement of linked mechanisms within the saw. Correct pivot action helps maintain reliable control response and prevents excess wear on adjoining parts. The component is built to original dimensions for a straightforward swap with no modifications. Supplied under Husqvarna Manufacturer Part Number 501 76 80‐01 (also 501768001). Genuine Part status ensures full compatibility, dependable fit, and longevity across the supported models listed below, covering both petrol and electric saws used in professional and domestic settings.
Key Features:
- Genuine Husqvarna part for consistent fit and function across listed models.
- Steel construction with accurately machined surfaces for durability and smooth operation.
- Direct replacement; fits in place of the original pivot using standard hand tools.
- Restores free, precise pivoting to reduce play, noise, and uneven wear in linkages.
- Helps maintain stable cutting control by keeping mechanisms aligned and responsive.
- Manufactured to the original specification MPN 501 76 80‐01 / 501768001.
- Suitable for both petrol and electric Husqvarna chainsaws in the fitment list.
- Robust, compact design that resists corrosion when cleaned and lubricated regularly.
Typical Applications:
Used during routine maintenance or repair when the existing pivot is bent, worn, seized, or missing. Common in overhauls of control linkages and moving assemblies within the chainsaw to restore smooth motion. Ideal for extending service life and keeping professional, farm, and domestic saws dependable in felling, logging, trimming, and general property maintenance.
Also known as:
Pivot pin, pivot rod, saw pivot, hinge pin, pivot axle, replacement pivot, OEM pivot component. These terms are often used interchangeably when referring to the small steel pin that provides a rotating point within chainsaw mechanisms.
Fits Models:
1200, 1200 ELECTRIC, 1200ELECTRIC, 136, 141, 1500, 1500 ELECTRIC, 1500ELECTRIC, 16 ELECTRIC, 16ELECTRIC, 242, 246, 254, 257, 261, 262XP, 266, 268, 281, 281XP, 288, 288XP, 3120, 3120XP, 36, 394XP, 395XP, 40, 41, 42, 45, 49, 51, 55, 55 EU1, 55 Rancher, 55 Rancher EPA, 55 RancherEPA, 55EU1, 61, 66, 670 SUPER II, 670SUPERII, JONSERED 49, JONSERED49
Alternate Part Numbers:
501 76 80-01, 501768001
Product Specifications
| L&S Part No. | 501 76 80 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 501768001 |
| Unit of Sale | 1 |
| Applications | 1200, 1200 ELECTRIC, 1200ELECTRIC, 136, 141, 1500, 1500 ELECTRIC, 1500ELECTRIC, 16 ELECTRIC, 16ELECTRIC, 242, 246, 254, 257, 261, 262XP, 266, 268, 281, 281XP, 288, 288XP, 3120, 3120XP, 36, 394XP, 395XP, 40, 41, 42, 45, 49, 51, 55, 55 EU1, 55 Rancher, 55 Rancher EPA, 55 RancherEPA, 55EU1, 61, 66, 670 SUPER II, 670SUPERII, JONSERED49 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Fits Models | 242 | 246 | 254 | 257 | 261 | 262XP | 266 | 268 | 281 | 281XP | 288 | 288XP | 3120 | 3120XP | 36 | 394XP | 395XP | 40 | 41 | 42 | 45 | 49 | 51 | 55 | 55 RANCHER | 61 | 66 | 1200 | 1500 |
