Description
Overview:

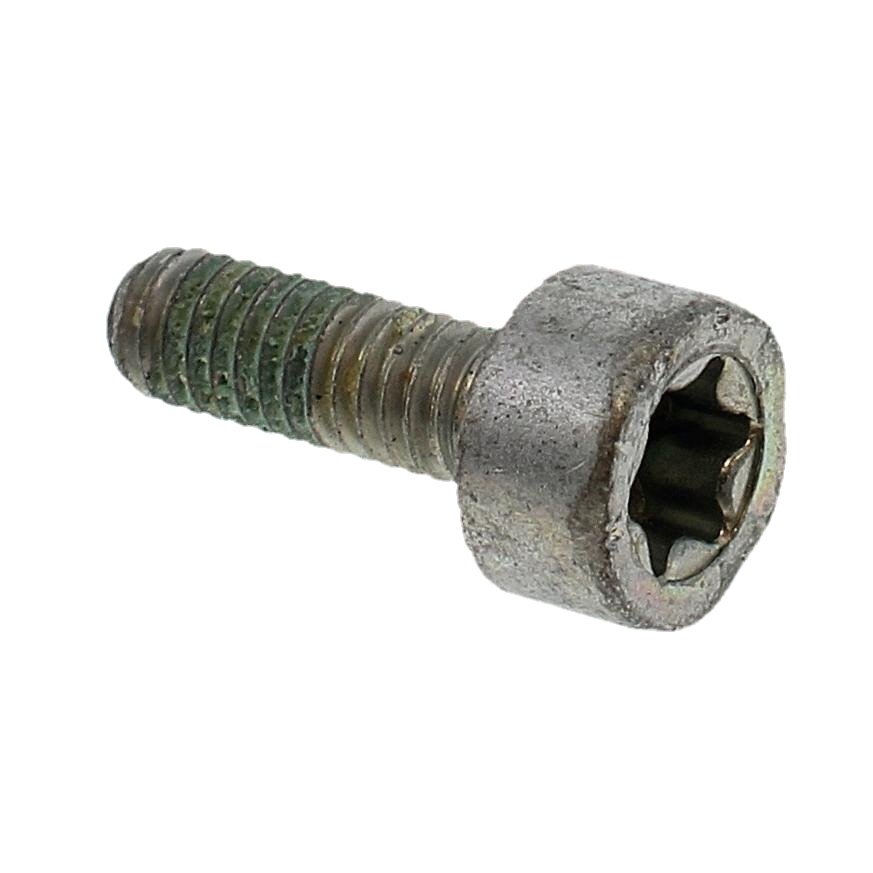

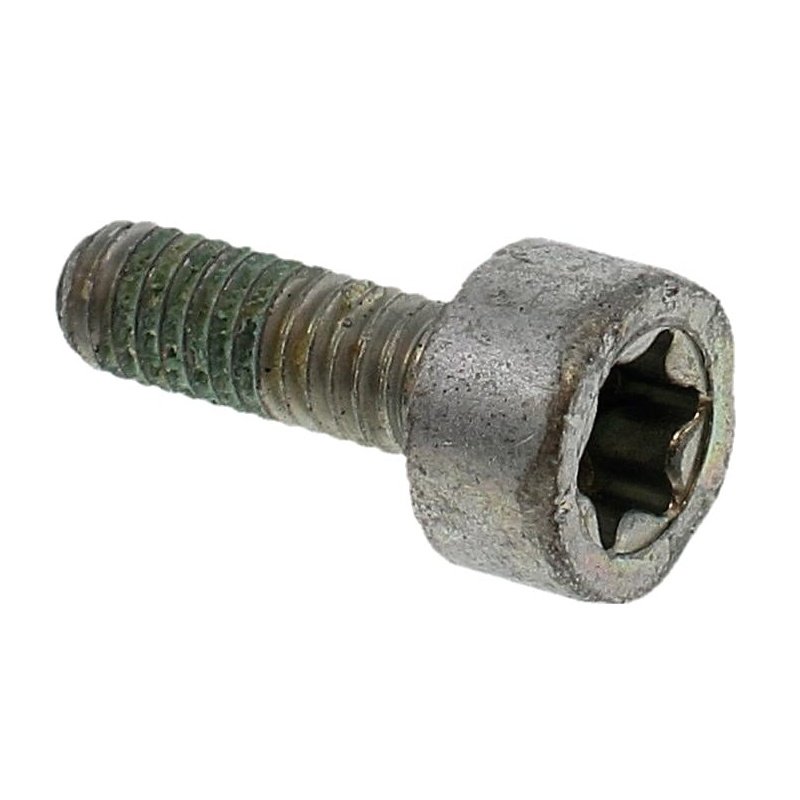

The Spline Screw IS‐M4x12 is a genuine Stihl fastener designed for secure, repeatable fixing in high‐vibration tools such as the TS 440 and TS 480i disc cutters. Made from robust steel with an internal spline drive, it offers reliable torque transfer and long service life when carrying out repairs or routine servicing. Its M4 x 12 mm sizing makes it suitable for precise locations across Stihl machinery where a compact machine screw is required. Common uses include securing covers, housings, guards and other assemblies where accurate alignment and holding strength are important. As an OEM component, it matches the original specification to help maintain equipment performance and safety.
Key Features:
- Genuine Stihl OEM spline screw for correct fit and reliability
- Size: M4 x 12 mm for precise, compact fixings
- Internal spline drive head for positive engagement and reduced cam‐out
- Durable steel construction suitable for high‐vibration applications
- Consistent dimensions for accurate seating and repeatable torque
- Compatible with TS 440 and TS 480i, plus a wide range of Stihl machines
- Straightforward to install with the correct spline driver
- Ideal as a like‐for‐like replacement during maintenance or repairs
Typical Applications:
Used to fasten covers, shrouds, air filter frames, guards and similar assemblies on disc cutters, chainsaws and other Stihl equipment. Suitable wherever an M4 x 12 mm machine screw with an internal spline head is specified, helping maintain structural integrity and reduce the risk of components loosening under vibration.
Also known as:
Internal spline screw, IS M4x12, spline‐drive machine screw, M4 x 12 mm fixing, fastening screw, fixing bolt, equipment fastener, Stihl screw, machine bolt.
Fits Models:
MS 201, MS 201 C, MS 201 T, MS 201 TC, MS 261, MS 261 C, MS 362, MS 362 C, MS 400 C, MS 441, MS 441 C, MS 461, MS 462, MS 462 C, MS 500i, MS 651, MS 661, MS 661 C, MS 881, MS201, MS201C, MS201T, MS201TC, MS261, MS261C, MS362, MS362C, MS400C, MS441, MS441C, MS461, MS462, MS462C, MS500i, MS651, MS661, MS661C, MS881, PC 70, PC 75, PC70, PC75, SPA 65, SPA65, TS 440, TS 480i, TS 500i, TS440, TS480i, TS500i
Alternate Part Numbers:
9022-346-0658, 90223460658
Product Specifications
| L&S Part No. | 9022 346 0658 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223460658 |
| Unit of Sale | 1 |
| Applications | MS 201, MS 201 C, MS 201 T, MS 201 TC, MS 261, MS 261 C, MS 362, MS 362 C, MS 400 C, MS 441, MS 441 C, MS 461, MS 462, MS 462 C, MS 500i, MS 651, MS 661, MS 661 C, MS 881, MS201, MS201C, MS201T, MS201TC, MS261, MS261C, MS362, MS362C, MS400C, MS441, MS441C, MS461, MS462, MS462C, MS500i, MS651, MS661, MS661C, MS881, PC 70, PC 75, PC70, PC75, SPA 65, SPA65, TS 440, TS 480i, TS 500i, TS440, TS480i, TS500i |
| Machine Type | Disc Cutters, Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS201, MS201C, MS201T, MS201TC | MS362, MS362C | MS261, MS261C | MS441, MS441C | TS440 | TS480i, TS500i | MS461 | MS462, MS462C | MS651 | MS661, MS661C | MS500i | MS400C | MS881 |
