Description
Overview:

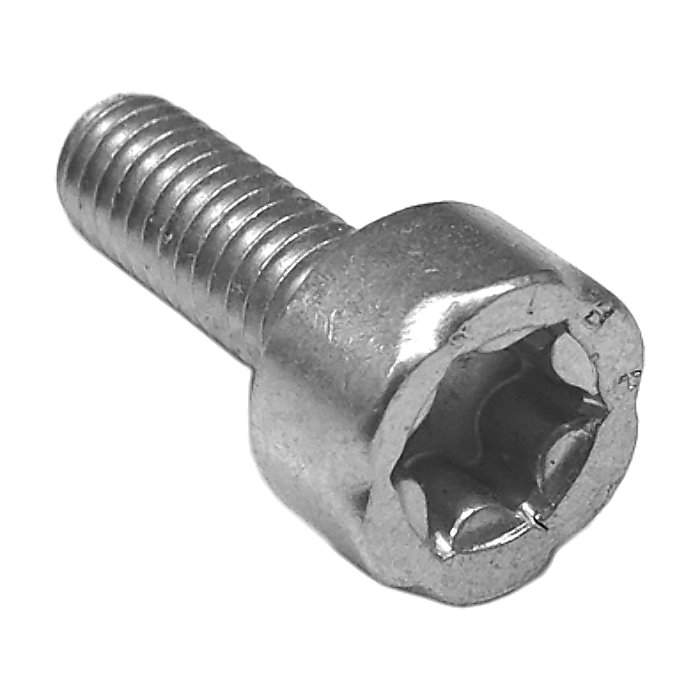

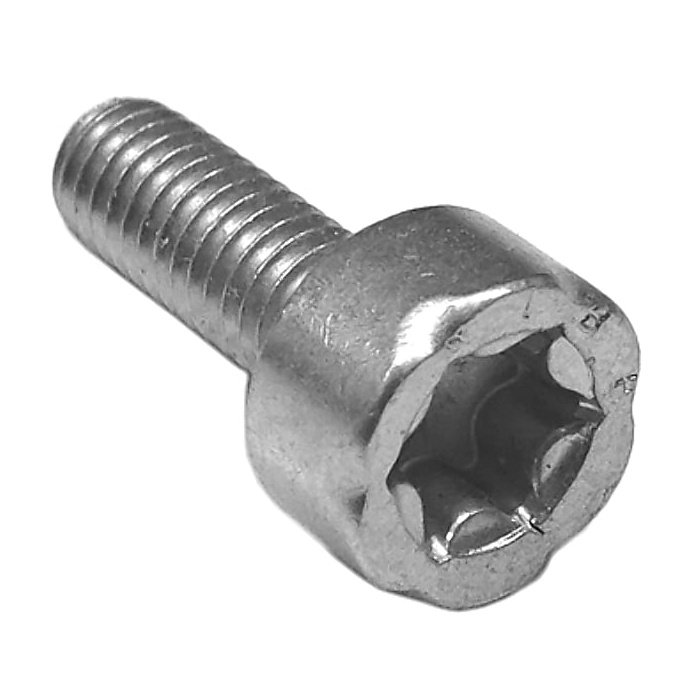

The Spline Screw IS‐M4x12 is a genuine Stihl OEM fastener designed to secure components on Stihl machinery, including chainsaws such as the MS460 and MS362. Made from steel with a corrosion‐resistant plated finish, it uses an internal spline drive for a solid tool bite and accurate torque application. The M4 x 12 mm sizing matches Stihl specifications, helping to restore or maintain correct fit where the original screw is used. Suitable for high‐vibration outdoor power equipment, this screw provides reliable clamping of housings, covers, handles, and other assemblies across a wide range of Stihl tools. Genuine Part status ensures consistent quality and compatibility with the specified models.
Key Features:
- Genuine Stihl OEM fastener for assured compatibility and build quality
- Internal spline drive for positive engagement and reduced risk of cam‐out
- M4 x 12 mm machine screw sized to Stihl specifications for a precise fit
- Steel construction with a corrosion‐resistant plated finish for durability
- Accurate thread and head form to support consistent torque and secure clamping
- Suited to high‐vibration equipment when fitted to the correct torque
- Widely used across Stihl chainsaws, brushcutters, hedge trimmers, augers, and cordless tools
- Straightforward installation with the correct internal spline driver or bit
Typical Applications:
Used to fasten covers, shrouds, air filter housings, recoil starter assemblies, handle frames, gearcase covers, guards, and auxiliary brackets on compatible Stihl machines. Ideal for replacements during servicing, repairs, or rebuilds where the original M4 x 12 mm internal‐spline screw is specified.
Also known as:
Internal spline machine screw, star‐drive screw, M4 x 12 mm metric screw, pan head screw, fixing, fastener, OEM screw, service screw, bolt for Stihl equipment.
Fits Models:
020, 020T, 024, 026, 028, 028AV, 034, 036, 036QS, 038, 044, 046, 048, 050, 051, 064, 066, 076, 084, 088, 08S, BG72, BT106, BT 130, BT 130 Z, BT 131, FR106, FR125, FR135, FR145, FS106, FS108, FS48, FS52, FS56, FS56C, FS56R, FS62, FS66, FS72, FS74, FS76, FS81, FS86, FS88, GS461, HS72, HS74, HS76, HTA 135, HTA 150.0, HTA 160.0, KMA 135R, MM 55, MM 55 C MultiSystem, MM 55-Z MultiSystem, MS200, MS200T, MS201, MS201C, MS201T, MS201TC, MS240, MS260, MS260C, MS261, MS261C, MS271, MS271C, MS291, MS291C, MS311, MS340, MS341, MS360, MS360C, MS361, MS361C, MS362, MS362C, MS380, MS381, MS382, MS391, MS400C, MS440, MS441, MS441C, MS460, MS461, MS462, MS462C, MS500i, MS640, MS650, MS651, MS660, MS661, MS661C, MS780, MS880, MS881, MSA220T, MSA220TC
Alternate Part Numbers:
9022-313-0660, 90223130660
Product Specifications
| L&S Part No. | 9022 313 0660 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223130660 |
| Unit of Sale | 1 |
| Applications | 020, 020T, 024, 026, 028, 028AV, 034, 036, 036QS, 038, 044, 046, 048, 050, 051, 064, 066, 076, 084, 088, 08S, BG72, BT 130, BT 130 Z, BT 131, BT106, BT130, BT130Z, BT131, FR106, FR125, FR135, FR145, FS106, FS108, FS48, FS52, FS56, FS56C, FS56R, FS62, FS66, FS72, FS74, FS76, FS81, FS86, FS88, GS461, HS72, HS74, HS76, HTA 135, HTA 150.0, HTA 160.0, HTA135, HTA150.0, HTA1500, HTA160.0, HTA1600, KMA 135R, KMA135R, MM 55, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM55, MM55-ZMultiSystem, MM55CMultiSystem, MS200, MS200T, MS201, MS201C, MS201T, MS201TC, MS240, MS260, MS260C, MS261, MS261C, MS271, MS271C, MS291, MS291C, MS311, MS340, MS341, MS360, MS360C, MS361, MS361C, MS362, MS362C, MS380, MS381, MS382, MS391, MS400C, MS440, MS441, MS441C, MS460, MS461, MS462, MS462C, MS500i, MS640, MS650, MS651, MS660, MS661, MS661C, MS780, MS880, MS881, MSA220T, MSA220TC |
| Machine Type | Chainsaws, Brushcutters, Augers |
| Fits Brands | Stihl |
| Fits Models | MS200, MS200T | MS260, MS260C | 028, 028AV | MS361, MS361C | MS440 | MS460 | 08S | MS240 | MS340 | MS360, MS360C | MS380 | MS640 | MS201, MS201C, MS201T, MS201TC | MS362, MS362C | FS56, FS56C, FS56R | MS261, MS261C | MS441, MS441C | HS72, HS74, HS76 | BG72 | FS48, FS52, FS56 | FS62, FS66 | FS72, FS74, FS76 | FS81, FS86 | FS88 | FS106 | FS108 | FR106 | FR125, FR135, FR145 | 020, 020T | 024 | 026 | 034 | MS271, MS271C, MS291, MS291C | MS311 | MS341 | MS381 | MS382 | MS391 | MS461 | MS462, MS462C | MS650 | MS651 | MS660 | MS661, MS661C | MS780 | MS880 | 036 | 036QS | 038 | 044 | 046 | 048 | 050, 051 | 064 | 076 | 084 | 088 | 066 | MM 55, MM 55 C MultiSystem | MM 55-Z MultiSystem | BT 130 | BT 131 | BT 130 Z | MS500i | MS400C | MS881 | KMA 135R | GS461 | HTA 135 | HTA 150.0 | HTA 160.0 | MSA220T | MSA220TC | MSA190 T | RGA140 | MC 200 | FSA135 | FSA135R |
