Description
Overview:

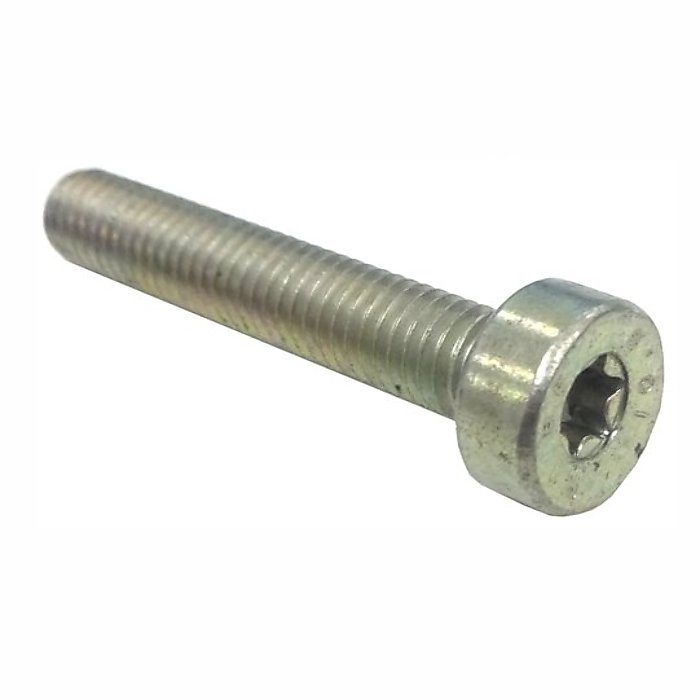

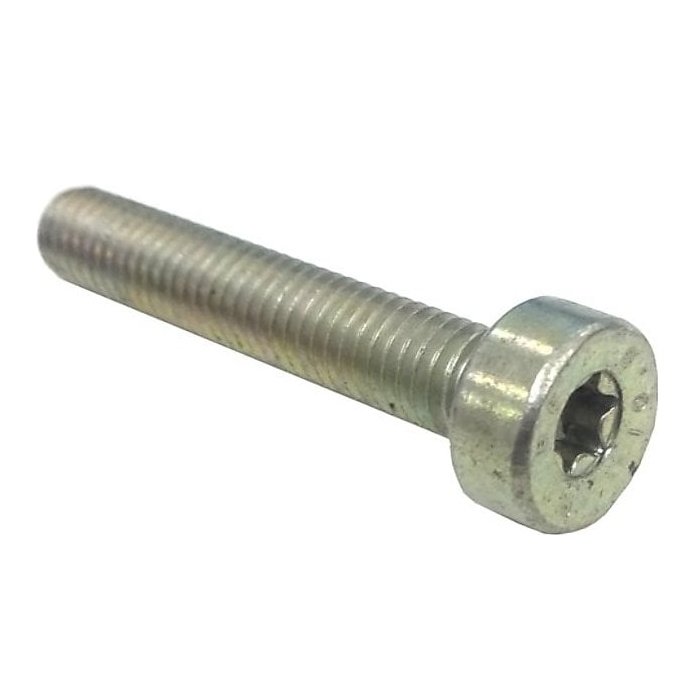

The Spline Screw IS‐M6x35 is a genuine Stihl fastener designed for secure, repeatable clamping in high‐vibration machinery. Made from durable steel, it features an internal spline drive for positive engagement and controlled tightening. With metric dimensions of M6 x 35 mm (6 mm thread diameter, 35 mm length), it is suitable for a range of assemblies on Stihl equipment, including the TS800 cut‐off saw and FS360C brushcutter. This OEM part (Stihl 9022 341 1380) helps maintain alignment and stability of components such as covers, guards, brackets, and housings. It is a practical replacement during routine servicing or repairs and ensures a correct fit without modification, helping to keep tools performing reliably on site or in the workshop.
Key Features:
- Genuine Stihl OEM part for dependable fit and function
- M6 x 35 mm machine screw with internal spline drive for secure engagement
- Steel construction provides strength and long service life
- Precision metric thread for firm seating and reduced loosening under vibration
- Suitable for covers, guards, housings, and structural brackets across multiple tools
- Straightforward installation using the appropriate spline driver
- Supports consistent clamp load to help protect components from movement and wear
- Replaces Stihl part numbers 9022-341-1380 and 90223411380
Typical Applications:
Used to fasten engine shrouds, guard assemblies, handle brackets, gearhead casings, and other structural or protective parts on Stihl cut‐off saws, brushcutters, trimmers, and KombiSystem tools. Suitable for replacements during scheduled maintenance, repairs after strip‐down, or when an original fastener is missing or damaged. Helps maintain equipment integrity and smooth operation in demanding outdoor and construction environments.
Also known as:
Internal spline screw, IS‐M6x35 machine screw, M6 x 35 fastener, M6 bolt, spline‐drive screw, fixing screw, metric machine bolt, OEM Stihl fastener.
Fits Models:
FC 100, FC 83, FC 85, FC 90, FC100, FC83, FC85, FC90, FC95, FCS-KM, FCSKM, FR131T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS120, FS200, FS240, FS25-4, FS250, FS254, FS260, FS300, FS350, FS36, FS360C, FS380, FS40, FS410C, FS44, FS460C, FS460RC, FS490C, FS50, FS510C, FS55, FS55C, FS55R, FS55RC, FS55T, FS56, FS560C, FS56C, FS56R, FS65-4, FS654, FS70C, FS70R, FS70RC, FS75, FS80, FS83, FS83T, FS85, FS87, FS87R, FS89, FS89R, FS94, FS94 C, FS94C, FS94R, FS94RC, FSE65, FW20, FW20 Cart, KA120, KA120R, KA250 Attachment, KB-KM, KBKM, KM100, KM100R, KM110R, KM55, KM55C, KM55R, KM55RC, KM56C, KM56RC, KM85, KM85R, KW-KM, KWKM, TS700, TS800
Alternate Part Numbers:
9022-341-1380, 90223411380
Product Specifications
| L&S Part No. | 9022 341 1380 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223411380 |
| Unit of Sale | 1 |
| Applications | FC 100, FC 83, FC 85, FC 90, FC100, FC83, FC85, FC90, FC95, FCS-KM, FCSKM, FR131T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS120, FS200, FS240, FS25-4, FS250, FS254, FS260, FS300, FS350, FS36, FS360C, FS380, FS40, FS410C, FS44, FS460C, FS460RC, FS490C, FS50, FS510C, FS55, FS55C, FS55R, FS55RC, FS55T, FS56, FS560C, FS56C, FS56R, FS65-4, FS654, FS70C, FS70R, FS70RC, FS75, FS80, FS83, FS83T, FS85, FS87, FS87R, FS89, FS89R, FS94, FS94 C, FS94C, FS94R, FS94RC, FSE65, FW20, FW20 Cart, KA120, KA120R, KA250 Attachment, KB-KM, KBKM, KM100, KM100R, KM110R, KM55, KM55C, KM55R, KM55RC, KM56C, KM56RC, KM85, KM85R, KW-KM, KWKM, TS700, TS800 |
| Machine Type | Brushcutters, Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS700 | FS25-4, FS65-4 | FS36, FS40, FS44 | FS40, FS50 | FS55, FS55C, FS55R | FS56, FS56C, FS56R | FS75, FS80, FS85 | FS83, FS83T | FS100, FS110 | FS120, FS200, FS250 | FS240, FS260 | FS300, FS350, FS380 | FS360C FS410C | FS460C, FS460RC | FW20 Cart | FSE65 | FS70C, FS70R, FS70RC | FS94, FS94 C, FS94R, FS94RC | FS490C, FS510C, FS560C | FR131T | TS800 | FS89, FS89R | KM55, KM55C, KM55R, KM55RC | KM56C, KM56RC | KM85, KM85R | KM100, KM100R, KM110R | FCS-KM | KB-KM, KW-KM | KA120, KA120R, KA250 Attachment | FC 83 | FC 85 | FC 90, 95 | FC 100 | TS710i | TS910i | FS561 C-EM |
