Description
Overview:

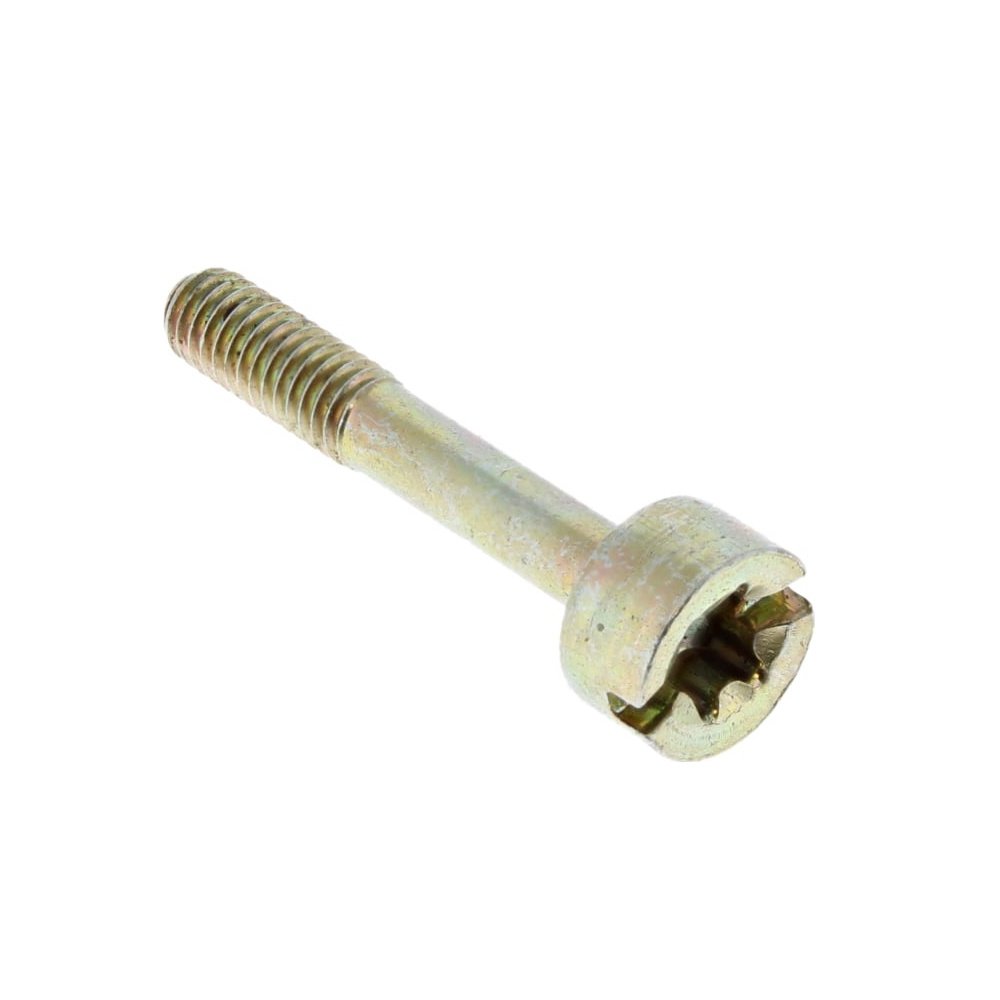

The Spline Screw M4x25 is a genuine Stihl fixing designed for securing components on Stihl brushcutters and related machines. Made from durable steel with a precision spline drive, it offers a reliable hold under vibration and repeated use. Sized at M4 x 25 mm (4 mm diameter x 25 mm length), it suits applications where a standard metric machine screw is specified on Stihl equipment, including the FS360 and FS420. Engineered to Stihl tolerances and supplied under part number 9025 313 0741, it helps maintain correct alignment and clamping force across housings, guards, handle sets, and engine plastics. Using the correct spline driver ensures quick, clean fitting and removal, reducing the risk of cam-out and damage to surrounding parts. A practical choice for routine servicing and repairs.
Key Features:
- Genuine Stihl part for assured fit and compatibility
- M4 x 25 mm size for common assemblies on Stihl machines
- Precision spline head for positive drive and reduced cam-out
- Robust steel construction for long service life
- Stable under vibration for dependable clamping
- Clean, repeatable fitting with the correct spline driver
- Suitable like-for-like replacement for worn or missing screws
- Helps maintain alignment of covers, guards, and housings
- Corrosion-resistant finish suitable for outdoor conditions
- Supports reliable maintenance and safe operation
Typical Applications:
Used to fasten engine shrouds, gearhead covers, handle brackets, guards, and other assemblies on Stihl brushcutters, clearing saws, and blowers. Ideal for replacing damaged or lost fasteners during routine servicing, rebuilds, or component swaps, helping keep parts seated securely and equipment running smoothly in demanding garden, landscaping, agricultural, and site conditions.
Also known as:
Spline-head screw, M4 x 25 mm machine screw, metric screw, fixing, fastener, bolt, cap screw, retaining screw, component screw, equipment screw.
Fits Models:
BG72, BG75, FR220, FS160, FS180, FS220, FS220K, FS280, FS280K, FS290, FS360, FS360C, FS410C, FS420, FS420L, FS500, FS550, FS550L
Alternate Part Numbers:
9025-313-0741, 90253130741
Product Specifications
| L&S Part No. | 9025 313 0741 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90253130741 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part ensures fit and compatibility - M4 x 25 mm size for Stihl assemblies - Precision spline head reduces cam-out - Robust steel construction for durability - Fits models including FS360 and FS420 |
| Fits Models | FS220, FS280, FS290 | FS360C FS410C | FS500, FS550, FS550L | BG72 | BG75 | FS160, FS180 | FS360, FS420, FS420L (older models) |
