Description
Overview:

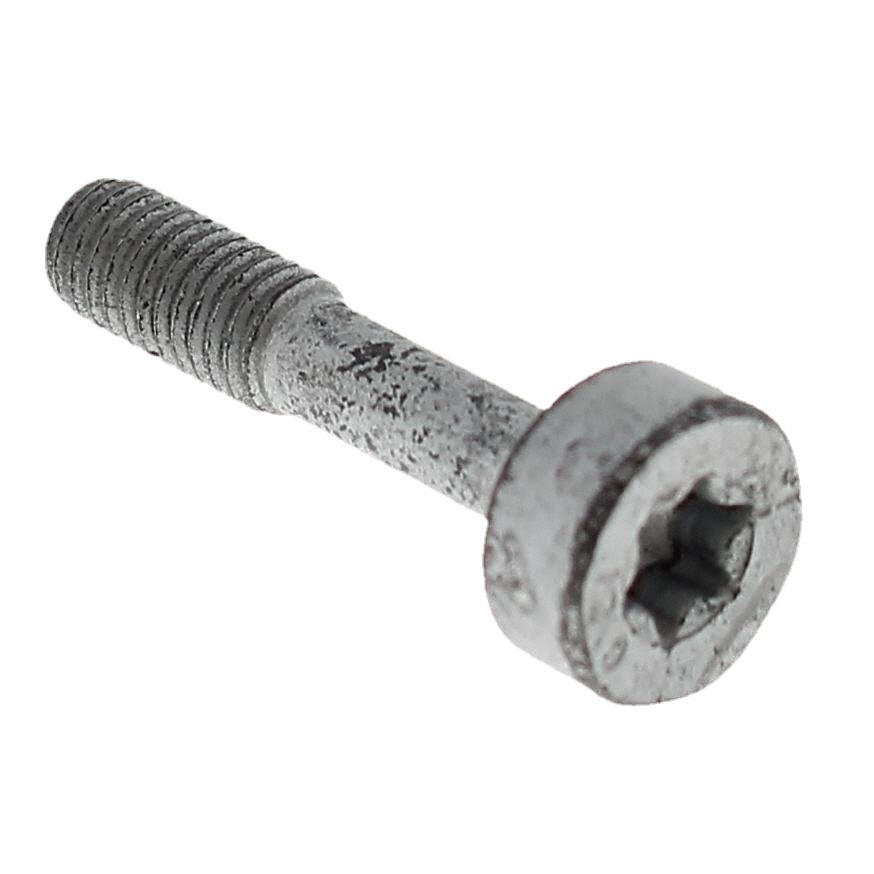

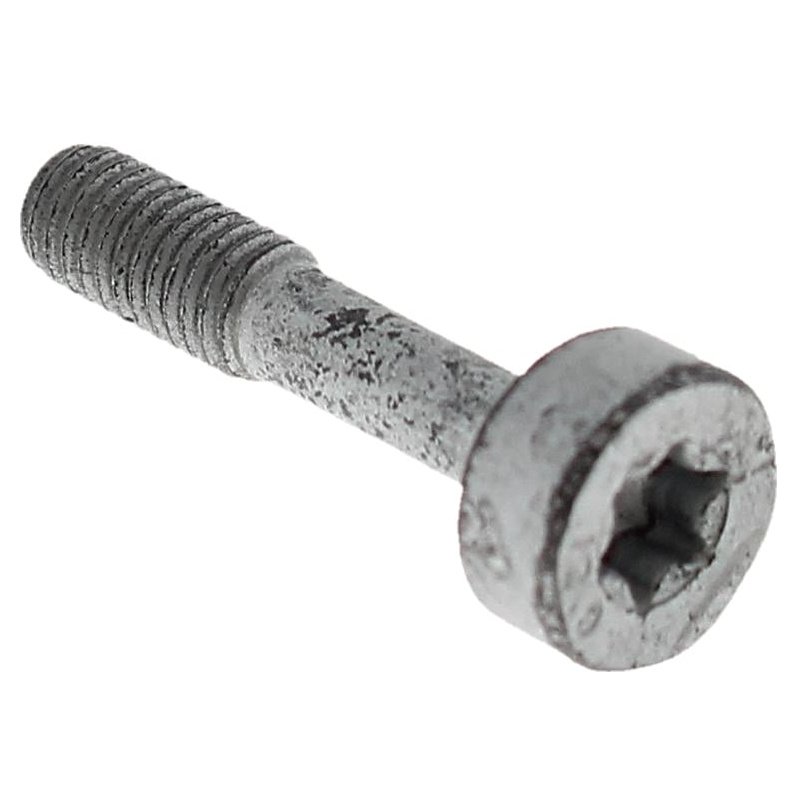

The Spline Screw M5x23 is a genuine Stihl fastener designed for secure, long-lasting assembly in Stihl FS brushcutters and KombiTool systems. Manufactured from durable metal and precision-engineered to an M5 thread with a 23 mm length, it provides dependable clamping of components that are subject to vibration and frequent use. This OEM screw (MPN: 9022 373 1025) is suitable for a wide range of Stihl machines, including popular models such as the FS55 and FS90. Its spline-drive head promotes positive tool engagement, helping reduce cam-out and ensuring consistent tightening. Use it to replace worn, corroded, or missing fixings during routine maintenance to keep your machine operating smoothly and safely.
Key Features:
- Genuine Stihl OEM part for assured compatibility and fit
- M5 x 23 mm machine screw for common Stihl assemblies
- Spline-drive head for strong engagement and reduced slippage
- Durable metal construction for reliability under vibration
- Accurate threading for clean assembly and reduced wear on mating parts
- Helps maintain alignment and stability of housings and guards
- Suitable across a wide range of FS and FR brushcutters and FS-KM attachments
- Simple to install with the correct spline driver, aiding fast maintenance
- Ideal as a like-for-like replacement for missing or damaged screws
- Supports long-term equipment performance and safety
Typical Applications:
Used to secure housings, covers, guards, handle clamps, gearbox or drive-tube interfaces, and other metal or plastic assemblies on Stihl brushcutters and KombiTool attachments. Suitable for general servicing, refurbishment, and preventative maintenance where a precise M5 machine screw with a spline-drive head is specified.
Also known as:
Machine screw, spline-head screw, star-drive screw, M5 fixing, M5 bolt, OEM fastener, metric screw, assembly screw, retaining screw.
Fits Models:
FR106, FR108, FR130T, FR131T, FR350, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS-KM, FS100, FS100R, FS100RX, FS106, FS108, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS120, FS131, FS131R, FS160, FS180, FS200, FS220, FS240, FS25-4, FS250, FS254, FS260, FS280, FS290, FS300, FS310, FS311, FS350, FS36, FS380, FS40, FS400, FS44, FS450, FS460C, FS460RC, FS480, FS55, FS55C, FS55R, FS62, FS65-4, FS654, FS66, FS72, FS74, FS75, FS76, FS80, FS81, FS83, FS83T, FS85, FS86, FS88, FS89, FS89R, FS90, FS90R, FS91, FS91R, FS94, FS94 C, FS94C, FS94R, FS94RC, FS96, FSE65, FSKM
Product Specifications
| L&S Part No. | 9022 373 1025 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223731025 |
| Unit of Sale | 1 |
| Applications | FR106, FR108, FR130T, FR131T, FR350, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS-KM, FS100, FS100R, FS100RX, FS106, FS108, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS120, FS131, FS131R, FS160, FS180, FS200, FS220, FS240, FS25-4, FS250, FS254, FS260, FS280, FS290, FS300, FS310, FS311, FS350, FS36, FS380, FS40, FS400, FS44, FS450, FS460C, FS460RC, FS480, FS55, FS55C, FS55R, FS62, FS65-4, FS654, FS66, FS72, FS74, FS75, FS76, FS80, FS81, FS83, FS83T, FS85, FS86, FS88, FS89, FS89R, FS90, FS90R, FS91, FS91R, FS94, FS94 C, FS94C, FS94R, FS94RC, FS96, FSE65, FSKM |
| Machine Type | Brushcutters, Kombi Tools |
| Fits Brands | Stihl |
| Fits Models | FS25-4, FS65-4 | FS36, FS40, FS44 | FS55, FS55C, FS55R | FS75, FS80, FS85 | FS83, FS83T | FS90, FS90R | FS100, FS110 | FS120, FS200, FS250 | FS220, FS280, FS290 | FS240, FS260 | FS300, FS350, FS380 | FS310 | FS400, FS450, FS480 | FS460C, FS460RC | FSE65 | FS62, FS66 | FS72, FS74, FS76 | FS81, FS86 | FS88 | FS91, FS91R | FS94, FS94 C, FS94R, FS94RC | FS96 | FS106 | FS108 | FS111, FS111R, FS111RX | FS131, FS131R | FS160, FS180 | FS311 | FR85T, FR85 | FR106 | FR130T | FR131T | FR350, FR450, FR480, FR480C | FR410C, FR460TC | FR108 | FS89, FS89R | FS-KM | FSS-KM | FSA130 | FSA130R | FSA135 | FSA135R | FSA200 | FSA200R | FS |
