Description
Overview:

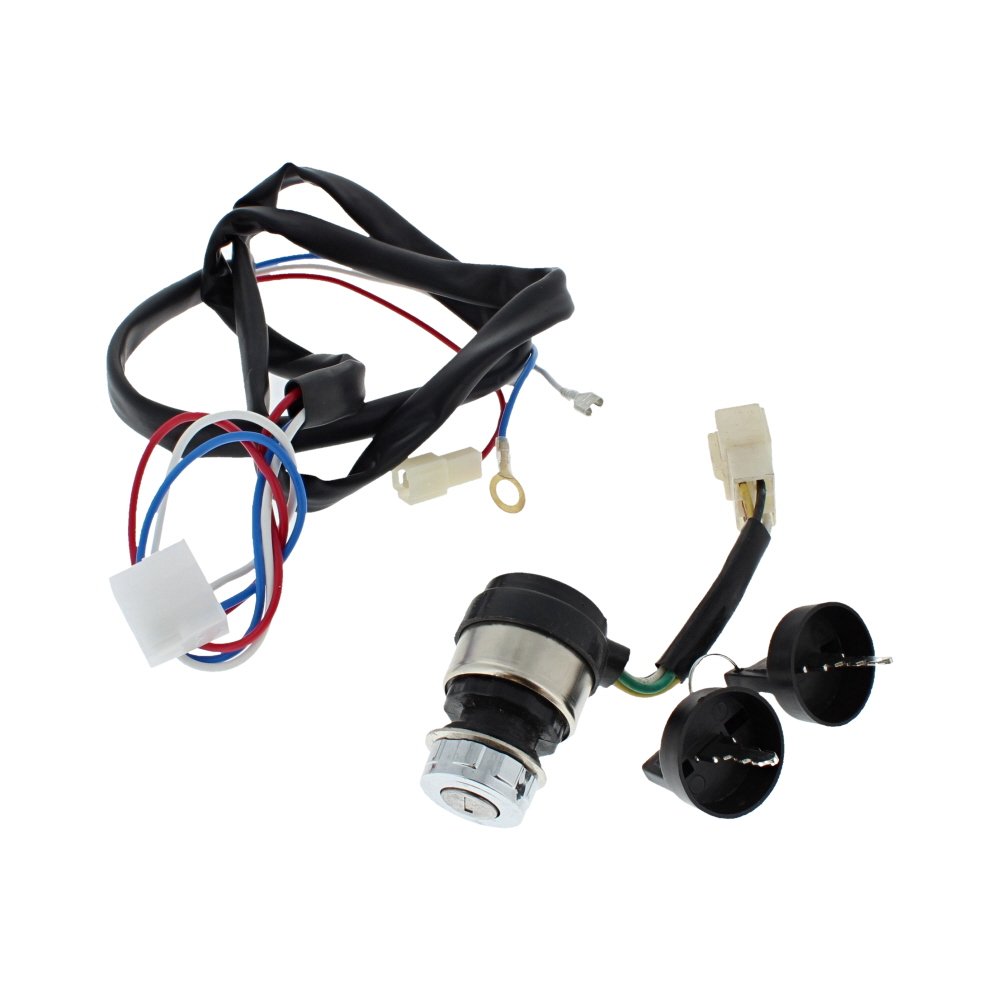

This Wiring Harness & Switch Assembly is a complete electrical loom with keyed on/off switch for Yanmar L‐Series single‐cylinder diesel engines, such as the L100 and 186F. Built with copper conductors and PVC insulation inside a protective black outer sheath, it links the engine's charging coil (3 A dynamo), regulator/rectifier (3 A), and ancillary circuits to a robust key switch. The assembly provides reliable routing of power and clean switching of the engine electrics to support dependable starting and shutdown. Supplied with two keys, it is a practical, long‐life replacement when refurbishing small plant and garden equipment powered by Yanmar L‐Series engines. Identified by MPN 320 358, it is sized and terminated to suit common L‐Series layouts for straightforward fitment and consistent performance.
Key Features:
- Direct replacement harness and key switch for Yanmar L‐Series engines (MPN 320 358)
- Compatible with 3 A dynamo assembly and 3 A regulator for stable charging
- Pre‐terminated, moulded connectors to reduce wiring errors and speed installation
- Durable PVC‐sheathed loom resists abrasion, oil, and vibration in tough site conditions
- Includes two keys for straightforward control and basic security of the engine
- Clear, tidy cable routing with strain relief to minimise chafing and intermittent faults
- Positive‐action key switch for reliable on/off control of the electrical system
- Correct lead lengths and terminations for a neat, factory‐style fit
- Suitable for maintenance, overhaul, or replacing damaged or corroded original looms
- Designed for seamless integration with Yanmar charging and regulator circuits
Typical Applications:
Ideal for restoring reliable electrics on compactors, generators, concrete mixers, water pumps, and other small plant using Yanmar L‐Series engines. Use during engine rebuilds, when upgrading to a regulated 3 A charging setup, or to cure intermittent electrical issues caused by aged wiring, damaged connectors, or worn switches in daily site or hire‐fleet use.
Also known as:
Engine wiring loom, ignition key switch and loom, wiring harness with switch, control switch assembly, engine harness, key switch assembly, on/off switch assembly, remote control switch, control panel switch, electrical loom for Yanmar L‐Series.
Fits Models:
170F, 178F, 186F, L100, L100N, L40, L40AE, L48, L60, L60AE, L70, L75, L90, L90AE
