Description
Overview:

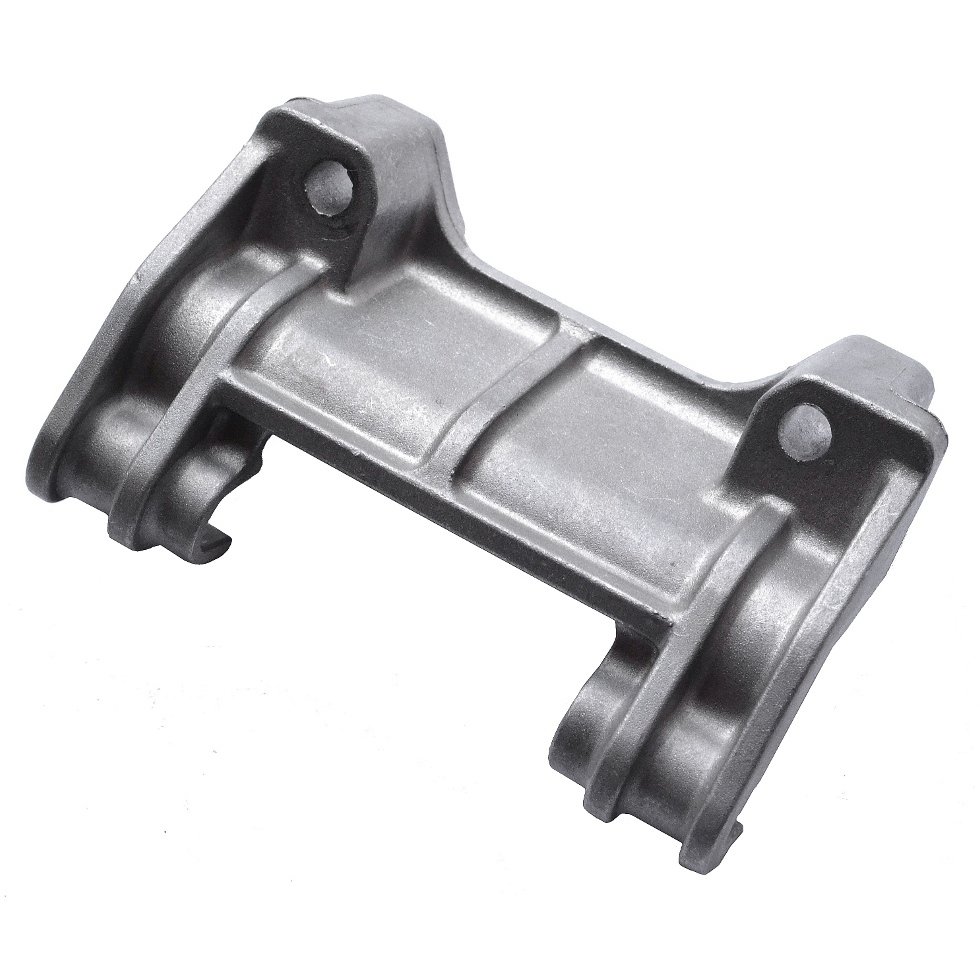

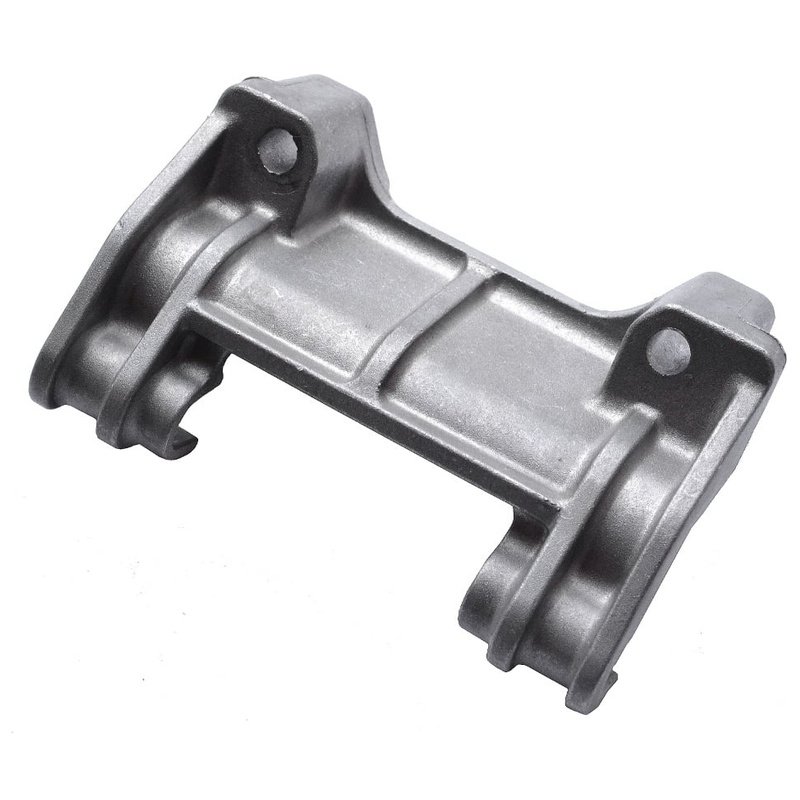

This Upper Fuel Tank Bracket is a Non Genuine Part designed for Yanmar single‐cylinder diesel engines, including the L90AE and L100AE. It replaces OEM reference 114650-55230 and is supplied under MPN 320 101. Built from robust steel with a protective coated finish, the bracket supports and secures the fuel tank at the top of the engine, helping maintain correct alignment of the tank and feed lines under vibration. It is suitable for engines used in construction and garden machinery such as compactors, generators, pumps, and tillers. The accurate mounting pattern is designed to match the original layout on compatible Yanmar L‐series engines, giving a dependable fit during routine maintenance or tank replacement.
Key Features:
- Non Genuine Part engineered to replace OEM 114650-55230
- Durable steel construction with a protective coated finish for long service life
- Accurate hole spacing for straightforward fitment on compatible engines
- Provides stable support to the fuel tank to help protect fuel lines and fittings
- Suited to demanding site and garden use where vibration and weather are common
- Clean, simple design for easy installation with standard hand tools
- Compatible with selected Yanmar L‐series engines and common equivalents (see Fits Models)
- Supplied under MPN 320 101
Typical Applications:
Used to mount and support the upper fuel tank on Yanmar L‐series engines powering plate compactors, generators, water pumps, cement mixers, rotavators, and pressure washers. Ideal for replacing bent, cracked, or corroded original brackets during servicing to restore secure tank placement and reliable fuel delivery.
Also known as:
Upper tank stay, fuel tank support, top tank bracket, fuel tank hanger, tank mounting bracket, tank support strap, engine tank carrier. These terms refer to the same component that secures the fuel tank at the top of the engine.
Fits Models:
100, 186F, L100AE, L75, L90, L90AE
Alternate Part Numbers:
114650-55230
