Description
Overview:

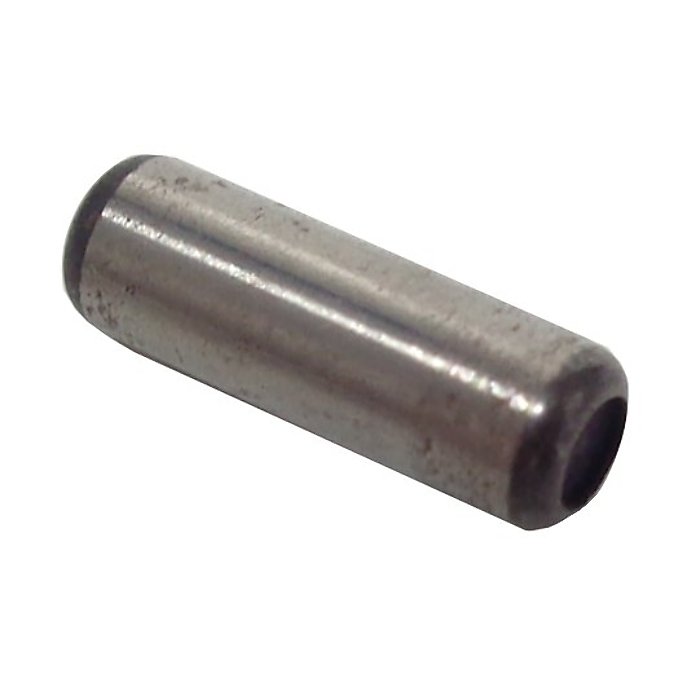

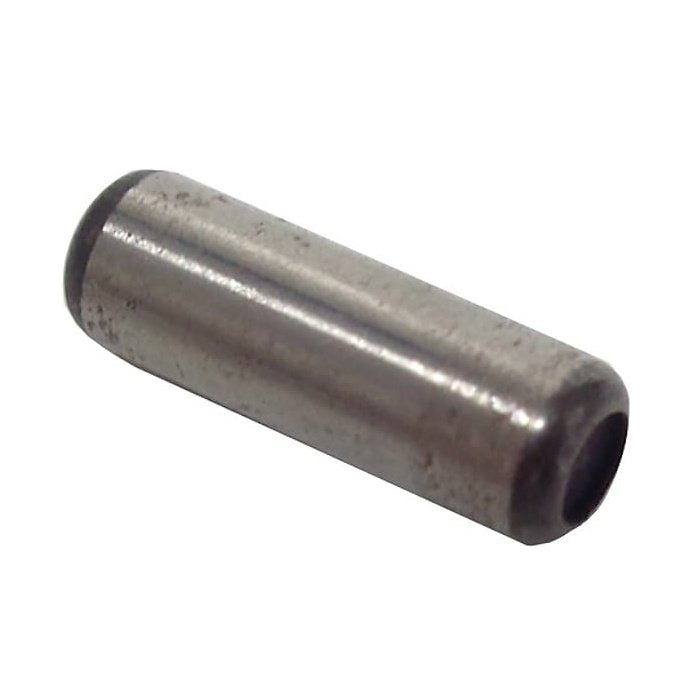

The Cylindrical Pin 4x12 for Stihl is a small but critical fixing used to locate and secure components within various Stihl hedge trimmers and KombiSystem attachments. Made from precision-machined, wear-resistant steel, it measures 4 mm in diameter and 12 mm in length for a snug, accurate fit in mating holes. This Genuine Stihl OEM part (9381 003 2070) maintains alignment under vibration and load, helping prevent play, misalignment, or premature wear. It is commonly used in pivot points, gearcases, and linkage assemblies where reliable location is essential. Suitable for routine maintenance or repairs, it restores the intended fit and function in tools such as the FH-KM and HL-KM, keeping your equipment operating smoothly and safely.
Key Features:
- Genuine Stihl OEM component for assured compatibility and fit
- Precision 4 x 12 mm size for accurate location and retention
- Robust steel construction for strength and long service life
- Chamfered ends for easier insertion and correct seating
- Stable under vibration to help maintain alignment and reduce wear
- Supports a wide range of Stihl hedge trimmers and Kombi attachments
- Simple to fit with basic hand tools during routine servicing
- Helps restore tight tolerances where movement or play has developed
- Suitable for preventative maintenance and professional repair work
- Replaces Stihl part number 9381 003 2070 used across listed models
Typical Applications:
Used to locate and secure components such as gearcase halves, blade carriers, hinge or pivot joints, and linkage assemblies in Stihl hedge trimmers and KombiSystem tools. Ideal when rebuilding a head, replacing worn pins, or reassembling attachments after major servicing to ensure correct alignment and dependable operation.
Also known as:
Dowel pin, locating pin, straight pin, parallel pin, solid dowel, alignment pin, machine pin, interference-fit pin, precision pin fastener.
Fits Models:
FH-KM, FH-KM 0-90 deg, FH75, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL-KM, HL-KM 0 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HLKM, HS75, HS80, HS81, HS81R, HS81RC, HS81T, HS81TC, HS82, HS85, HS86, HS86R, HS86T, HS87
Alternate Part Numbers:
9381-003-2070, 93810032070
Product Specifications
| L&S Part No. | 9381 003 2070 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93810032070 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 0-90 deg, FH75, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL-KM, HL-KM 0 deg, HL-KM 0-90 deg, HL-KM 30 deg, HL100, HL100K, HL45, HL73, HL73K, HL75, HL75K, HLKM, HS75, HS80, HS81, HS81R, HS81RC, HS81T, HS81TC, HS82, HS85, HS86, HS86R, HS86T, HS87 |
| Machine Type | Hedgetrimmers |
