Description
Overview:

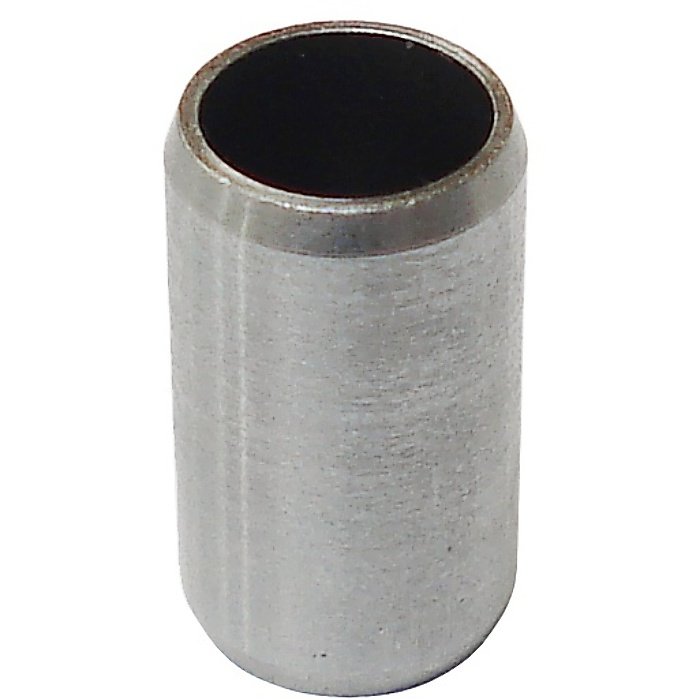

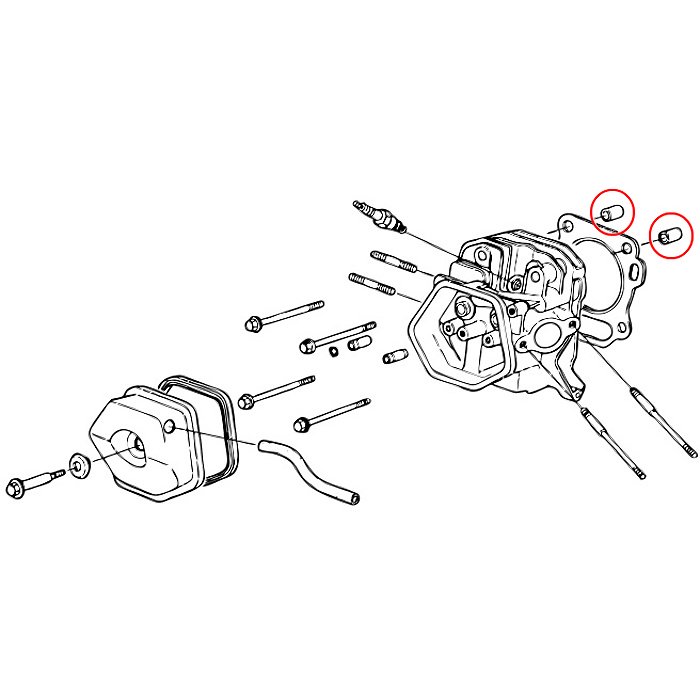

The Dowel Pin (Cylinder Head) is a small, precision steel locator used to align the cylinder head to the engine block on Honda GX-series petrol engines. This Genuine Honda part ensures the head sits squarely and securely, helping to maintain gasket sealing and compression while reducing the risk of distortion during assembly. It is engineered to OEM standards for a precise fit and reliable service life. Suitable for professional and DIY engine work, it is commonly used on Honda GX240 and GX270 engines found in generators, pumps, compactors, and other plant and garden machinery. OEM No. 94301-12200 confirms compatibility and correct specification, making this an ideal direct replacement when rebuilding or servicing the top end of your engine.
Key Features:
- Genuine Honda part for assured compatibility and performance (Brand: Honda)
- OEM No. 94301-12200 for exact fit and correct location
- Precision steel dowel for accurate head-to-block alignment
- Helps maintain head gasket sealing and correct compression
- Reduces risk of head warping or misalignment during assembly
- Direct-fit replacement for worn, damaged, or missing dowels
- Smooth, consistent dimensions for easy installation and removal
- Suitable for regular servicing, rebuilds, and preventative maintenance
- Widely used across many Honda GX and GXV engines for standardised repairs
Typical Applications:
Used during cylinder head removal and refitting, head gasket replacement, top-end rebuilds, or after overheating events. Common on engines powering generators, water pumps, pressure washers, plate compactors, cement mixers, and larger lawn and garden equipment. Ensures quick, accurate alignment so the head tightens evenly and the engine returns to reliable service.
Also known as:
Cylinder head locating pin, locating dowel, head alignment dowel, cylinder head bush, guide pin, head locator, engine dowel.
Fits Models:
EC5000, GD320, GD321, GD411, GX240, GX240K1, GX240U1, GX240UT1, GX240UT2, GX270, GX270H, GX270T, GX270T2, GX270U, GX270UT, GX270UT2, GX340, GX340K1, GX340T1, GX340T2, GX340U1, GX340UT1, GX390, GX390H1, GX390K1, GX390T1, GX390T2, GX390U1, GX390UT1, GX390UT2, GX440IU, GX610, GX610U1, GX620, GX620U1, GX640, GX670, GX690, GXV340RT2, GXV340T2, GXV390, GXV390K1, GXV390RT1, GXV610, GXV620, GXV670, GXV670U
Alternate Part Numbers:
94301-12200, 9430112200
Product Specifications
| L&S Part No. | 94301 12200 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 9430112200 |
| Unit of Sale | 1 |
| Applications | EC5000, GD320, GD321, GD411, GX240, GX240K1, GX240U1, GX240UT1, GX240UT2, GX270, GX270H, GX270T, GX270T2, GX270U, GX270UT, GX270UT2, GX340, GX340K1, GX340T1, GX340T2, GX340U1, GX340UT1, GX390, GX390H1, GX390K1, GX390T1, GX390T2, GX390U1, GX390UT1, GX390UT2, GX440IU, GX610, GX610U1, GX620, GX620U1, GX640, GX670, GX690, GXV340RT2, GXV340T2, GXV390, GXV390K1, GXV390RT1, GXV610, GXV620, GXV670, GXV670U |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX340K1 (GC05) | GX340U1 (GCAMK) | GX340UT1 (GCAVT) | GX340T1 (GCAWT) | GX340T2 (GCBFT) | GX340K1 (GDAE) | GX270 (GCAB) | GX270 (GDAD) | GX270H (GCADH) | GX240K1 (GC04) | GX270T (GCADT) | GX270UT (GCAJT) | GX270U (GCALK) | GX270UT2 (GCBGT) | GX240U1 (GCAKK) | GX270T2 (GCBHT) | GX240UT1 (GCATT) | GX390K1 (GDAF) | GX390T1 (GCAET) | GX390H1 (GCAFH) | GX390UT1 (GCAKT) | GX390U1 (GCANK) | GX390UT2 (GCBCT) | GX240UT2 (GCBJT) | GX390T2 (GCBDT) | GX240K1 (GDAC) | GX390K1 (GCAA) | GX440IU (GCAWK) | GX610 (GCAC) | GX610U1 (GCAPK) | GX620 (GCAD) | GX620 (GDAH) | GX620U1 (GCARK) | GX640 (GAAD) | GX670 (GCAM) | GX690 (GDACK) | GXV610 (GJAC) | GXV620 (GJAD) | GXV670 (GJAH) | GXV670U (GJAHK) | GXV340T2 (GJABT) | GXV340RT2 (GJACT) | GXV390 (GJAA) | GXV390K1 (GEAD) | GXV390RT1 (GJADT) | GD320 (GPB) | GD321 (GPAD) | GD411 (GPAC) | EC5000 |
