Description
Overview:

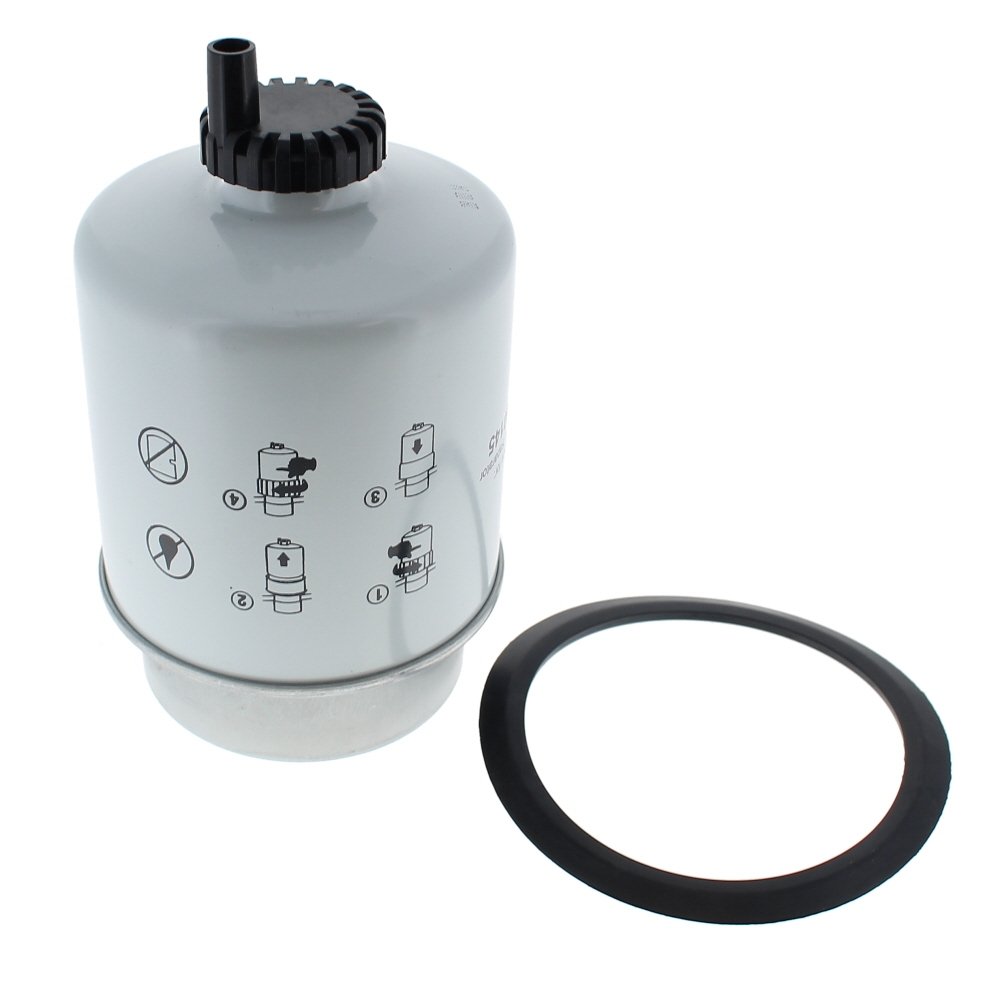

This Fuel Filter with Drain, OEM number Baldwin BF7679-D, is a Genuine part designed specifically for use in Caterpillar machinery. It is essential for maintaining the fuel system by filtering out contaminants and water from diesel fuel before it reaches the engine. The filter is situated within the fuel line to protect the injectors and the engine from damage. Compatible with a wide range of models including 1006-6, 120, 120C, 312C, and more.
Key Features:
- Dimensions: 129 x 83 mm
- Includes built-in drain for water removal
- Genuine part ensures Caterpillar compatibility
- Replaces Baldwin BF7679-D
- Essential for engine protection against contaminants
Typical Applications:
Used in Caterpillar excavators, loaders, and backhoes to protect fuel systems from dirt, rust, and water, preserving engine efficiency and longevity.
Also known as:
Fuel water separator, Diesel fuel filter, Fuel filtration assembly, Fuel water drain filter.
Fits Models:
1006-6, 120, 120C, 120H, 160CLC, 180E, 230C LC, 3126, 312BL, 315BL, 320BL, 320CLU, 375, 435C, 4400, 460DG, 504F, 544GTC, 550H, 584F, 624H, 706C, 710G, 800, 8160, 855K, 903C, 906, 908, 924F, 936F, 950F, 953C, AP650B, Bobcat 3440, Case IHC 1488LC, Compair 200, DX75, Fendt 5220E, Fiat M115, GEHL721, Liebherr D924 Series, Manitou AS200, Sullair 185, Taylor THD360.
Alternate Part Numbers:
MC162000080845, 206-6909SABRE, 285364, 162000081002, 10000.65564, FBW-BF7679D, 00303328573, 2250118-495, 3780299 M 1, 89/26560145, P2950591P, PDS-7.2.3, 02250153904, FS19577, P550502, FS19530, SFSK3446, FST-31649, WK814/3, 100.6374, 32921000, L3101F, FS19811, TFS BSF42, AG 3382, WK8128.
Product Specifications
| L&S Part No. | LF476 |
|---|---|
| Unit of Sale | 1 |
| Size | Size: 129 x 83 x 83mm |
| Fits Brands | Baldwin, Caterpillar, Clark, Crosland, Donaldson, Fleetguard, Greyfriars, Ingersoll Rand, JCB, Mann & Hummel, Massey Ferguson, Perkins, Stanadyne, TFS, Woodgate |
| Key Features | - Dimensions: 129mm height x 83mm diameter - Compatible with Caterpillar and Bobcat models - Replaces Baldwin BF7679-D filter - Includes drain for easy maintenance - Part numbers include 206-6909 and BF7679D |

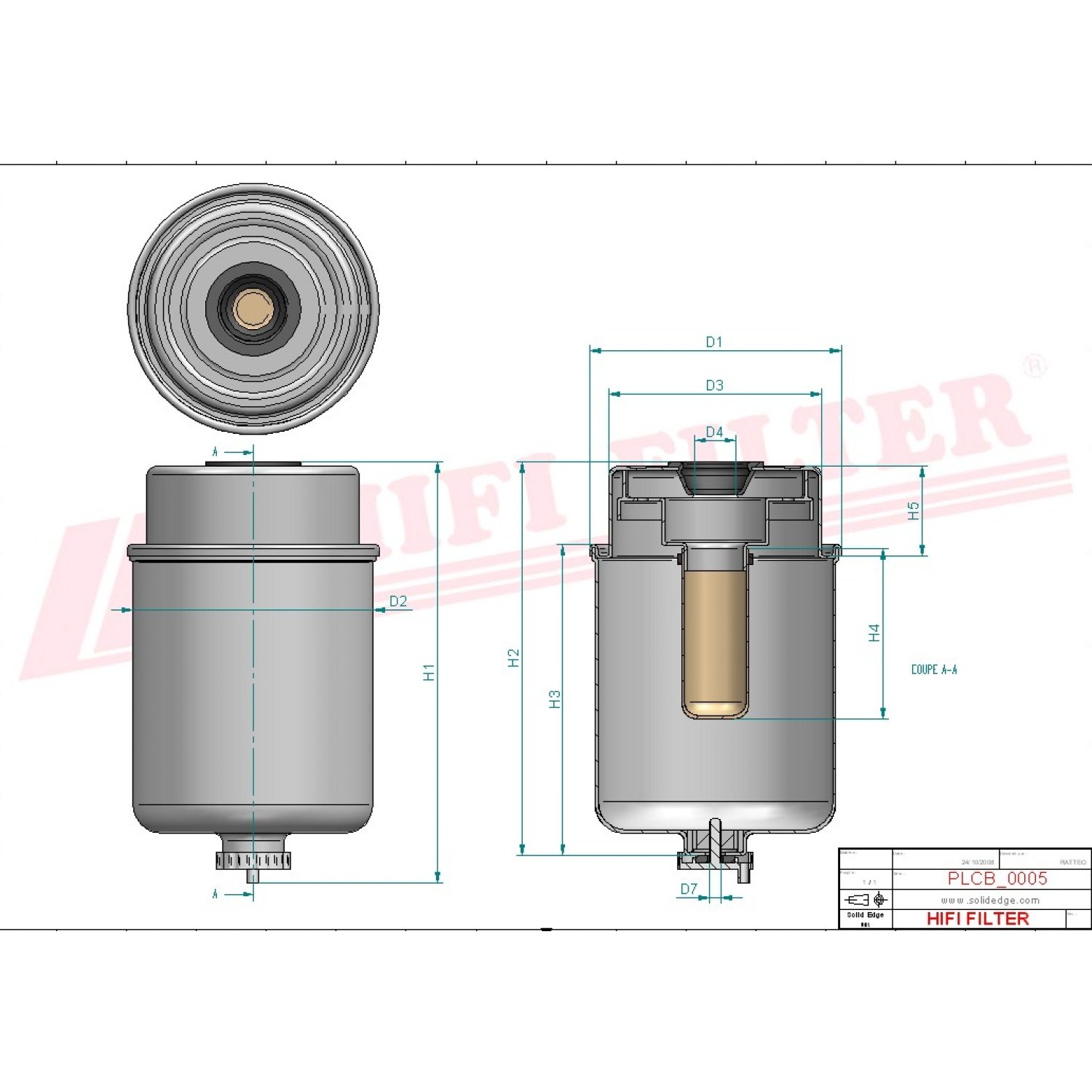

| Filter Specifications | D1: 84mm D2: 79mm D3: 69.5mm H1: 138mm H2: 120mm H3: 91.5mm Thread: 3/8"-16UNF |
| Fits Models | 802 | 320 | 322 | 303 | 305 |
