Description
Overview:

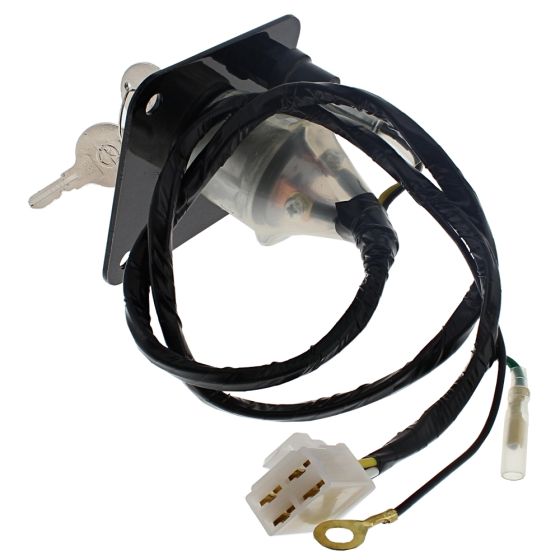

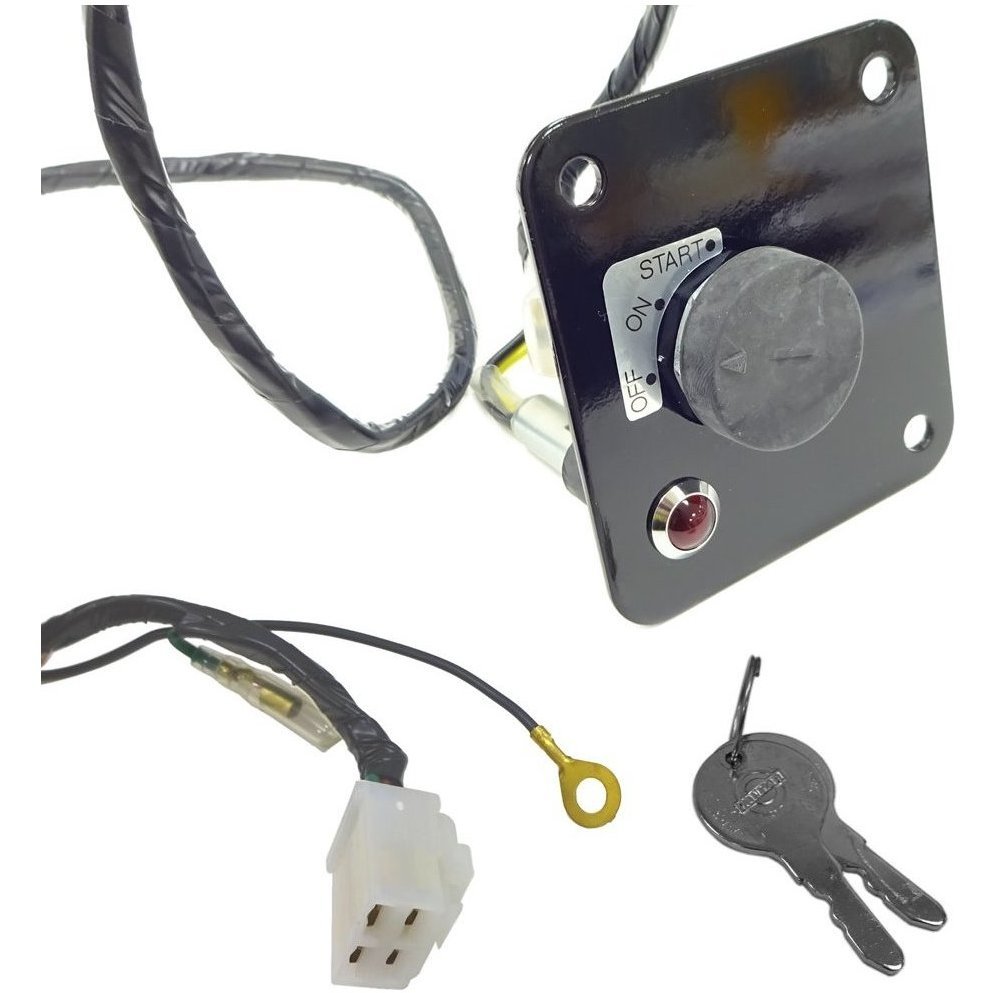

This ignition switch panel assembly is a complete, panel-mounted key switch unit for Yanmar L‐series single‐cylinder diesel engines, including L48AE and L70AE. It houses a 3‐position key switch that provides Off, Ignition (run) and Start functions to control the engine's electrical system and starter circuit. Built around a robust metal panel with a durable key barrel, it is suitable for construction plant, agricultural and garden machinery where reliability matters. Supplied with two 633 keys, it is designed to replace a worn or damaged panel and restore dependable starting and stopping. Branded Yanmar, it matches the original layout and appearance for a neat fit on compatible engines. Manufacturer Part Number: 114351‐77500 (also referenced as 11435177500).
Key Features:
- 3‐position keyed switch: Off / Ignition (run) / Start for simple, positive control
- Supplied with two 633 keys to keep a spare on hand
- Robust metal panel and hard‐wearing switch body for long service life in tough environments
- Direct panel assembly for swift replacement of damaged units
- Compatible with Yanmar L‐series engines listed, supporting a wide range of machines
- Clear detents and smooth key action to help consistent starting
- Helps protect wiring by keeping switching on a rigid mounting plate
- OEM-style fit and appearance to suit service and maintenance needs
- Yanmar MPN 114351‐77500; also referenced as 11435177500
- Suitable for generators, pumps, compactors, mowers and other small plant using L‐series diesels
Typical Applications:
Used on compactors, generators, water pumps, trench rammers, small mixers, mowers and similar machinery powered by Yanmar L‐series engines. Ideal for replacing faulty ignition panels to restore reliable start/stop control in workshop servicing, site repairs and fleet maintenance.
Also known as:
Starter switch panel, engine start/stop panel, key switch assembly, ignition control panel, ignition key barrel panel, engine control plate, switch plate for Yanmar L‐series.
Fits Models:
L100, L100AE, L100N, L40AE, L48, L48AE, L48N, L48N-S, L48NS, L60AE, L70, L70AE, L70N, L90AE
Alternate Part Numbers:
11435177500
