Description
Overview:

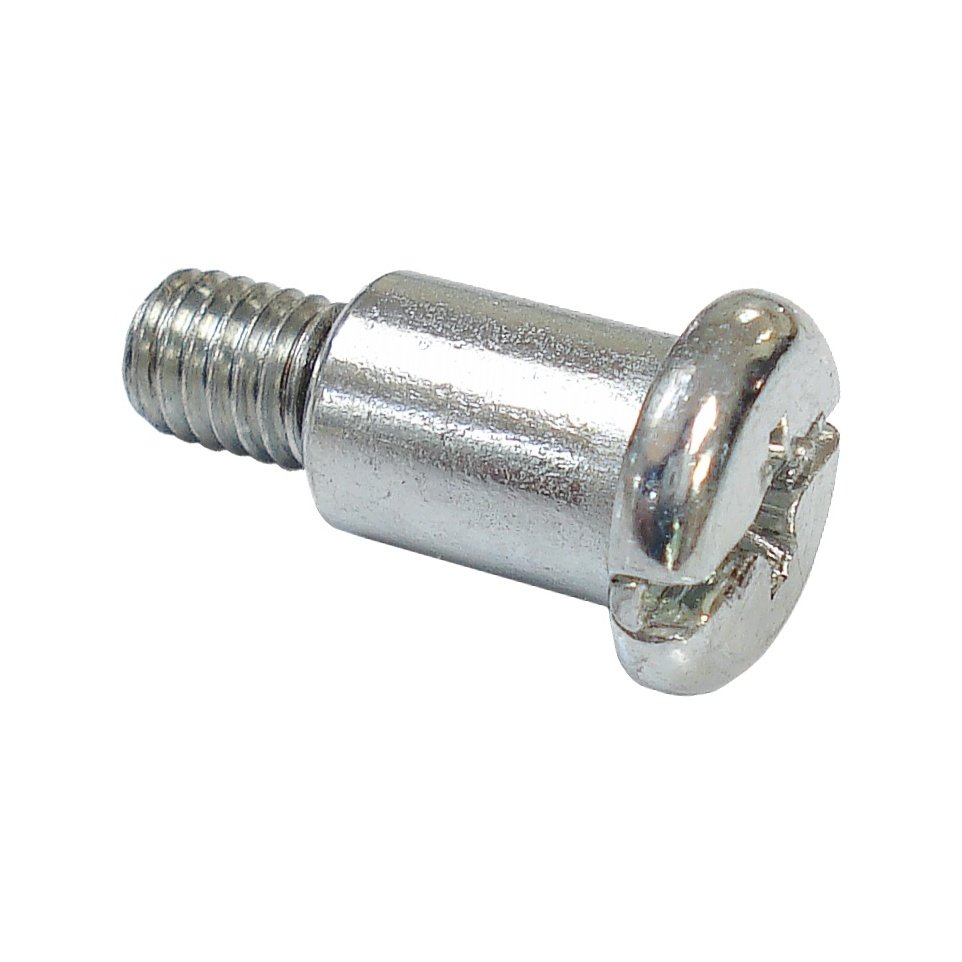

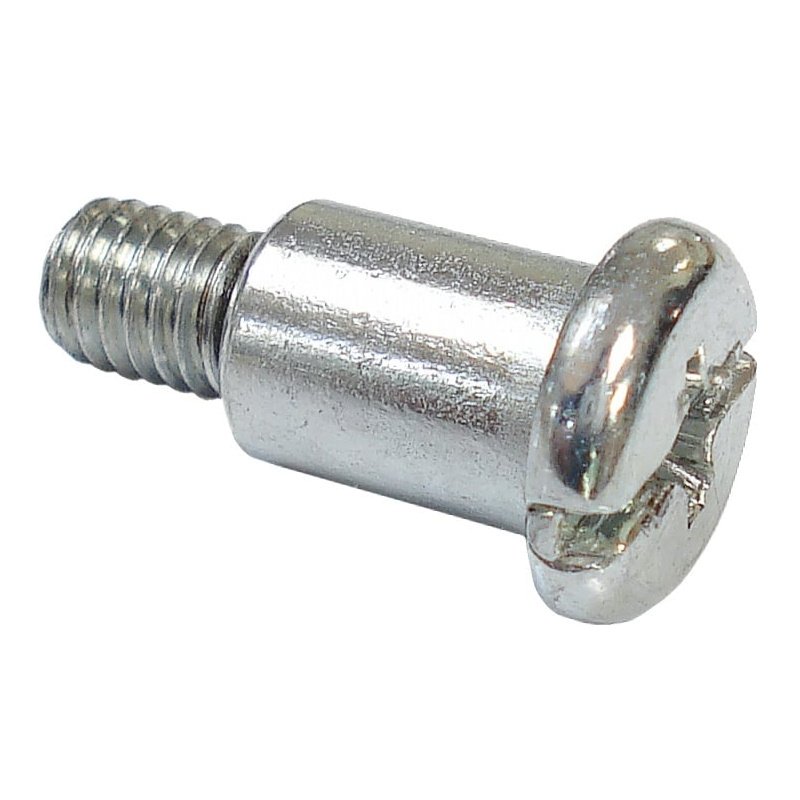

The Recoil Centre Bolt for Honda GX120, GX160, and GX200 (MPN 90003-ZH8-801) is a genuine Honda fastener that secures and sets the recoil starter assembly on a wide range of Honda petrol engines. Built from durable steel with a protective finish, it holds the recoil mechanism firmly in place to keep the pull-start smooth and dependable. This bolt is intended for recoil units with a black pulley and plastic pawls; engines fitted with a white pulley and metal pawls require a different part. Suitable for many compact engines used in generators, pumps, compactors, and professional lawn mowers such as the HRH536 series, it is a direct-fit OEM part that helps maintain correct engagement of the starter components and long-term reliability under regular use.
Key Features:
- Genuine Honda OEM part for assured compatibility and fitment
- Correct choice for recoil units with black pulley and plastic pawls
- Robust steel construction with a protective finish for durability and corrosion resistance
- Secures and sets the recoil mechanism to maintain smooth, consistent starting
- Helps keep pawl engagement aligned to prevent premature wear
- Simple to fit with basic hand tools for quick maintenance and repair
- Suitable across numerous GX-series engines including GX120, GX160, and GX200
- Reliable choice for professional service schedules and DIY upkeep
Typical Applications:
Used when rebuilding or servicing the recoil starter, or replacing a missing or damaged centre bolt. Common in generators, water pumps, pressure washers, plate compactors, and walk-behind mowers including Honda HRH536 variants. Ensures the pull-start assembly remains secure and correctly set for everyday starting performance in domestic, commercial, and hire-fleet environments.
Also known as:
Recoil centre setting screw, recoil starter centre bolt, recoil fixing bolt, pull-start centre screw, starter recoil bolt. These terms refer to the same central fastener that holds and sets the recoil assembly on compatible Honda engines with black pulley and plastic pawls.
Fits Models:
F720 Versatile, G100, GX100, GX120, GX120K1, GX120T1, GX120T2, GX120U1, GX120UT1, GX120UT2, GX160, GX160H1, GX160K1, GX160T1, GX160T2, GX160U1, GX160UT1, GX160UT2, GX200, GX200H, GX200T, GX200T2, GX200U, GX200UT, GX200UT2, GX270H, GX390H1, GX440IU, GXV160UH2, HRH536 QXE, HRH536K3 HXE, HRH536K3 QXE, HRH536K4 HXEH, HRH536K4 QXEH
Alternate Part Numbers:
90003-ZH8-801, 90003ZH8801
Product Specifications
| L&S Part No. | 90003 ZH8 801 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 90003ZH8801 |
| Unit of Sale | 1 |
| Applications | F720 Versatile, G100, GX100, GX120, GX120K1, GX120T1, GX120T2, GX120U1, GX120UT1, GX120UT2, GX160, GX160H1, GX160K1, GX160T1, GX160T2, GX160U1, GX160UT1, GX160UT2, GX200, GX200H, GX200T, GX200T2, GX200U, GX200UT, GX200UT2, GX270H, GX390H1, GX440IU, GXV160UH2, HRH536 QXE, HRH536K3 HXE, HRH536K3 QXE, HRH536K4 HXEH, HRH536K4 QXEH |
| Fits Brands | Honda |
| Fits Models | GX120K1 (GC01) | GX120T1 (GCAAT) | GX120UT1 (GCAGT) | GX200 (GCAE) | GX120U1 (GCAHK) | GX120UT2 (GCBMT) | GX200 (GDAB) | GX200T (GCACT) | GX120T2 (GCBNT) | GX160K1 (GC02) | GX160H1 (GCAAH) | GX160K1 (GCAAK) | GX160T1 (GCABT) | GX160U1 (GCACK) | GX160UT1 (GCAFT) | GX200UT (GCAHT) | GX160UT2 (GCBPT) | GX160T2 (GCBRT) | GX160K1 (GDAA) | GX200U (GCAJK) | GX200H (GCARH) | GX200UT2 (GCBTT) | GX200T2 (GCBUT) | GX270H (GCADH) | GX390H1 (GCAFH) | GX440IU (GCAWK) | GXV160UH2 (GJABH) | F720 Versatile | HRH536 QXE | HRH536K3 HXE | HRH536K3 QXE | HRH536K4 HXEH | HRH536K4 QXEH |
