Description
Overview:

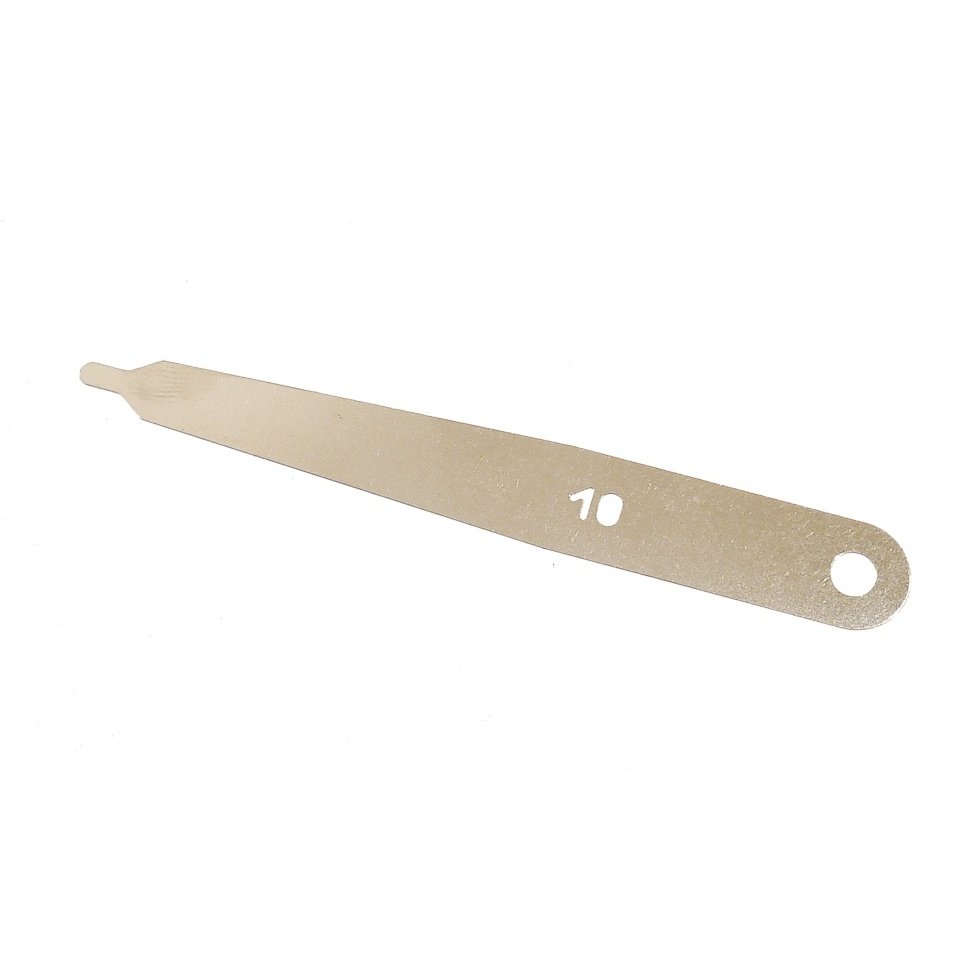

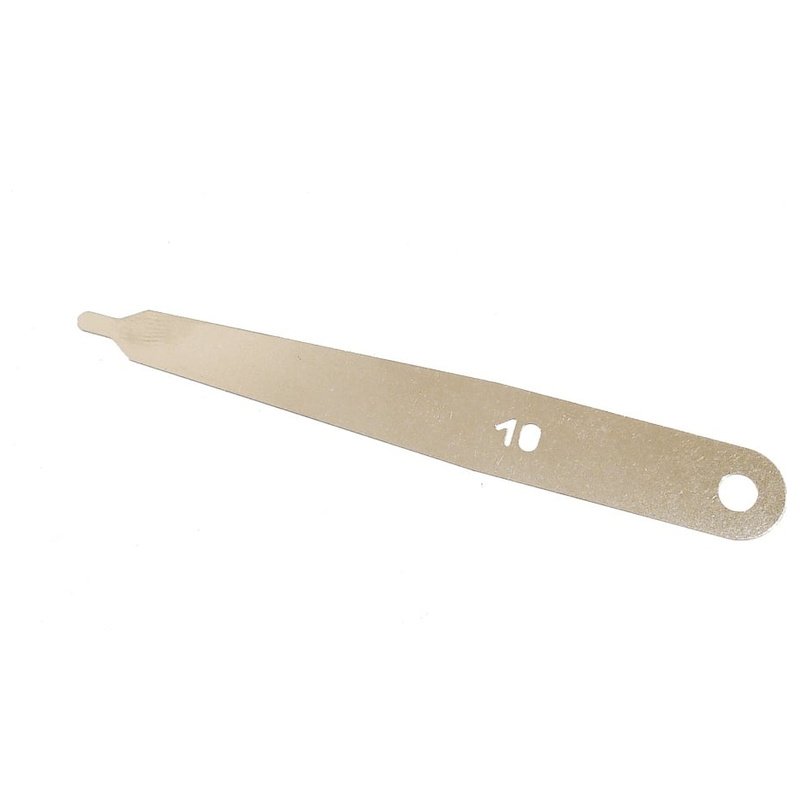

This Setting Gauge is a genuine Stihl service tool for accurate adjustment and calibration across a wide range of Stihl machines. Made from durable metal for long service life, it provides a stable reference when setting critical clearances or alignment points during routine maintenance. Its precise profile helps you achieve consistent results on engines and drive components used in trimmers, brushcutters, blowers, hedge trimmers and Kombi engines. Designed for direct compatibility with Stihl equipment, it fits popular models including the FS130 and FS130R. OEM Part Number: 4180 893 6400. As a Genuine Part, it offers the correct geometry and reliability needed by professional users and DIY owners to keep equipment running smoothly and within specification.
Key Features:
- Genuine Stihl part (OEM 4180 893 6400) for assured fit and accuracy
- Robust metal construction for durability in workshop and site conditions
- Precision-cut reference edges for repeatable, reliable settings
- Helps maintain performance, smooth running and fuel efficiency through correct setup
- Compact, flat form factor for easy storage in a tool pouch or service kit
- Simple to use with clear reference geometry; reduces trial-and-error
- Supports a wide range of Stihl 4-MIX and 2-stroke machines in one tool
- Corrosion-resistant finish for long-term use
- Useful during scheduled servicing, post-repair checks, and diagnostics
- Backed by Stihl manufacturing standards for consistency and longevity
Typical Applications:
Used during routine servicing of brushcutters, trimmers, blowers, hedge trimmers and pole pruners to verify and set critical clearances and alignments. Ideal after component changes (e.g. throttle cables, carburettor cleaning, spark plug replacement) and during seasonal checks. Suitable for workshop technicians, grounds teams and homeowners who want consistent, manufacturer-accurate setup on Stihl engines and attachments.
Also known as:
Setup gauge, tuning gauge, valve clearance gauge, service gauge, adjustment plate, measuring gauge, alignment template, reference gauge, mechanics' setting tool.
Fits Models:
BR500, BR550, BR600, BR700, BT 130, BT 130 Z, BT 131, BT130, BT130Z, BT131, FC 100, FC 111, FC 90, FC 91, FC100, FC110, FC111, FC90, FC91, FC95, FC96, FR130T, FR131T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS120, FS130, FS130R, FS131, FS131R, FS200, FS250, FS310, FS311, FS83, FS83T, FS87, FS87R, FS89, FS89R, FS90, FS90R, FS91, FS91R, FT100, HL 95, HL 95 K, HL100, HL100K, HL90, HL90K, HL95, HL95K, HT100, HT101, HT102, HT103, HT130, HT131, HT132, HT133, HT135, HT73, KM100, KM100R, KM110R, KM111R, KM130, KM130R, KM131, KM131R, KM90, KM90R, KM91R
Alternate Part Numbers:
4180-893-6400, 41808936400
Product Specifications
| L&S Part No. | 4180 893 6400 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 41808936400 |
| Unit of Sale | 1 |
| Applications | BR500, BR550, BR600, BR700, BT 130, BT 130 Z, BT 131, BT130, BT130Z, BT131, FC 100, FC 111, FC 90, FC 91, FC100, FC110, FC111, FC90, FC91, FC95, FC96, FR130T, FR131T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS120, FS130, FS130R, FS131, FS131R, FS200, FS250, FS310, FS311, FS83, FS83T, FS87, FS87R, FS89, FS89R, FS90, FS90R, FS91, FS91R, FT100, HL 95, HL 95 K, HL100, HL100K, HL90, HL90K, HL95, HL95K, HT100, HT101, HT102, HT103, HT130, HT131, HT132, HT133, HT135, HT73, KM100, KM100R, KM110R, KM111R, KM130, KM130R, KM131, KM131R, KM90, KM90R, KM91R |
| Machine Type | Backpack Brushcutters, Brushcutters, Pole Pruners, Edging Trowel |
| Fits Brands | Stihl |
| Fits Models | FS83, FS83T | FS90, FS90R | FS100, FS110 | FS120, FS200, FS250 | FS130, FS130R | FS310 | BR500 | FS91, FS91R | FS111, FS111R, FS111RX | FS131, FS131R | FS311 | FR130T | FR131T | FS89, FS89R | HT73 | HT101 | HT102, HT103 | HT130 | HT131 | HT132, HT133 | KM90, KM90R | KM91R | KM100, KM100R, KM110R | KM111R Engines | KM130, KM130R | KM131, KM131R | FC 90, 95 | FC 100 | FC 111 | BT 130 | BT 131 | BT 130 Z | FC 91, 96 | HL90K, HL90, HL95K | HL100, HL100K | BR550 | BR600 | BR700 | HL 95, HL 95 K | HT135 | HT134 |
