Description
Overview:

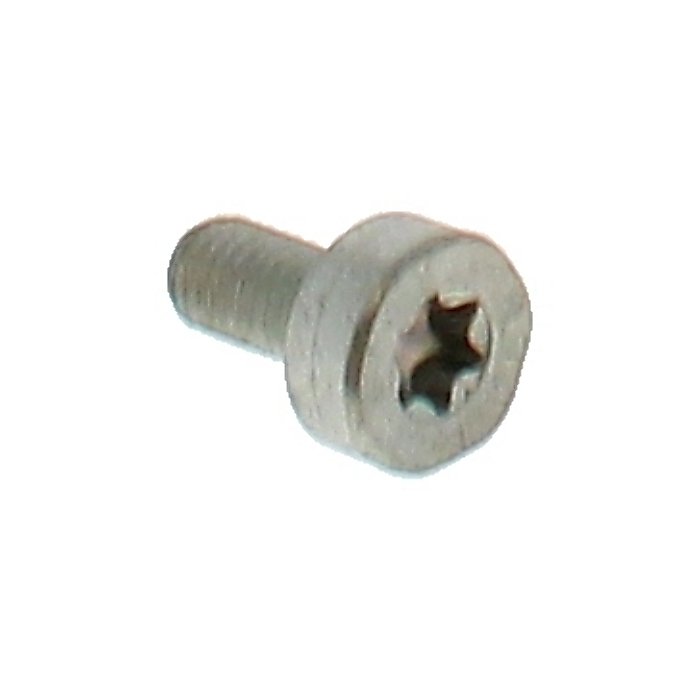

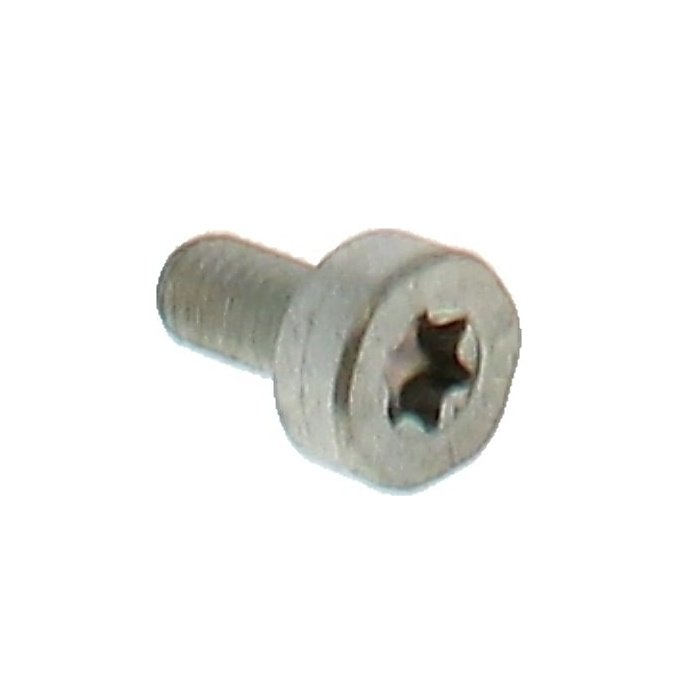

The Spline Screw IS‐M5x10 is a genuine Stihl OEM fastener designed for secure, repeatable fixing in a wide range of Stihl equipment. Made from high‐strength steel with a protective finish, it provides reliable clamping under vibration and everyday use. The internal spline (IS) drive allows firm tool engagement to help reduce cam‐out and damage to the head. Sized M5 x 10 mm (5 mm diameter x 10 mm length), it suits precise assemblies found across Stihl handheld tools and attachments, including the 019T and FS160. Identified by Manufacturer Part Number 9022 341 0950, this screw is built to Stihl's specification for durability and fit, making it a dependable choice for maintenance and repair where accurate fastening is essential.
Key Features:
- Genuine Stihl OEM part (MPN 9022 341 0950) for assured fit and performance
- Metric M5 x 10 mm size for common Stihl assemblies and sub‐assemblies
- Internal spline drive for positive engagement and reduced tool slip
- High‐strength steel construction for dependable clamping under load
- Protective finish to help resist wear and corrosion in outdoor use
- Precision threads for smooth installation and consistent tightening
- Suitable for vibration‐prone tools such as brushcutters, trimmers and hedge trimmers
- Ideal for replacing worn or missing fixings during routine servicing
- Supports long service life of equipment by maintaining secure joints
Typical Applications:
Used to secure covers, guards, handle frames, gear head components, and attachment interfaces on Stihl machines. Common in maintenance tasks such as refitting housings after servicing, replacing damaged fasteners, or stabilising assemblies on brushcutters, hedge trimmers, kombi attachments, earth augers and top‐handle chainsaws.
Also known as:
Internal‐spline screw, IS fastener, M5 x 10 machine screw, M5 fixing, retaining screw, metric bolt, mounting screw, M5 machine bolt, fastener.
Fits Models:
019T, BC 20, BC 3, BC 35, BC-KM, BC20, BC3, BC30, BC35, BC40, BCKM, BF-KM, BFKM, BT 120 C, BT 121, BT 121 Z, BT120C, BT121, BT121Z, FBD-KM, FBDKM, FH-KM, FH-KM 0-90 deg, FH-KM0-90deg, FH75, FHKM, FR106, FR108, FR125, FR135, FR145, FS160, FS180, FS48, FS50, FS51, FS52, FS56, FS56C, FS56R, FS62, FS66, FS81, FS86, FS96, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL-KM, HL-KM 0-90 deg, HL-KM0-90deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HLKM, HS60, HS61, MS190T, MS191T
Alternate Part Numbers:
9022-341-0950, 90223410950
Product Specifications
| L&S Part No. | 9022 341 0950 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223410950 |
| Unit of Sale | 1 |
| Applications | 019T, BC 20, BC 3, BC 35, BC-KM, BC20, BC3, BC30, BC35, BC40, BCKM, BF-KM, BFKM, BT 120 C, BT 121, BT 121 Z, BT120C, BT121, BT121Z, FBD-KM, FBDKM, FH-KM, FH-KM 0-90 deg, FH-KM0-90deg, FH75, FHKM, FR106, FR108, FR125, FR135, FR145, FS160, FS180, FS48, FS50, FS51, FS52, FS56, FS56C, FS56R, FS62, FS66, FS81, FS86, FS96, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL-KM, HL-KM 0-90 deg, HL-KM0-90deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HLKM, HS60, HS61, MS190T, MS191T |
| Machine Type | Brushcutters, Chainsaws, Pole Pruners, Kombi Tools, Mist Blowers, Edging Trowel, Augers, Hedge trimmers |
| Fits Brands | Stihl |
| Fits Models | FS56, FS56C, FS56R | HS60, HS61 | FS48, FS52, FS56 | FS50, FS51 | FS62, FS66 | FS81, FS86 | FS96 | FS160, FS180 | FR106 | FR125, FR135, FR145 | FR108 | 019T | MS190T | MS191T | BC-KM, BF-KM | FBD-KM | FH-KM 0-90 deg | HL-KM 0-90 deg | BC 3, BC 20, BC 35 | BT 120 C | BT 121 | BT 121 Z | HL73, HL73K | HL75, HL75K | HL100, HL100K | HEL 600 K | HEL 600 | HEL 700 K | HEL 700 | BC30 | BC35 | BC20 | BC3 | FH 0° - 90 ° | HL 0° - 90° |
