Description
Overview:

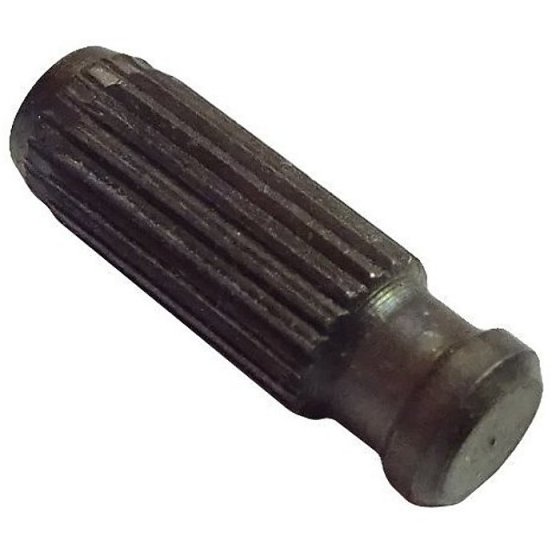

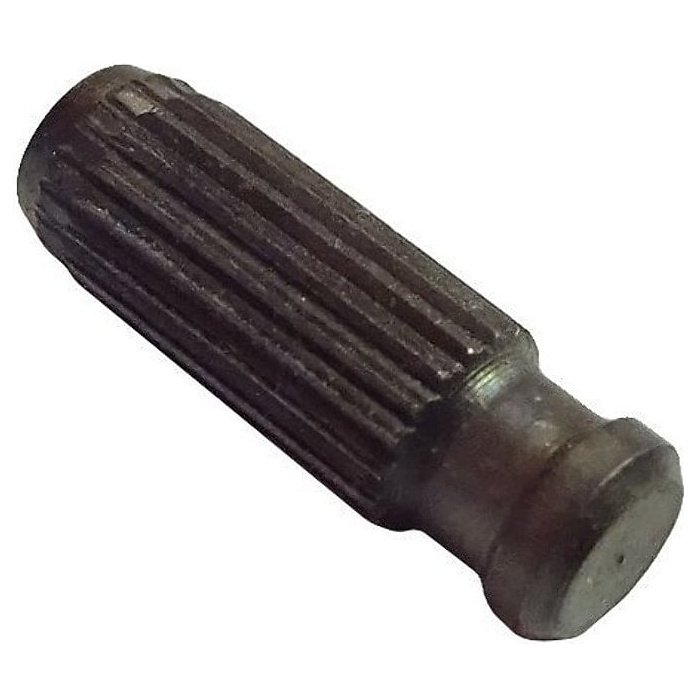

This genuine Stihl pin is a small but critical hardware component used across a wide range of Stihl machines, including popular chainsaws such as the MS440 and 064. Manufactured from hardened steel for strength and wear resistance, it serves as a locating or pivot pin within specified assemblies, helping to keep linkages and housings aligned so the machine operates smoothly. When a pin becomes worn, bent, or lost during maintenance, replacing it with the correct OEM part restores secure fitment and reliable function. Supplied under Stihl part number 1120 162 5200, it offers the correct dimensions and tolerance for a direct fit without modification. Suitable for both professional users and DIY owners who need dependable, long-lasting small parts. Genuine Stihl Part.
Key Features:
- Genuine Stihl OEM component for assured fit and compatibility (OEM P/N: 1120 162 5200)
- Hardened steel construction for durability under vibration and load
- Maintains correct alignment of linkages and housings to support smooth operation
- Direct replacement; no modification required when matched to the correct model
- Helps prevent excessive wear on adjoining parts by securing components properly
- Suitable for a wide model range across petrol, battery, and cut-off machines
- Reliable solution for routine servicing and repair after impact or wear
- Compact part that is easy to store as a service item or field spare
- Supports long-term machine reliability and safe operation
Typical Applications:
Used in machine sub-assemblies where a precise pivot or location point is needed, such as control linkages, covers, guards, or brake and handle assemblies as specified in each model's parts diagram. Ideal for restoring correct fit after wear, vibration, or accidental damage on Stihl chainsaws, cut-off saws, and earth augers.
Also known as:
Locating pin, pivot pin, dowel pin, machine pin, retaining pin, linkage pin, service pin, hardware pin, replacement pin, Stihl OEM pin.
Fits Models:
009, 010, 011, 012, 017, 018, 019T, 020, 020T, 024, 026, 028, 028AV, 029, 030, 031, 034, 036, 036QS, 039, 044, 046, 050, 051, 056, 064, 066, 076, 084, 088, BT 120 C, BT 121, BT 121 Z, BT 130, BT 130 Z, BT 131, MS150C, MS150T C, MS151C, MS151TC, MS162, MS162C, MS170, MS170C, MS171, MS171C, MS172, MS172C, MS180, MS180C, MS181, MS181C, MS190T, MS191T, MS192C, MS192T, MS192TC, MS193C, MS193T, MS193TC, MS194T, MS194TC, MS200, MS200T, MS201, MS201C, MS201T, MS201TC, MS211, MS211C, MS240, MS241C, MS260, MS260C, MS261, MS261C, MS270, MS270C, MS271, MS271C, MS280, MS280C, MS290, MS291, MS291C, MS310, MS311, MS340, MS341, MS360, MS360C, MS361, MS361C, MS362, MS362C, MS382, MS390, MS391, MS400C, MS440, MS441, MS441C, MS460, MS461, MS462, MS462C, MS500i, MS640, MS650, MS651, MS660, MS661, MS661C, MS780, MS880, MSA220T, MSA220TC, MSA300, MSA300C, TS440
Alternate Part Numbers:
1120-162-5200, 11201625200
Product Specifications
| L&S Part No. | 1120 162 5200 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 11201625200 |
| Unit of Sale | 1 |
| Applications | 009, 010, 011, 012, 017, 018, 019T, 020, 020T, 024, 026, 028, 028AV, 029, 030, 031, 034, 036, 036QS, 039, 044, 046, 050, 051, 056, 064, 066, 076, 084, 088, BT 120 C, BT 121, BT 121 Z, BT 130, BT 130 Z, BT 131, BT106, BT120C, BT121, BT121Z, BT130, BT130Z, BT131, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS162, MS162 / MS162C, MS162C, MS170, MS170C, MS171, MS171C, MS172, MS172 / MS172C, MS172C, MS180, MS180C, MS181, MS181C, MS190T, MS191T, MS192C, MS192T, MS192TC, MS193C, MS193T, MS193TC, MS194T, MS194T / MS194TC, MS194TC, MS200, MS200T, MS201, MS201C, MS201T, MS201TC, MS211, MS211C, MS240, MS241C, MS260, MS260C, MS261, MS261C, MS270, MS270C, MS271, MS271C, MS280, MS280C, MS290, MS291, MS291C, MS310, MS311, MS340, MS341, MS360, MS360C, MS361, MS361C, MS362, MS362C, MS382, MS390, MS391, MS400C, MS440, MS441, MS441C, MS460, MS461, MS462, MS462C, MS500i, MS640, MS650, MS651, MS660, MS661, MS661C, MS780, MS880, MSA220T, MSA220TC, MSA300, MSA300 / MSA300C, MSA300C, TS440 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS170, MS170C | MS180, MS180C | MS200, MS200T | MS260, MS260C | MS290, MS310, MS390 | 030, 031 | 029, 039 | MS270, MS270C, MS280, MS280C | 028, 028AV | MS361, MS361C | MS440 | MS192C, MS192T, MS192TC | MS460 | MS240 | MS340 | MS360, MS360C | MS640 | MS171, MS171C | MS181, MS181C | MS211, MS211C | 009 | MS201, MS201C, MS201T, MS201TC | MS362, MS362C | MS261, MS261C | MS441, MS441C | MS150T C | TS440 | 010, 011 | 012 | 017 | 018 | 019T | 020, 020T | 024 | 026 | 034 | MS241C | MS271, MS271C, MS291, MS291C | MS311 | MS341 | MS382 | MS391 | MS461 | MS462, MS462C | MS650 | MS651 | MS660 | MS661, MS661C | MS780 | MS880 | MS150C | 036 | 036QS | 044 | 046 | 050, 051 | 056 | 064 | 076 | 084 | 088 | MS190T | MS191T | MS193C, MS193T, MS193TC | 066 | BT 130 | BT 131 | BT 120 C | BT 121 | BT 121 Z | BT 130 Z | MS500i | MS151C, MS151TC | MS194T / MS194TC | MS400C | MS162 / MS162C | MS172 / MS172C | MSA220T | MSA220TC | MSA300 / MSA300C | MS212 / MS212C | MS182 / MS182C | MC 200 |
