Description
Overview:

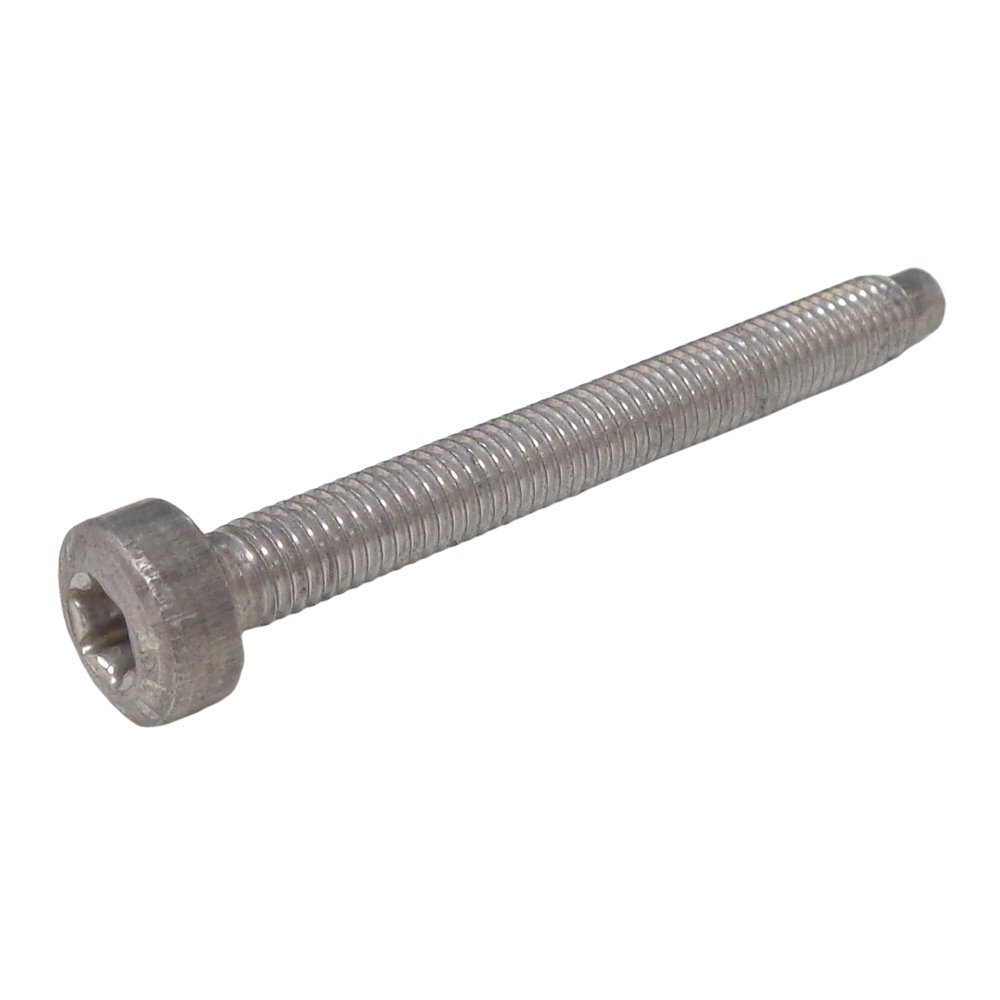

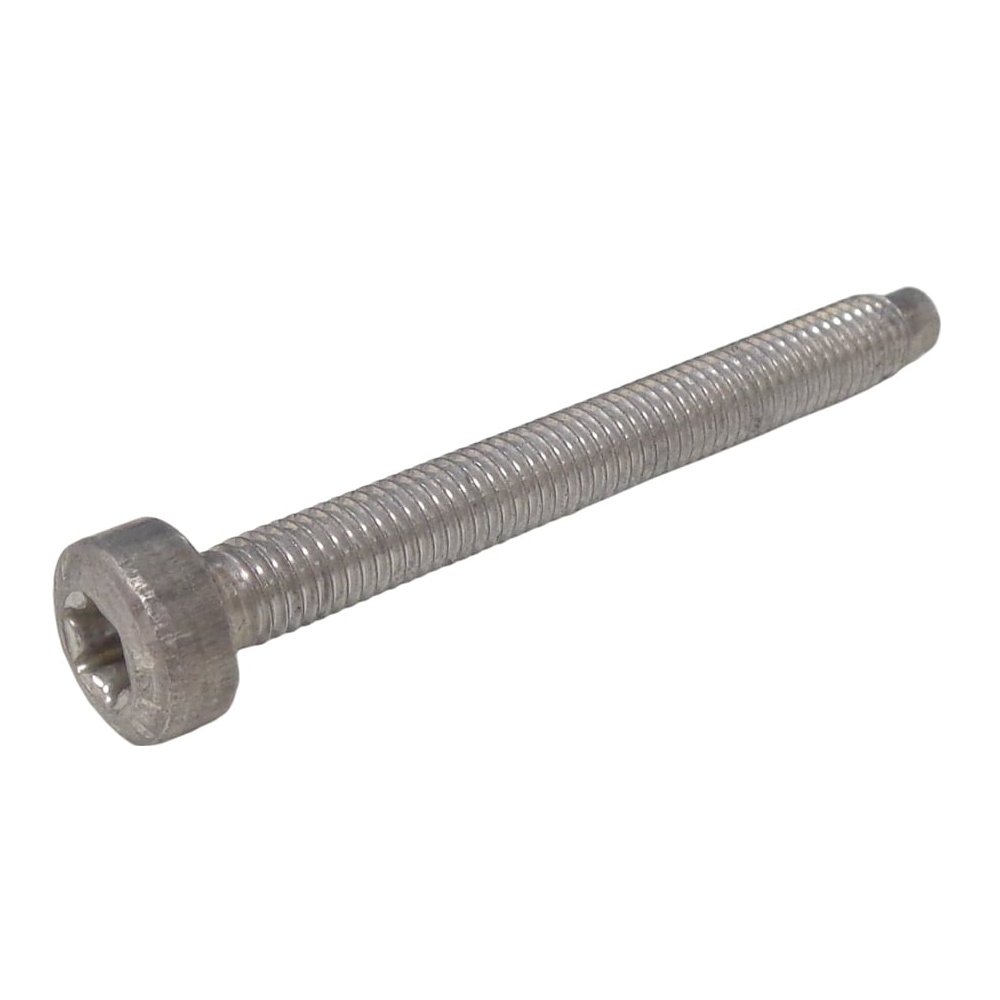

The Spline Screw IS‐M5x44 is a genuine Stihl OEM steel fixing designed to secure assemblies on selected Stihl chainsaws, including the MS 201 and MS 150 C. With an M5 thread and 44 mm overall length, it provides a precise, tight fit where a star/spline drive is specified. Built for dependable retention under vibration, it helps maintain alignment and safety of critical components over long service intervals. Supplied under Manufacturer Part Number (MPN) 9022 500 1093, this screw is engineered for consistent performance in both workshop and field repairs. It is a straightforward replacement for worn or missing hardware, helping to restore factory-standard fit and function on compact professional and homeowner chainsaws.
Key Features:
- Genuine Stihl part for assured compatibility and fit (MPN 9022 500 1093)
- M5 x 44 sizing for accurate, secure fastening in designated locations
- Internal spline (star) drive reduces cam-out and allows reliable torque transfer
- Steel construction for strength and resistance to wear in high-vibration use
- Smooth, predictable installation and removal with the correct spline driver
- Suitable for routine maintenance and like‐for‐like hardware replacement
- Helps preserve equipment safety, alignment, and performance over time
- Fits multiple compact Stihl chainsaw models for convenient spares management
Typical Applications:
Used to fasten covers, housings, guide assemblies, and other structural parts on compact Stihl chainsaws. Ideal for replacing missing, rounded, or corroded fixings during servicing, bar and chain changes, filter and cover maintenance, or after accidental damage. Suitable for workshop overhauls, site repairs, and routine fleet maintenance where a robust M5 star‐drive screw is specified by Stihl.
Also known as:
Machine fixing, threaded fixing, star‐drive fixing, internal spline drive screw, Torx‐style M5 x 44 hardware, spline‐drive M5 fastener, retaining hardware, M5 x 44 machine fitting, star‐head M5 chain saw fixing.
Fits Models:
MS 150 C, MS 150 T C, MS 151 C, MS 151 TC, MS 201, MS 201 C, MS 201 T, MS 201 TC
Product Specifications
| L&S Part No. | 9022 500 1093 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90225001093 |
| Unit of Sale | 1 |
| Applications | MS 150 C, MS 150 T C, MS 151 C, MS 151 TC, MS 201, MS 201 C, MS 201 T, MS 201 TC, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS201, MS201C, MS201T, MS201TC |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS201, MS201C, MS201T, MS201TC | MS150T C | MS150C | MS151C, MS151TC |
