Description
Overview:

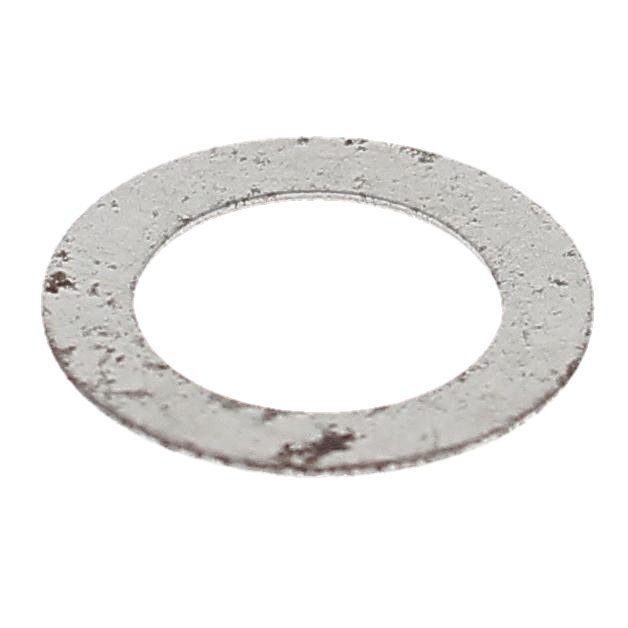

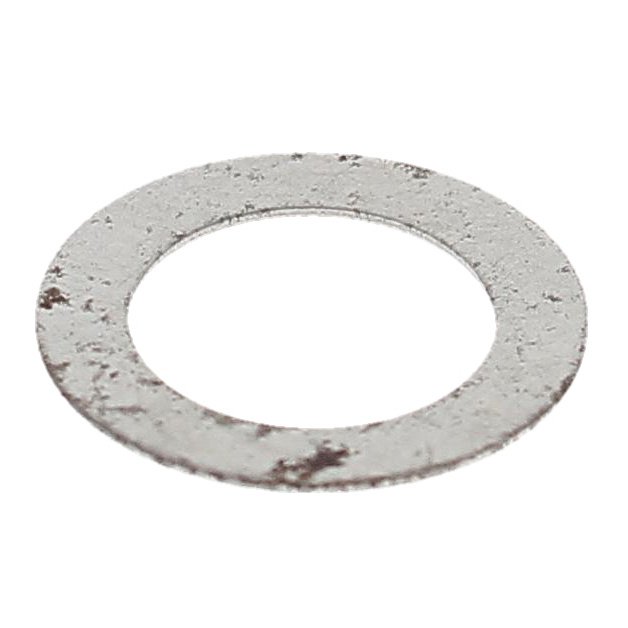

This is a genuine Stihl flat steel washer used as a precision spacer within mechanical assemblies. Sized at 10 mm x 16 mm x 1.5 mm (0.39 in x 0.63 in x 0.06 in), it maintains correct clearance, alignment, and load distribution to protect nearby parts from wear. It is suitable for Stihl special-purpose units and walk‐behind lawn mowers, including SP400 and SP450. Manufactured to Stihl tolerances, it fits snugly where a 10 mm internal diameter spacer is specified, helping to minimise vibration-related movement and extend service life. The washer is easy to install during routine maintenance or repairs and is identified under Stihl reference 9296 021 1569. A dependable choice when replacing worn or missing spacers in compatible Stihl machines.
Key Features:
- Genuine Stihl part for assured fit and reliability on listed models
- Dimensions: 10 mm x 16 mm x 1.5 mm (0.39 in x 0.63 in x 0.06 in)
- Flat steel construction provides strength and consistent clamping
- Maintains precise spacing and component alignment to reduce play
- Helps prevent wear and galling between mating parts
- Distributes load evenly to protect bearings, housings, and shafts
- Quick, straightforward installation with standard workshop tools
- Suitable for high‐vibration garden and construction machinery environments
Typical Applications:
Used as a distance washer within mechanical stacks in Stihl special‐purpose units and petrol lawn mowers. Common where a 10 mm bore spacer is required to set axial clearance, prevent metal‐to‐metal contact, and keep pulleys, gears, or brackets aligned. Helpful during servicing of drive components and general assembly rebuilds.
Also known as:
Shim, spacer washer, distance washer, plain washer (10 mm ID), packing washer, shim washer, spacer ring.
Fits Models:
MB 455 BC, MB 505 BS, MB 545.0 VS, MB 555 BS, MB 555 KS, MB 555 PRO, MB 650.0 KS, MB 650.0 OS, MB 650.0 VS, MB 655.0 GS, MB 655.0 KS, MB 655.0 OS, MB 655.1 GS, MB 655.1 RS, MB 655.1 VS, MB 655.2 RS, MB 750.1 KS, MB 750.2 KS, MB 755.0 KS, MB 755.1 KS, MB 755.2 KS, MB 756.0 YC, MB 756.0 YS, MB 858.0, MB455BC, MB505BS, MB545.0VS, MB555BS, MB555KS, MB555PRO, MB650.0KS, MB650.0OS, MB650.0VS, MB655.0GS, MB655.0KS, MB655.0OS, MB655.1GS, MB655.1RS, MB655.1VS, MB655.2RS, MB750.1KS, MB750.2KS, MB755.0KS, MB755.1KS, MB755.2KS, MB756.0YC, MB756.0YS, MB858.0, MB8580, SP200, SP400, SP450
Alternate Part Numbers:
9296-021-1569, 92960211569
Product Specifications
| L&S Part No. | 9296 021 1569 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 92960211569 |
| Unit of Sale | 1 |
| Applications | MB 455 BC, MB 505 BS, MB 545.0 VS, MB 555 BS, MB 555 KS, MB 555 PRO, MB 650.0 KS, MB 650.0 OS, MB 650.0 VS, MB 655.0 GS, MB 655.0 KS, MB 655.0 OS, MB 655.1 GS, MB 655.1 RS, MB 655.1 VS, MB 655.2 RS, MB 750.1 KS, MB 750.2 KS, MB 755.0 KS, MB 755.1 KS, MB 755.2 KS, MB 756.0 YC, MB 756.0 YS, MB 858.0, MB455BC, MB505BS, MB545.0VS, MB555BS, MB555KS, MB555PRO, MB650.0KS, MB650.0OS, MB650.0VS, MB655.0GS, MB655.0KS, MB655.0OS, MB655.1GS, MB655.1RS, MB655.1VS, MB655.2RS, MB750.1KS, MB750.2KS, MB755.0KS, MB755.1KS, MB755.2KS, MB756.0YC, MB756.0YS, MB858.0, MB8580, SP200, SP400, SP450 |
| Machine Type | Special Tools |
| Fits Brands | Stihl |
| Fits Models | MB 455 BC | MB 505 BS | MB 545.0 VS | MB 555 PRO | MB 555 BS | MB 555 KS | MB 650.0 OS | MB 650.0 KS | MB 650.0 VS | MB 655.0 GS | MB 655.1 GS | MB 655.0 KS | MB 655.0 OS | MB 655.1 RS | MB 655.2 RS | MB 655.1 VS | MB 756.0 YC | MB 750.1 KS | MB 750.2 KS | MB 755.0 KS | MB 755.1 KS | MB 755.2 KS | MB 756.0 YS | MB 858.0 |
