Description
Overview:

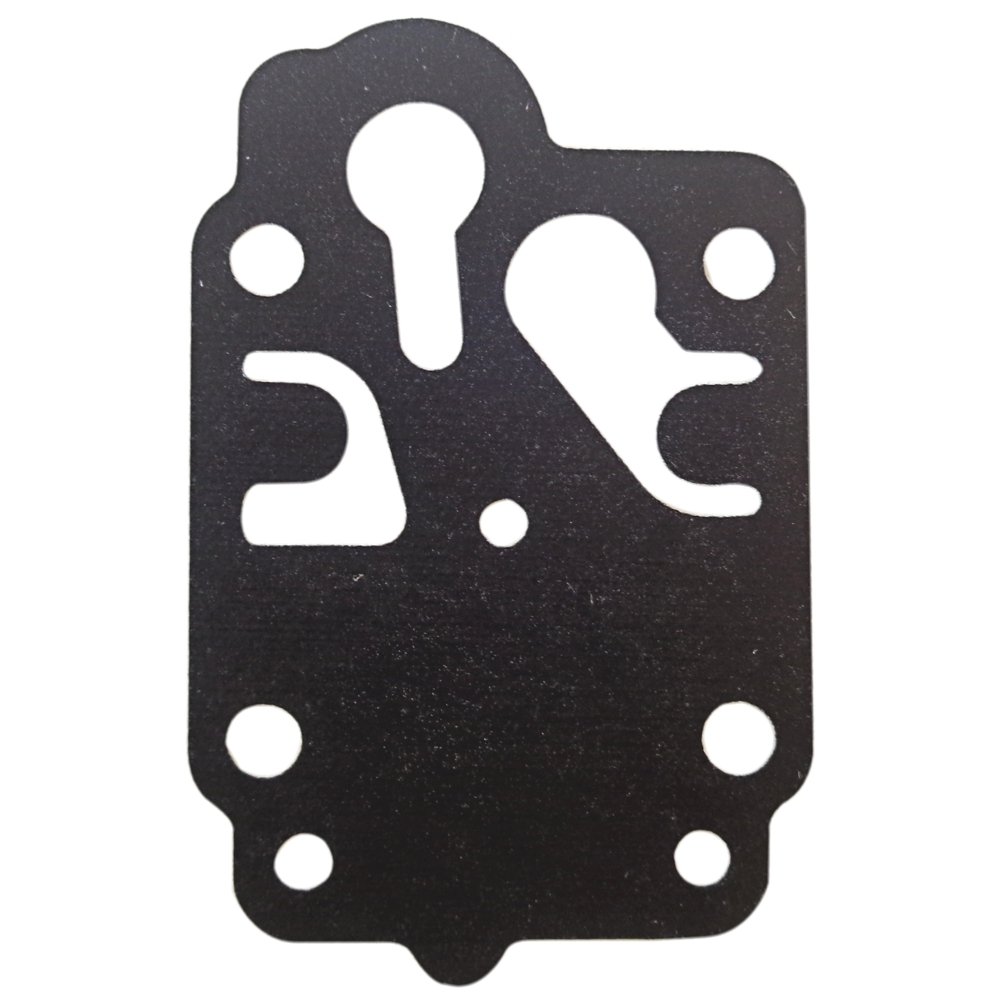

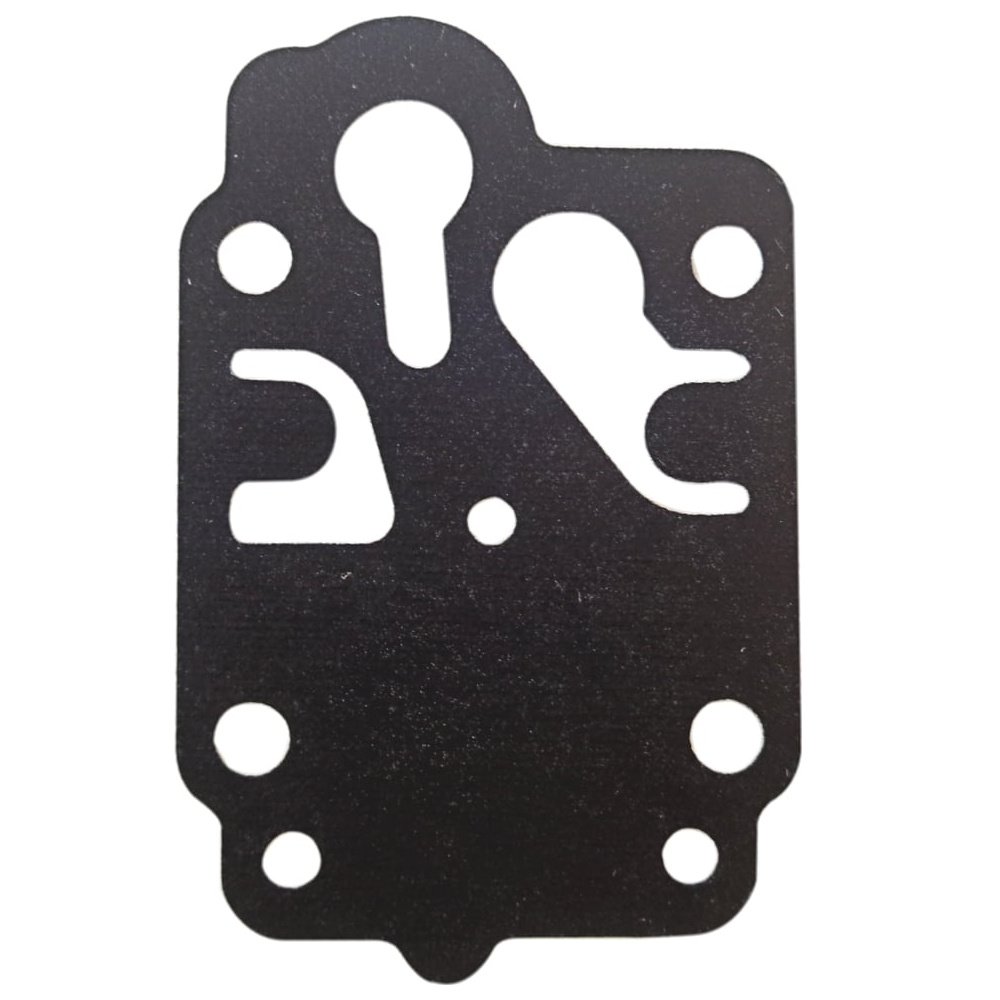

This Diaphragm Pump is a Genuine Honda part for small four‐stroke engines, including the GX22 and GX25 ranges, and also suits GX31 and GX35 variants. It sits within the carburettor assembly to help draw and meter fuel, keeping an air‐tight seal so the engine starts cleanly and runs steadily. Built from durable, fuel‐resistant diaphragm materials, it is designed for long service in handheld and portable equipment. The precise moulding and port layout match Honda specifications for an accurate, leak‐free fit. Ideal for brushcutters, hedge trimmers and multi‐tools that use these engines, it restores proper priming and fuel delivery without modification. Part number 16014‐ZM3‐004 supports reliable everyday use in garden and light construction tools where consistent performance and easy maintenance are essential.
Key Features:
- Genuine Honda OEM part for assured fit and longevity (16014‐ZM3‐004)
- Maintains an air‐tight seal in the carburettor to protect performance
- Restores proper priming and fuel delivery for smoother starting and running
- Designed to integrate with Honda GX22, GX25, GX31 and GX35 engine families
- Fuel‐resistant diaphragm construction for durability in everyday use
- Accurate fitment reduces the risk of leaks and air ingress
- Helps cure hard starting, surging and stalling linked to worn diaphragms
- Compact, lightweight component that is straightforward to install
- Supports reliable idle and throttle response under varying loads
Typical Applications:
Used in the carburettors of Honda‐powered brushcutters, line trimmers, hedge trimmers, multi‐tools and similar handheld machinery. Replace when priming is weak, the engine is difficult to start, or there are signs of fuel starvation. Suitable for routine servicing to keep small four‐stroke equipment running efficiently and to reduce downtime on site or in the garden.
Also known as:
Carburettor diaphragm pump, fuel pump diaphragm, carb diaphragm, primer pump diaphragm, carburettor pump seal, metering diaphragm, diaphragm seal, fuel metering membrane.
Fits Models:
GX22, GX25, GX25N, GX25NT, GX25T, GX31, GX35, GX35N, GX35NT, GX35T, HHE31C, HHH25S 75E, HHH25S75E, HHT25S, HHT31S, HHT35S, UMK 425 LE, UMK 435 UE, UMK422, UMK425LE, UMK435UE
Alternate Part Numbers:
16014-ZM3-004, 16014ZM3004
Product Specifications
| L&S Part No. | 16014 ZM3 004 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 16014ZM3004 |
| Unit of Sale | 1 |
| Applications | GX22, GX25, GX25N, GX25NT, GX25T, GX31, GX35, GX35N, GX35NT, GX35T, HHE31C, HHH25S 75E, HHH25S75E, HHT25S, HHT31S, HHT35S, UMK 425 LE, UMK 435 UE, UMK422, UMK425LE, UMK435UE |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX25 (GCAAM) | GX35 (GCACM) | GX25 (GCABK) | GX35N (GCAEK) | GX25 (GCABM) | GX25N (GCADK) | GX25T (GCALT) | GX35T (GCAMT) | GX25T (GCANT) | GX25T (GCAPT) | GX25NT (GCART) | GX35NT (GCAST) | GX31 (GCAG) | GX22 (GCAF) | HHH25S 75E | UMK 435 UE | UMK 425 LE |
