Description
Overview:

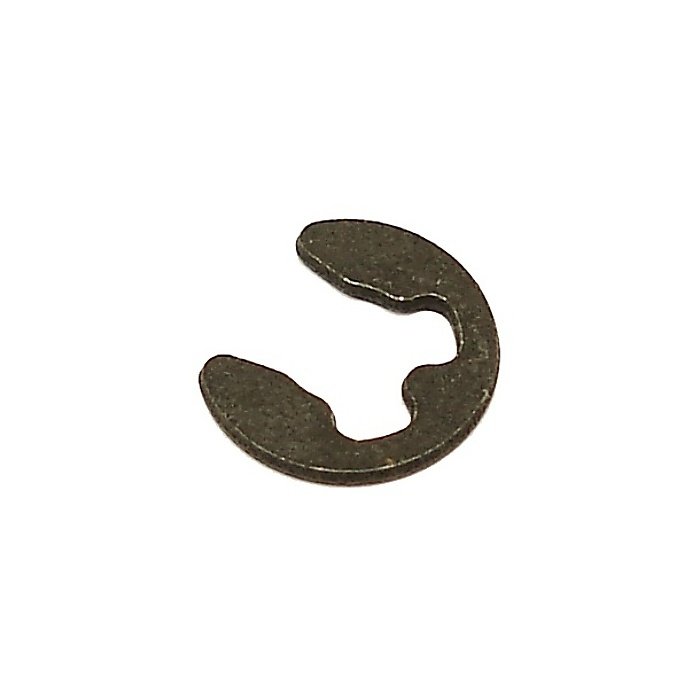

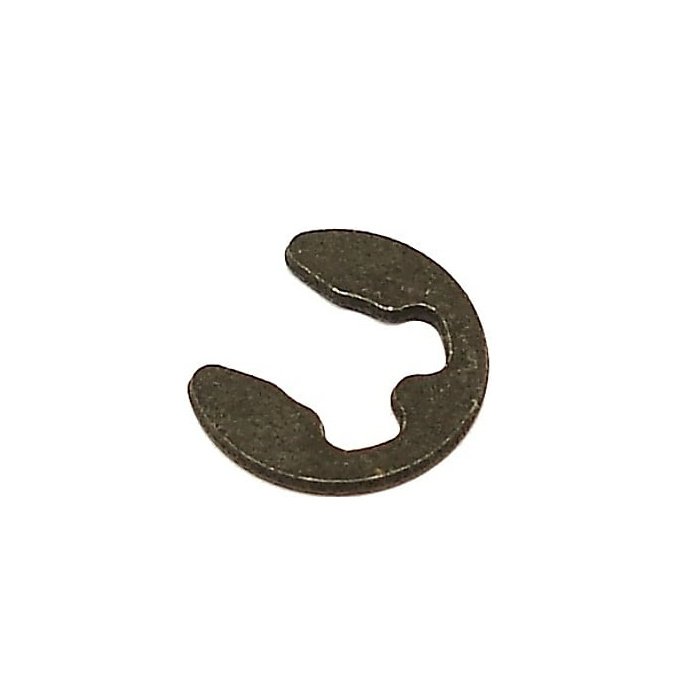

The E-Clip 3.2 for Stihl is a small external retaining clip used to secure components on grooved shafts across a wide range of handheld machines. This genuine Stihl part is manufactured from hardened spring steel for dependable grip and long service life under vibration. It prevents washers, sprockets, linkages and other parts from sliding off their shafts, helping maintain safe and reliable operation. Sized for 3.2 mm nominal shaft grooves, it offers a precise, repeatable fit on Stihl equipment. Marked with OEM part number 9460 624 0320, it integrates cleanly with many models, including the Stihl 041G and 056 chainsaws, as well as other chainsaws, brushcutters, hedge trimmers and cut-off saws in the Stihl range. Genuine Stihl part for assured compatibility and performance.
Key Features:
- Genuine Stihl part for accurate fit and consistent performance (OEM 9460 624 0320)
- Hardened spring steel construction for strength and long service life
- 3.2 mm nominal shaft size for reliable retention on correctly grooved shafts
- Secure snap-in design resists vibration and axial movement
- Low-profile form factor to suit confined housings and assemblies
- Quick to install and remove with suitable pliers or a small screwdriver
- Helps prevent lost parts and downtime by keeping components in place
- Suitable for chainsaws, brushcutters, hedge trimmers and cut-off saws across the Stihl range
Typical Applications:
Retaining items on small diameter shafts such as linkage pins, throttle shafts, clutch or starter-related pivots, adjuster mechanisms and light gear assemblies. Commonly used during routine maintenance or repairs on Stihl chainsaws, brushcutters, hedge trimmers and cut-off saws where a compact, positive axial retainer is required.
Also known as:
E‐ring, E‐type retaining ring, external retaining ring, shaft clip, axle retaining ring, E‐type snap ring, external ring fastener.
Fits Models:
020, 020T, 030, 031, 032, 036QS, 041, 041G, 045, 056, 070, 08S, 090, 090G, FH-KM 145 deg, FH-KM145deg, FS40, FS50, FS60, FS61, FS65, HE 615, HE 715, HE 805, HE 810, HE 815, HE615, HE715, HE805, HE810, HE815, HEL 600, HEL 600 K, HEL600, HEL600K, HL-KM 0-145, HL-KM 0-90 deg, HL-KM0-145, HL-KM0-90deg, HL73, HL73K, HL75, HL75K, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 135, HLA 135 K, HLA135, HLA135K, HS60, HS61, HSE61, HSE71, HSE81, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS171, MS171C, MS181, MS181C, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS231, MS241C, MS250, MS250C, MS251, MS261, MS261C, MS271, MS271C, MS291, MS291C, MS360, MS360C, MS720, TS400, TS700, TS800
Alternate Part Numbers:
9460-624-0320, 94606240320
Product Specifications
| L&S Part No. | 9460 624 0320 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94606240320 |
| Unit of Sale | 1 |
| Applications | 020, 020T, 030, 031, 032, 036QS, 041, 041G, 045, 056, 070, 08S, 090, 090G, FH-KM 145 deg, FH-KM145deg, FS40, FS50, FS60, FS61, FS65, HE 615, HE 715, HE 805, HE 810, HE 815, HE615, HE715, HE805, HE810, HE815, HEL 600, HEL 600 K, HEL600, HEL600K, HL-KM 0-145, HL-KM 0-90 deg, HL-KM0-145, HL-KM0-90deg, HL73, HL73K, HL75, HL75K, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 135, HLA 135 K, HLA135, HLA135K, HS60, HS61, HSE61, HSE71, HSE81, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS171, MS171C, MS181, MS181C, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS231, MS241C, MS250, MS250C, MS251, MS261, MS261C, MS271, MS271C, MS291, MS291C, MS360, MS360C, MS720, TS400, TS700, TS800 |
| Machine Type | Chainsaws, Brushcutters, Pole Pruners, Disc Cutters, Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | TS400 | MS230, MS230C | MS250, MS250C | MS200, MS200T | 030, 031 | 08S | MS360, MS360C | TS700 | MS171, MS171C | MS181, MS181C | MS211, MS211C | FS40, FS50 | MS261, MS261C | MS150T C | HS60, HS61 | HSE61, HSE71, HSE81 | FS60 | FS61 | FS65 | TS800 | 020, 020T | 032 | MS231, MS251 | MS241C | MS271, MS271C, MS291, MS291C | MS720 | MS150C | 036QS | 041 | 056 | 070 | 090, 090G | 045 | FH-KM 145 deg | HL-KM 0-90 deg | HL-KM 0-145 | HL73, HL73K | HL75, HL75K | HL91K, HL91KC | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | HE 615 | HE 715 | HE 805 | HE 810 | HE 815 | HEL 600 K | HEL 600 | MS151C, MS151TC | HLA 135, HLA 135 K | FH 145° | HL 0° - 90° | HL 145° |
