Description
Overview:

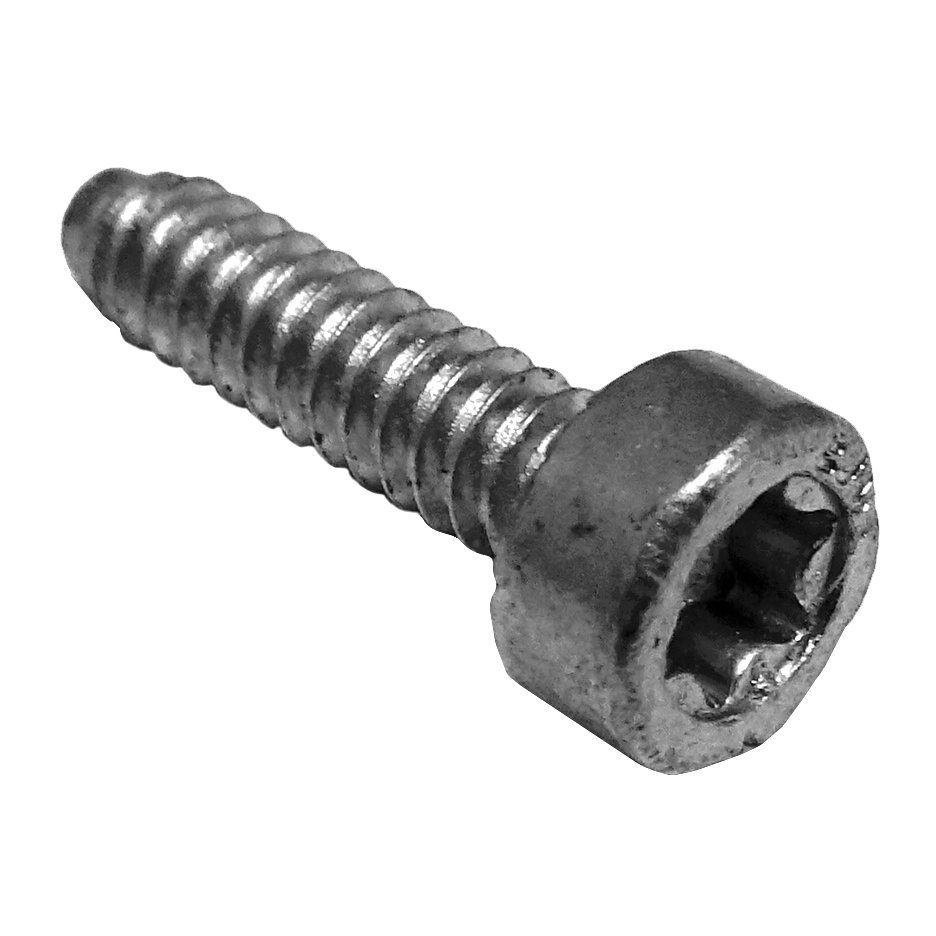

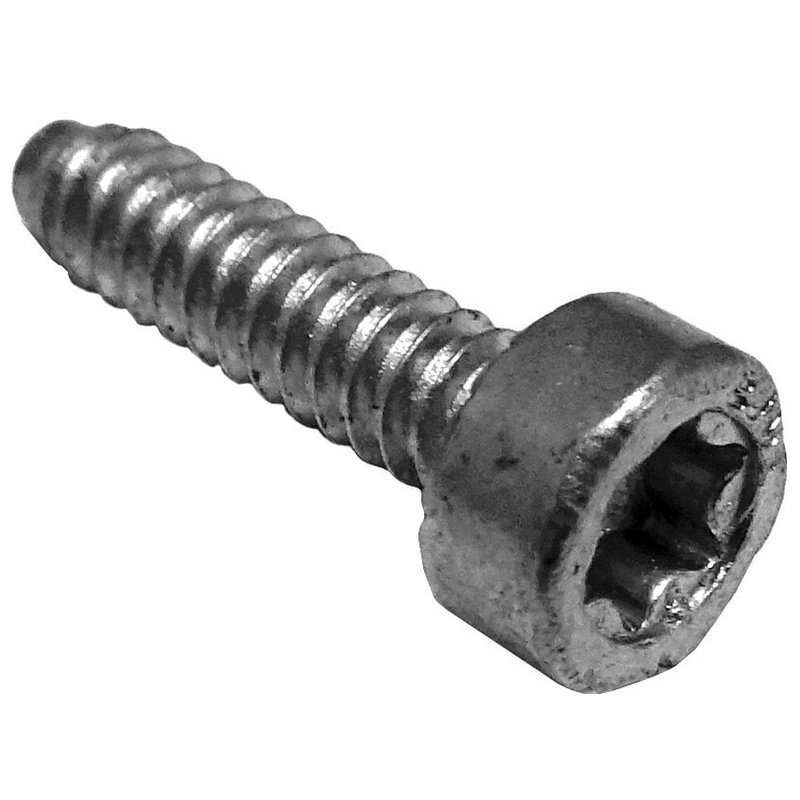

The Pan Head Self-Tapping Screw IS-D4x16 is a Genuine Stihl part designed for secure fastening in outdoor power equipment and workshop machinery. Made from high-strength steel with a corrosion-resistant finish, it delivers reliable grip in plastics, light metals, and sheet components. The self-tapping thread forms its own pilot, helping reduce assembly time and maintain a tidy finish thanks to the low-profile pan head. Sized to IS-D4x16, it measures 4 mm diameter x 16 mm length (approximately 0.16 in x 0.63 in). It is commonly used across Stihl chainsaws and blowers, including the MS 270 and MS 270 C, to hold covers, housings, and guards firmly in place. Stihl part number 9075 478 3016.
Key Features:
- Genuine Stihl part for dependable fit and performance
- Self-tapping thread for quick installation without pre-drilling in many applications
- Pan head gives a neat, low-profile clamping surface
- High-strength steel construction for consistent torque and retention
- Corrosion-resistant finish to help withstand outdoor and workshop conditions
- Precise size: 4 mm x 16 mm (approx. 0.16 in x 0.63 in)
- Suitable for plastics, light alloys, and thin steel sections where a self-tapper is specified
- Helps restore original build quality during repairs and maintenance
- Compatible across a wide range of Stihl machines to simplify spares stocking
Typical Applications:
Routine maintenance, repairs, and component replacement on Stihl chainsaws, blowers, and cut-off saws. Typical uses include fastening shrouds, air filter covers, recoil starter housings, chain brake and clutch covers, handle frames, and guard assemblies. Also useful for other light machinery where a 4 mm self-tapping pan head screw is specified.
Also known as:
Self-tapper, tapping screw, pan head tapping screw, self-threading screw, thread-forming screw, sheet metal screw, metal self-tapper.
Fits Models:
028, 028 AV, 028AV, BR 500, BR 550, BR 600, BR 700, BR500, BR550, BR600, BR700, GS 461, GS461, MS 150 C, MS 150 T C, MS 151 C, MS 151 TC, MS 231, MS 231 C, MS 251, MS 251 C, MS 270, MS 270 C, MS 280, MS 280 C, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS231, MS231C, MS251, MS251C, MS270, MS270C, MS280, MS280C, TSA 230, TSA230
Alternate Part Numbers:
9075-478-3016, 90754783016
Product Specifications
| L&S Part No. | 9075 478 3016 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90754783016 |
| Unit of Sale | 1 |
| Applications | 028, 028 AV, 028AV, BR 500, BR 550, BR 600, BR 700, BR500, BR550, BR600, BR700, GS 461, GS461, MS 150 C, MS 150 T C, MS 151 C, MS 151 TC, MS 231, MS 231 C, MS 251, MS 251 C, MS 270, MS 270 C, MS 280, MS 280 C, MS150C, MS150T C, MS150TC, MS151C, MS151TC, MS231, MS231C, MS251, MS251C, MS270, MS270C, MS280, MS280C, TSA 230, TSA230 |
| Machine Type | Chainsaws, Backpack Blowers, Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | MS270, MS270C, MS280, MS280C | 028, 028AV | BR500 | MS150T C | TSA230 | MS231, MS251 | MS150C | MS151C, MS151TC | BR550 | BR600 | BR700 | GS461 | HSA140 | HSA150 |
