Description
Overview:

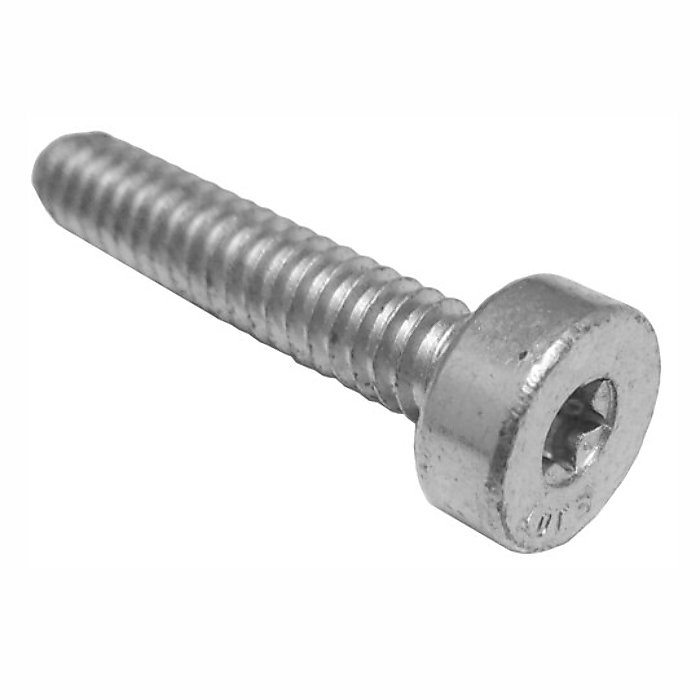

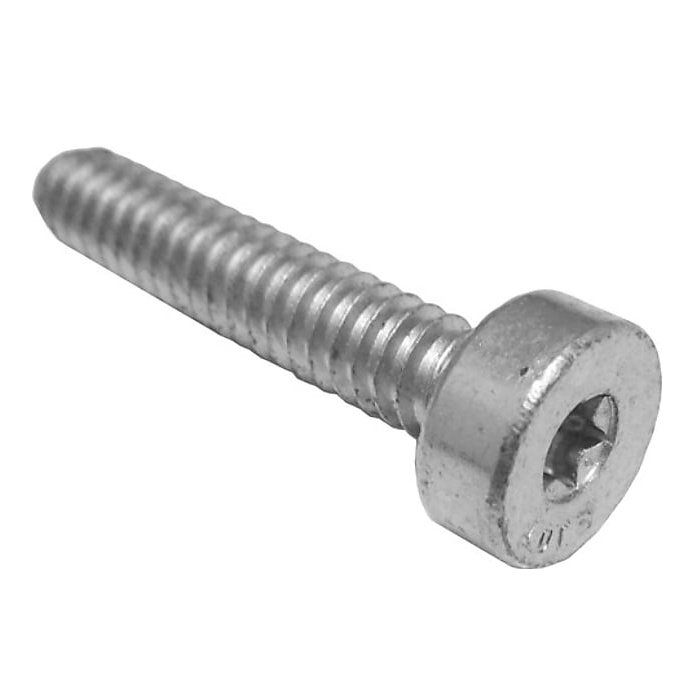

The Pan Head Self-Tapping Screw IS-D5x28 is a genuine Stihl OEM fastener designed for secure, long‐lasting assembly in a wide range of Stihl garden and construction machines. Made from durable steel, it forms its own mating thread in suitable plastics and thin metal components, helping you maintain factory-fit integrity during servicing and repairs. The pan head offers a broad bearing surface for a neat, low-profile finish that protects surrounding parts. Typical uses include covers, housings, guards, and handle assemblies on tools such as the HSE42 and HSE52. Size: D5 x 28 (5 mm x 28 mm; approx. 0.20 in x 1.10 in), giving reliable grip length and strong clamping without excess protrusion. Genuine Part status supports consistent fit and performance.
Key Features:
- Genuine Stihl part for dependable fit, compatibility, and performance
- Pan head provides a broad bearing surface and tidy, low-profile finish
- Self-tapping design for quick installation without pre-drilling in compatible materials
- Size D5 x 28 (5 mm x 28 mm; approx. 0.20 in x 1.10 in) for common Stihl fastening points
- Durable steel construction suited to outdoor and professional use
- Helps restore original fastening strength and equipment reliability
- Compatible across many hedge trimmers, brushcutters, pole pruners, KombiSystem tools, and cut-off saws
- Easy to fit with standard hand tools, reducing downtime during maintenance
- Supports secure reassembly of covers, shrouds, and guards where vibration resistance is needed
Typical Applications:
Used for fastening plastic and thin metal parts such as housings, shrouds, handles, guards, gearcase covers, air filter boxes, and cable or trigger housings. Ideal for replacing worn, stripped, or missing screws during routine servicing or repairs, ensuring components remain securely fixed under vibration and regular use.
Also known as:
Self-tapping screw, self-threading screw, self‐tapper, sheet metal screw, thread-forming screw, thread-cutting screw, pan head tapping screw, D5x28 pan head self‐tapper.
Fits Models:
BT 120 C, BT 121, BT 121 Z, BT 131, BT120C, BT121, BT121Z, BT131, FC 111, FC 91, FC111, FC91, FC96, FR131T, FR230, FR230T, FR350, FR450, FR480, FR480C, FS111, FS111R, FS111RX, FS120, FS120R, FS131, FS131R, FS200, FS200R, FS230, FS250, FS250R, FS300, FS311, FS350, FS380, FS400, FS450, FS480, FS89, FS89R, FS91, FS91R, FS94, FS94 C, FS94C, FS94R, FS94RC, FT250, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 56, HLA56, HSA50, HSA56, HSE42, HSE52, HT102, HT103, HT132, HT133, HT135, HT250, HT70, HT70K, HT75, HTA 135, HTA 150.0, HTA 160.0, HTA135, HTA150.0, HTA1500, HTA160.0, HTA1600, KA120, KA120R, KA250 Attachment, KA250Attachment, KM111R, KM131, KM131R, KM91R, KM94R, KM94RC, SP200, SP400, SP450, SP451, SP481, TSA230
Alternate Part Numbers:
9075-478-4175, 90754784175
Product Specifications
| L&S Part No. | 9075 478 4175 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90754784175 |
| Unit of Sale | 1 |
| Applications | BT 120 C, BT 121, BT 121 Z, BT 131, BT120C, BT121, BT121Z, BT131, FC 111, FC 91, FC111, FC91, FC96, FR131T, FR230, FR230T, FR350, FR450, FR480, FR480C, FS111, FS111R, FS111RX, FS120, FS120R, FS131, FS131R, FS200, FS200R, FS230, FS250, FS250R, FS300, FS311, FS350, FS380, FS400, FS450, FS480, FS89, FS89R, FS91, FS91R, FS94, FS94 C, FS94C, FS94R, FS94RC, FT250, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 56, HLA56, HSA50, HSA56, HSE42, HSE52, HT102, HT103, HT132, HT133, HT135, HT250, HT70, HT70K, HT75, HTA 135, HTA 150.0, HTA 160.0, HTA135, HTA150.0, HTA1500, HTA160.0, HTA1600, KA120, KA120R, KA250 Attachment, KA250Attachment, KM111R, KM131, KM131R, KM91R, KM94R, KM94RC, SP200, SP400, SP450, SP451, SP481, TSA230 |
| Machine Type | Brushcutters, Pole Pruners, Hedgetrimmers, Chainsaws, Earth Augers, Kombi Engines |
| Fits Brands | Stihl |
| Fits Models | FS120, FS200, FS250 | FS300, FS350, FS380 | FS400, FS450, FS480 | TSA230 | HSA56 | HSE42, HSE52 | FS91, FS91R | FS94, FS94 C, FS94R, FS94RC | FS111, FS111R, FS111RX | FS131, FS131R | FS311 | FR131T | FR230, FR230T | FR350, FR450, FR480, FR480C | FS89, FS89R | HT70, HT70K, HT75 | FS230 | HT102, HT103 | HT132, HT133 | KM91R | KM94R, KM94RC | KM111R Engines | KM131, KM131R | KA120, KA120R, KA250 Attachment | FC 111 | BT 131 | BT 120 C | BT 121 | BT 121 Z | FC 91, 96 | HL91K, HL91KC | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | HLA 56 | HSA50 | HT135 | HTA 135 | HTA 150.0 | HTA 160.0 | HT134 | SP 481 |
