Description
Overview:

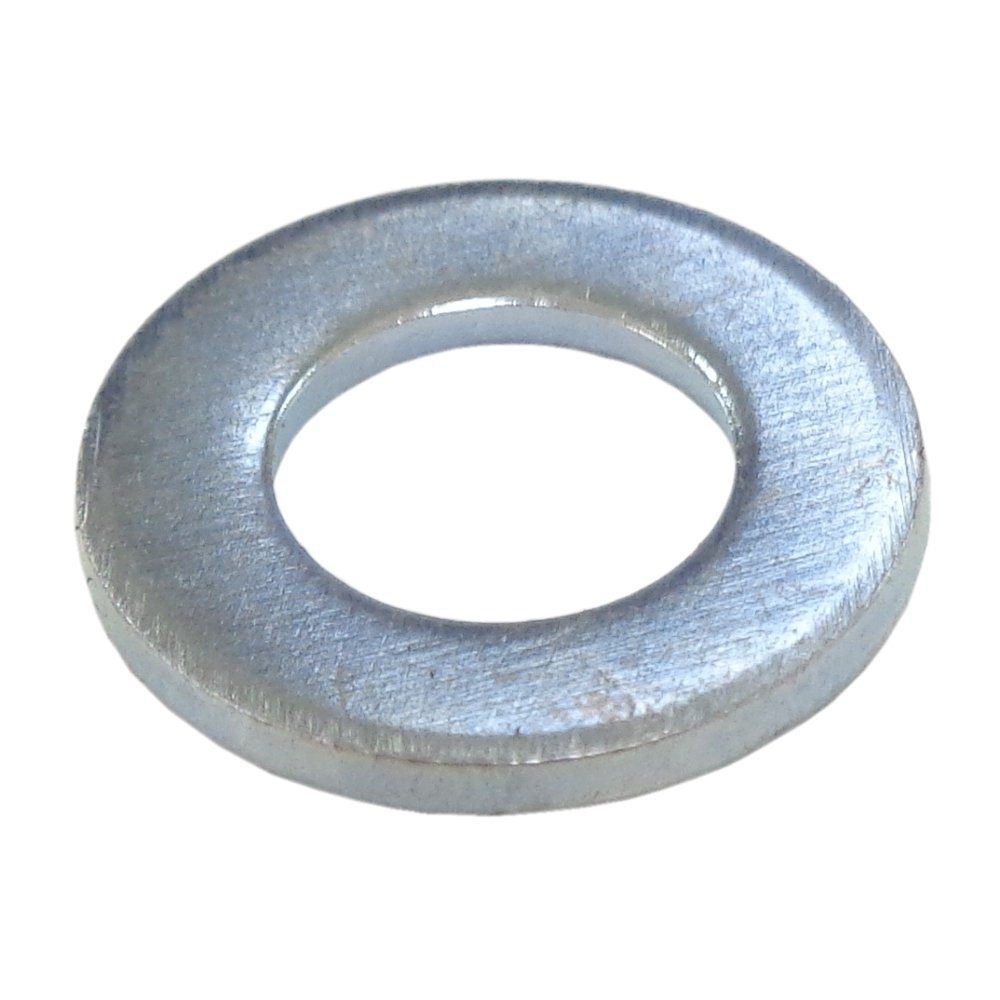

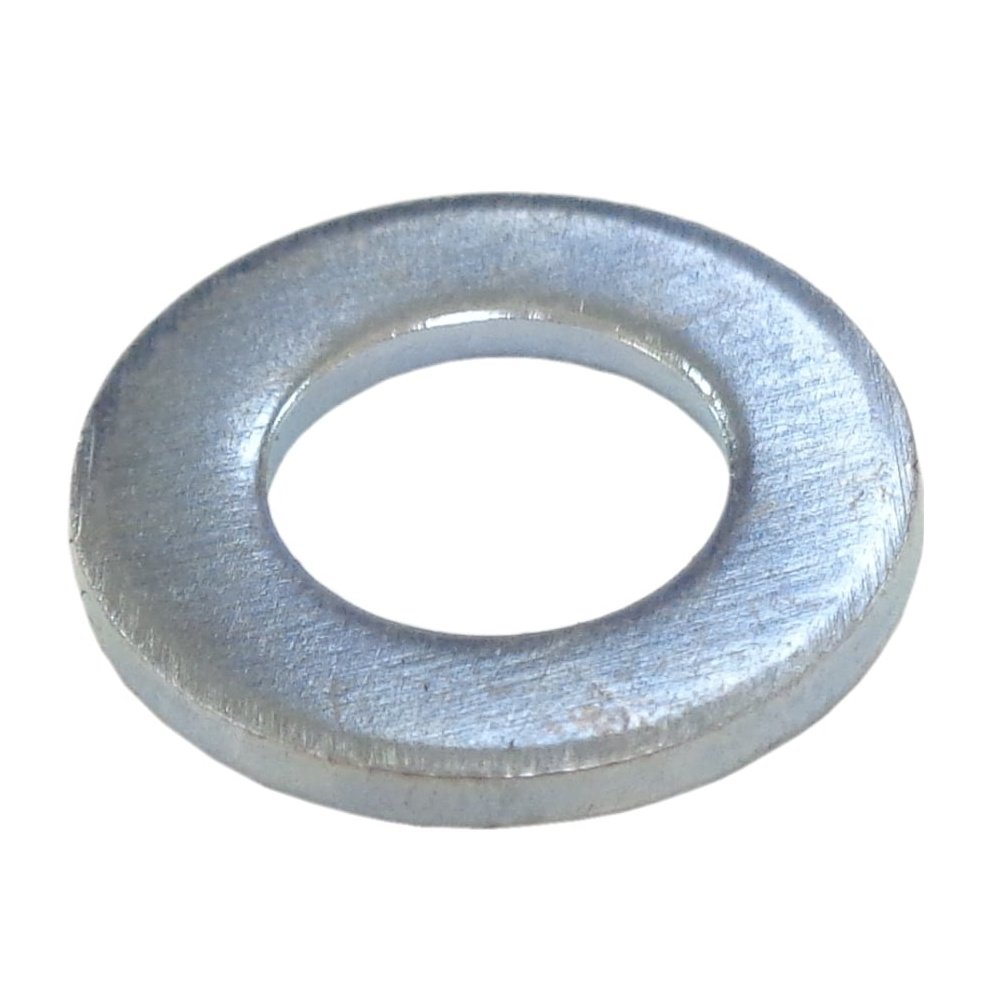

The Plain Washer 8.4 x 16 x 1.6 is a genuine Atlas Copco part (0301 2335 00) designed for reliable fastening in hydraulic and mobile plant assemblies. Made from robust metal with a protective plated finish, it spreads load under an M8 bolt or nut to prevent damage, maintain clamp force, and resist loosening under vibration. It is commonly used on regulating valve brackets in Atlas Copco hydraulic power packs and portable equipment, including the LP 9-20 power pack and XAS 38 compressor. Dimensions: 8.4 mm inner diameter (approx. 0.331 in), 16 mm outer diameter (approx. 0.630 in), and 1.6 mm thickness (approx. 0.063 in). As a Genuine Part, it offers OEM fit and consistency for dependable performance in workshop, site, and fleet maintenance.
Key Features:
- Genuine Atlas Copco part for assured fit, finish, and performance
- Sized for M8 fasteners: 8.4 mm ID x 16 mm OD x 1.6 mm thick (approx. 0.331 x 0.630 x 0.063 in)
- Distributes load to protect components and maintain even clamping
- Helps resist loosening from vibration in power packs, compressors, and light towers
- Flat, smooth faces support consistent torque and alignment of brackets
- Durable plated steel construction for long service life and corrosion resistance
- Simple, drop-in replacement-no modifications required
- Suitable for regulating valve brackets and other chassis or panel fixings
Typical Applications:
Used wherever an M8 fixing needs reliable load spreading and spacing-particularly on regulating valve brackets in hydraulic power packs. Also suitable for mounting brackets, panels, guards, engine housings, and frames on portable compressors and HiLight light towers. Ideal for preventive maintenance, repairs, and overhauls in construction, plant hire, and workshop environments.
Also known as:
Flat washer, M8 plain washer, load-spreading washer, packing washer, spacer washer, shim washer, plate washer.
Fits Models:
H3, H4, H5+, HiLight H2, HiLight H3, HiLight H4, HiLight H5+, HiLightH2, HiLightH3, HiLightH4, HiLightH5+, LP 9-20, LP13-30 EU, LP13-30 EU Power Pack, LP13-30EU, LP9-20, LP9-20E, LP9-20EPAC-Electrica, LP9-20P PAC, LP9-20PPACPetrol, LP920, LP920E, XAHS 38, XAHS 38 kd, XAHS38, XAHS38kd, XAS 38, XAS 38 kd, XAS 48, XAS 48 kd, XAS 58, XAS 58 kd, XAS 68, XAS 68 kd, XAS 78, XAS 78 kd, XAS 88, XAS 88 kd, XAS38, XAS38kd, XAS48, XAS48kd, XAS58, XAS58kd, XAS68, XAS68kd, XAS78, XAS78kd, XAS88, XAS88kd, XATS 138, XATS 138 kd, XATS 68, XATS 68 kd, XATS138, XATS138kd, XATS68, XATS68kd
Alternate Part Numbers:
0301233500
Product Specifications
| L&S Part No. | 0301 2335 00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Atlas Copco |
| OEM No. | 0301233500 |
| Unit of Sale | 1 |
| Applications | H3, H4, H5+, HiLight H2, HiLight H3, HiLight H4, HiLight H5+, HiLightH2, HiLightH3, HiLightH4, HiLightH5+, LP 9-20, LP13-30 EU, LP13-30 EU Power Pack, LP13-30EU, LP9-20, LP9-20E, LP9-20EPAC-Electrica, LP9-20P PAC, LP9-20PPACPetrol, LP920, LP920E, XAHS 38, XAHS 38 kd, XAHS38, XAHS38kd, XAS 38, XAS 38 kd, XAS 48, XAS 48 kd, XAS 58, XAS 58 kd, XAS 68, XAS 68 kd, XAS 78, XAS 78 kd, XAS 88, XAS 88 kd, XAS38, XAS38kd, XAS48, XAS48kd, XAS58, XAS58kd, XAS68, XAS68kd, XAS78, XAS78kd, XAS88, XAS88kd, XATS 138, XATS 138 kd, XATS 68, XATS 68 kd, XATS138, XATS138kd, XATS68, XATS68kd |
| Machine Type | Hydraulic Packs, Lighting Towers |
| Fits Models | HiLight H2, H3, H4, H5+ | XATS 68 | XAS 88 | XAS 78 | XAS 68 | XATS 138 | XAS 58 | XAS 48 | XAS 38 | XAHS 38 | LP9-20P PAC | LP9-20P PAC | LP13-30 | LP9-20E PAC |
