Description
Overview:

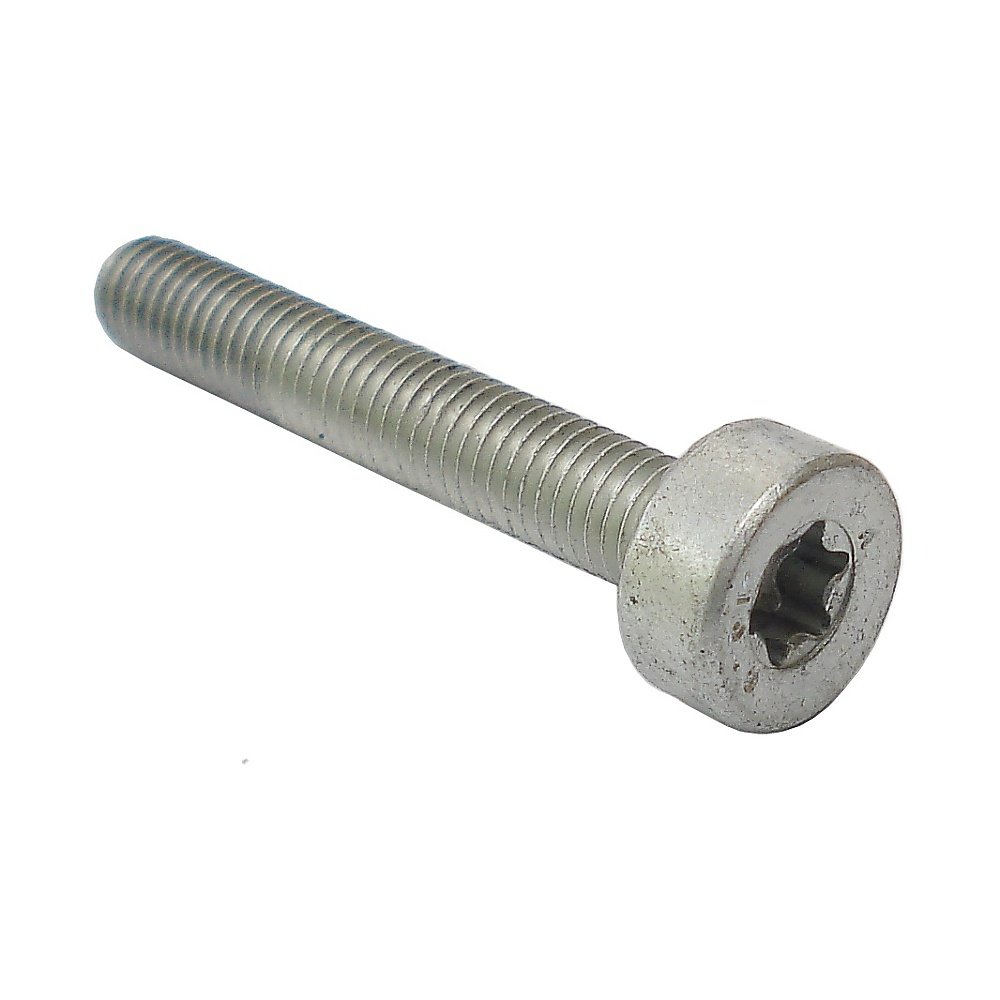

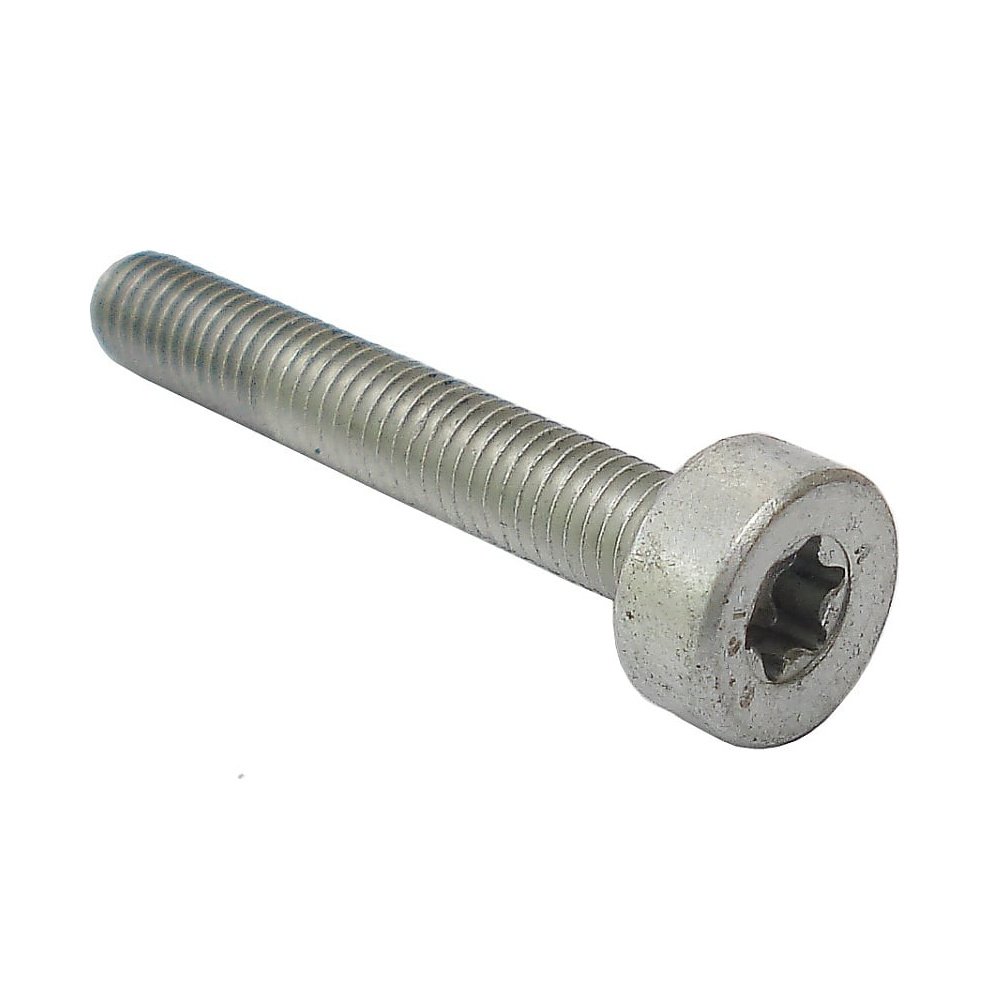

The Spline Screw M5 x 32 for Stihl machinery is a genuine replacement fixing for cut-off saws and pole pruners. Made from durable steel with a corrosion-resistant finish, it uses a spline-drive head for positive tool engagement and secure tightening. The M5 thread and 32 mm length suit OEM assemblies where a compact, high-grip fixing is required. Common on TS 410 and TS 420 models, it helps retain covers, guards, handles and brackets that are exposed to constant vibration. Using the correct OEM screw protects mating threads and maintains alignment, keeping equipment dependable in daily use. Supplied as a Genuine Stihl Part for assured fit and performance with reference 9022 371 1073.
Key Features:
- Genuine Stihl replacement part for assured compatibility and performance
- OEM reference: 9022 371 1073
- Spline-drive head for strong engagement and reduced cam-out
- M5 x 32 mm sizing for precise fit in designated locations
- Robust steel construction with a corrosion-resistant finish
- Holds fast under high vibration in saws and pole pruners
- Easy to install with the correct spline driver
- Ideal for replacing missing, worn or damaged original fixings
Typical Applications:
Used to secure shrouds, air filter covers, handle assemblies, guard brackets and similar fittings on Stihl cut-off saws and pole pruners. Suitable for routine servicing, repairs, and part-for-part replacements to restore safe clamping, correct alignment and reliable operation in demanding on-site or workshop conditions.
Also known as:
Spline-drive bolt, cap-head spline fastener, M5 x 32 machine bolt, retaining bolt, M5 threaded bolt.
Fits Models:
TS 410, TS 420, TS 440, HT-KM, HT-KM Pole Pruner, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 135, HT 56 C, HT 70, HT 70K, HT 73, HT 75, HTA 135, HTA 150.0, HTA 160.0
Alternate Part Numbers:
9022-371-1073, 90223711073
Product Specifications
| L&S Part No. | 9022 371 1073 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223711073 |
| Unit of Sale | 1 |
| Size | IS-M5 x 32mm |
| Applications | HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 135, HT 56 C, HT 70, HT 70K, HT 73, HT 75, HT-KM, HT-KM Pole Pruner, HT101, HT102, HT103, HT130, HT131, HT132, HT133, HT135, HT56 C, HT56C, HT70, HT70K, HT73, HT75, HTA 135, HTA 150.0, HTA 160.0, HTA135, HTA150.0, HTA1500, HTA160.0, HTA1600, HTKM, TS 410, TS 420, TS 440, TS410, TS420, TS440 |
| Machine Type | Disc Cutters, Pole Pruners |
| Fits Brands | Stihl |
| Fits Models | TS410, TS420 | TS440 | HT56 C | HT70, HT70K, HT75 | HT73 | HT101 | HT102, HT103 | HT130 | HT131 | HT132, HT133 | HT-KM Pole Pruner | HT135 | HTA 135 | HTA 150.0 | HTA 160.0 |
