Description

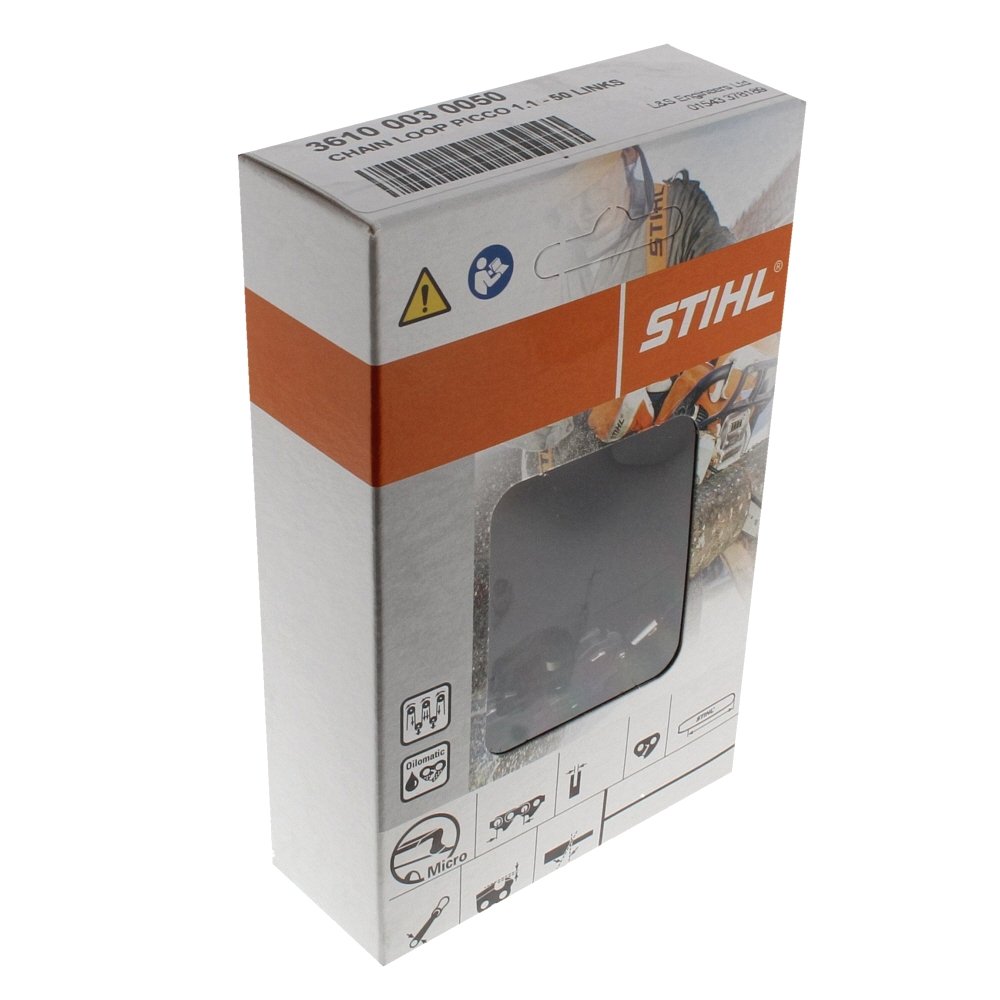

14" PMM3 Chain Loop.
Pitch: 3/8", Gauge: 1.1mm (.043"), Links: 50.
Chain Type: Picco Micro Mini.
Suits Stihl 14" 3005 000 4809 Guide Bar.
Part No. 3610 003 0050.
This genuine STIHL saw chain has been purposefully engineered to meet the specific requirements of light, compact chainsaws, delivering superior cutting performance, reduced kickback, and lower vibration levels. The following are its outstanding quality features:
- STIHL's vertical integration strategy is a core strength that ensures the saw chains, guide bars, and engine units are all manufactured in-house. This synergy of components provides an optimal match that is essential for exceptional cutting performance and reliable operations.
- The 12" PM3 Chain Loop is specifically designed to fit the 3005 000 4809 Guide Bar and features a pitch of 3/8"P, gauge of 1.1mm, and 50 links. The Picco Micro 3 chain type boasts a narrow kerf, shallow tooth design, and optimized cutting angles, which significantly enhance cutting performance and reduce vibration levels.
- The Oilomatic lubricating system of the saw chain has fine oil channels in the chain drive links that pick up oil from the bar groove, delivering it evenly to the chain links and running surfaces of the cutters. This reduces friction and wear while additional chain oil reservoirs in most Oilomatic saw chains further improve lubrication, extending chain life.
- The PM3 cutters feature wear limit marks on their heel, which indicate the extent of wear and sharpening required, optimizing chain life and performance for users.
- The top plate of each PM3 cutter undergoes electrolytic chromium-plating, increasing wear resistance and durability while maintaining optimal cutting performance.
- During production, each PM3 saw chain is subjected to a high, constant tensile load that reduces initial chain 'give,' promotes longer service life, and mitigates wear over time.
- The special punching process used to create mirror-smooth holes in the links of the PM3 chain enhances mobility and ensures long service life.
- Each rivet undergoes inductive hardening in a strong high-frequency field, producing an extra-strong collar that resists wear and enhances overall chain performance.
- STIHL saw chains, including the 12" PM3 Chain Loop, deliver superior cutting performance and quality on not only STIHL chainsaws but also on other makes of chainsaws, ensuring superior results for users.
Suitable for the following applications:
MS 170, MS 170 C, MS 171, MS 171 C, MS 180, MS 180 C,MS 181, MS 181 C, MS 190 T, MS 191 T, MS 192 C, MS 192 T, MS 192 TC, MS 193 C, MS 193 T, MS 193 TC, MSA 160 C, MSA 200 C, MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C, MSE 141 C, MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C, HT 56 C, HT 70, HT 70 K, HT 75, HT 73, HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HTE 60, 009, 010, 011, 012, 015, 017, 018, 019 T, 020, 020 T, 021, 023, 025, E 14, E 140, E 160, E 180 C.
Product Specifications
L&S Part No. | 3610 003 0050 |
---|---|
Part Type | Genuine Part |
Manufacturer | Stihl |
OEM No. | 36100030050 |
Unit of Sale | 1 |
Applications | MS 170, MS 170 C, MS 171, MS 171 C, MS 180, MS 180 C,MS 181, MS 181 C, MS 190 T, MS 191 T, MS 192 C, MS 192 T, MS 192 TC, MS 193 C, MS 193 T, MS 193 TC, MSA 160 C, MSA 200 C, MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C, MSE 141 C, MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C, HT 56 C, HT 70, HT 70 K, HT 75, HT 73, HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HTE 60, 009, 010, 011, 012, 015, 017, 018, 019 T, 020, 020 T, 021, 023, 025, E 14, E 140, E 160, E 180 C. |
Fits Brands | Stihl |
Machine Type | Chainsaws, Electric Chainsaws, Pole Pruners |
Fits Models | MS170, MS170C | MS180, MS180C | MS171, MS171C | MS192C, MS192T, MS192TC | MS181, MS181C | 009 | 010, 011 | 015 | 017 | 018 | 019T | 020, 020T | 021, 023, 025 | E14 | E140, E160, E180 | MSE140, MSE160, MSE180, MSE200 | MSE141 C | MSE170, MSE190, MSE210, MSE230 | MSA160 C | MSA200 C | MS190T | MS193C, MS193T, MS193TC | HT56 C | HT70, HT70K, HT75 | HT73 | HT100 | HT101 | HT102, HT103 | HT130 | HT131 | HT132, HT133 | HTE60 |
