Description
Overview:

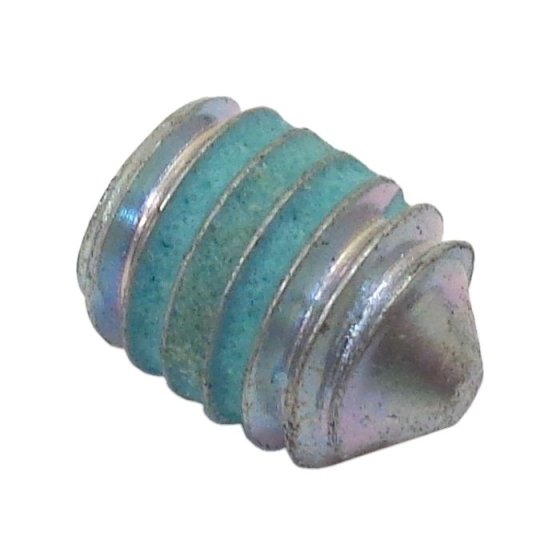

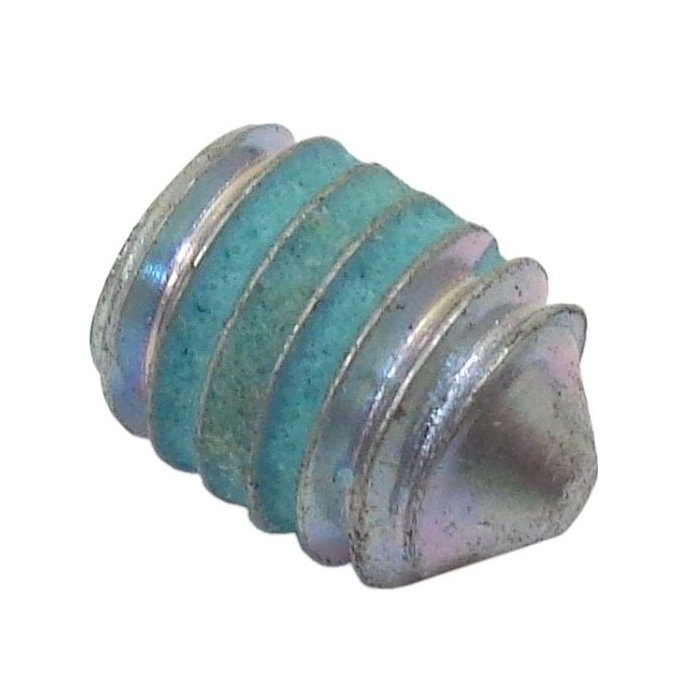

The Stud for Stihl HLE71 and HLE71K is a genuine Stihl fixing that secures components together in hedge trimmers, brushcutters, edgers and KombiSystem attachments. Manufactured from strong steel and treated for corrosion resistance, it provides a reliable threaded anchor that holds parts in correct alignment under vibration and load. Supplied under Stihl Manufacturer Part Number (MPN) 0000 953 1001, it is engineered for a precise fit in the specified platforms, helping to maintain performance and extend service life. This compact double-ended stud is suitable for routine repairs and preventative maintenance where a firm, repeatable clamp is required. As a Genuine Part, it matches the original specification for thread form, length and material quality, supporting smooth, dependable operation of your equipment.
Key Features:
- Genuine Stihl part for assured compatibility and quality (MPN 0000 953 1001)
- Strong steel construction for dependable clamping and longevity
- Accurate thread and length for a precise, repeatable fit
- Helps maintain alignment and structural integrity under vibration
- Treated for corrosion resistance to suit outdoor use
- Supports smooth operation by replacing worn or damaged originals
- Wide model coverage across Stihl hedge trimmers, brushcutters and edgers
- Straightforward to fit with standard hand tools
- Suitable for professional and domestic maintenance schedules
- Backed by Stihl's OEM manufacturing standards
Typical Applications:
Used to fasten housings, gearcases, handles, guards or attachment interfaces where a secure, threaded fixing is required on Stihl handheld equipment. Ideal when refurbishing drive heads, replacing damaged fixings, or restoring correct clamping after service on hedge trimmers, brushcutters, edgers and Kombi attachments.
Also known as:
Stud bolt, threaded stud, double-ended stud, fixing stud, mounting stud, clamp stud, machine stud, threaded fastener, retaining stud.
Fits Models:
FBD-KM, FBDKM, FC 100, FC 111, FC 90, FC 91, FC 95, FC 96, FC100, FC111, FC90, FC91, FC95, FC96, FCS-KM, FCSKM, FH-KM, FH-KM 135 deg, FH-KM135deg, FHKM, FS160, FS180, FS220, FS220K, FS240, FS240C, FS240RC, FS260, FS260C, FS260RC, FS280, FS280K, FS290, FS300, FS310, FS311, FS350, FS360, FS360C, FS380, FS400, FS410C, FS420, FS420L, FS450, FS460C, FS460RC, FS480, FS490C, FS500, FS510C, FS550, FS550L, FS560C, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM0-135deg, HL-KM0deg, HL100, HL100K, HL45, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM, SP81
Alternate Part Numbers:
0000-953-1001, 00009531001
Product Specifications
| L&S Part No. | 0000 953 1001 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 00009531001 |
| Unit of Sale | 1 |
| Applications | FBD-KM, FBDKM, FC 100, FC 111, FC 90, FC 91, FC 95, FC 96, FC100, FC111, FC90, FC91, FC95, FC96, FCS-KM, FCSKM, FH-KM, FH-KM 135 deg, FH-KM135deg, FHKM, FS160, FS180, FS220, FS220K, FS240, FS240C, FS240RC, FS260, FS260C, FS260RC, FS280, FS280K, FS290, FS300, FS310, FS311, FS350, FS360, FS360C, FS380, FS400, FS410C, FS420, FS420L, FS450, FS460C, FS460RC, FS480, FS490C, FS500, FS510C, FS550, FS550L, FS560C, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM0-135deg, HL-KM0deg, HL100, HL100K, HL45, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM, SP81 |
| Machine Type | Brushcutters, Trimmers |
| Fits Brands | Stihl |
| Fits Models | FS220, FS280, FS290 | FS240, FS260 | FS300, FS350, FS380 | FS310 | FS360C FS410C | FS400, FS450, FS480 | FS460C, FS460RC | FS500, FS550, FS550L | FS160, FS180 | FS311 | FS360, FS420, FS420L (older models) | FS490C, FS510C, FS560C | FBD-KM | FCS-KM | FH-KM 135 deg | HL-KM 0 deg | HL-KM 0-135 deg | FC 90, 95 | FC 100 | FC 111 | FC 91, 96 | HL45 | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | FSA400 | FS361C | FS411 C-EM | FS461 C-EM | FS491 C-EM | FSS-KM | FSA200 | FSA200R | FS461 C-EML | FH 135° | HL 0° | HL 135° |
