Description
Overview:

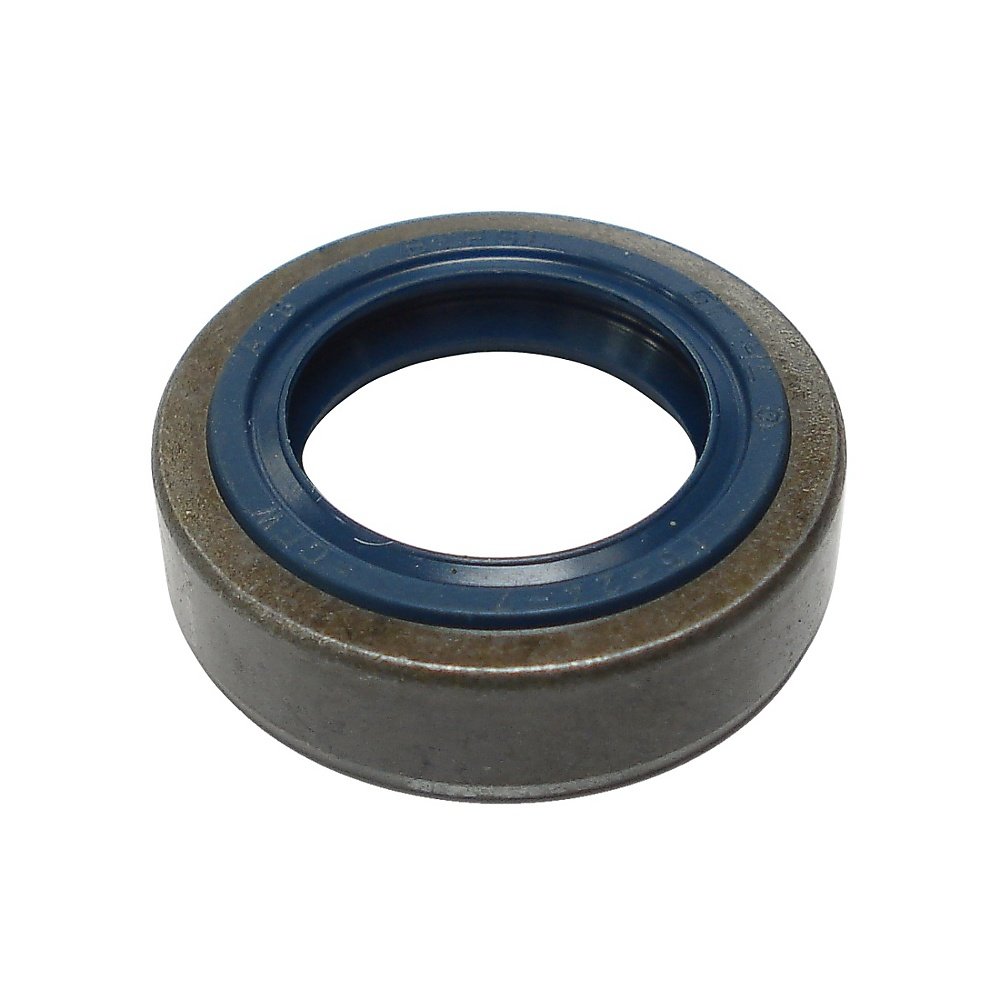

This Genuine Stihl Oil Seal 12x22x5 mm (9640 003 1195) is a compact, durable sealing ring used to prevent oil and fuel mix leakage and to maintain correct crankcase pressure in small petrol engines. Made from oil- and fuel-resistant elastomer with a stable lip profile, it helps keep contaminants out and fluids in, supporting smooth running and reliable starting. It is suited to a wide range of Stihl handheld machines, including chainsaws, brushcutters, hedge trimmers, blowers and drills, such as the FT250 and HS75. The precise 12 x 22 x 5 mm size ensures a correct fit where specified. This part supersedes earlier number 9640 003 1200 and is a straightforward like-for-like replacement when the original seal shows wear or hardening.
Key Features:
- Genuine Stihl part for assured compatibility and performance
- Exact dimensions: 12 x 22 x 5 mm for a precise, leak-free fit
- Durable, oil- and fuel-resistant construction for long service life
- Helps maintain crankcase vacuum and engine efficiency
- Supports consistent idle, power delivery and easier starting
- Supersedes 9640 003 1200 for updated specification
- Compact 5 mm width for easy placement in tight housings
- Suitable across many Stihl machines to simplify parts stocking
- Reliable lip design reduces the risk of premature leaks
- Straightforward to replace during routine servicing or rebuilds
Typical Applications:
Used when rebuilding or servicing two-stroke and four-mix engines to cure oil seepage, air leaks or performance issues. Typical replacement points include crankshaft ends, gearcase or clutch side seals on Stihl handheld tools. Ideal for preventative maintenance on professional and domestic equipment to reduce downtime and protect engine internals.
Also known as:
Rotary shaft seal, oil lip seal, shaft oil seal, crankshaft seal, engine oil seal, radial oil seal, sealing ring, elastomer oil seal.
Fits Models:
BG60, BG61, BG72, BG75, BR106, BT 120 C, BT 121, BT 121 Z, BT120C, BT121, BT121Z, FC 70, FC 70 C, FC 72, FC 73, FC 75, FC 85, FC70, FC70C, FC72, FC73, FC75, FC85, FH75, FR106, FR108, FR125, FR135, FR145, FR350, FR3900, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS106, FS108, FS120, FS120R, FS200, FS200R, FS240, FS250, FS260, FS300, FS350, FS360C, FS380, FS3900, FS400, FS410C, FS450, FS460C, FS460RC, FS480, FS490C, FS510C, FS560C, FS60, FS61, FS65, FS72, FS74, FS75, FS76, FS80, FS81, FS85, FS86, FS88, FS90, FS90R, FS94, FS94 C, FS94C, FS94R, FS94RC, FS96, FT250, HL75, HL75K, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HS60, HS61, HS72, HS74, HS75, HS76, HS80, HS81, HS82, HS85, HS86, HS87, HT250, HT70, HT70K, HT75, KA120, KA120R, KA250 Attachment, KA250Attachment, KA85R, KA85R Attachment, KA85RAttachment, KM85, KM85R, KM94R, KM94RC, KR85 Attachment, KR85Attachment, KW 85, KW85, SP400, SP450, SP81
Alternate Part Numbers:
9640-003-1195, 9640 003 1200, 96400031200, 96400031195
Product Specifications
| L&S Part No. | 9640 003 1195 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 96400031195 |
| Unit of Sale | 1 |
| Applications | BG60, BG61, BG72, BG75, BR106, BT 120 C, BT 121, BT 121 Z, BT120C, BT121, BT121Z, FC 70, FC 70 C, FC 72, FC 73, FC 75, FC 85, FC70, FC70C, FC72, FC73, FC75, FC85, FH75, FR106, FR108, FR125, FR135, FR145, FR350, FR3900, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS106, FS108, FS120, FS120R, FS200, FS200R, FS240, FS250, FS260, FS300, FS350, FS360C, FS380, FS3900, FS400, FS410C, FS450, FS460C, FS460RC, FS480, FS490C, FS510C, FS560C, FS60, FS61, FS65, FS72, FS74, FS75, FS76, FS80, FS81, FS85, FS86, FS88, FS90, FS90R, FS94, FS94 C, FS94C, FS94R, FS94RC, FS96, FT250, HL75, HL75K, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HS60, HS61, HS72, HS74, HS75, HS76, HS80, HS81, HS82, HS85, HS86, HS87, HT250, HT70, HT70K, HT75, KA120, KA120R, KA250 Attachment, KA250Attachment, KA85R, KA85R Attachment, KA85RAttachment, KM85, KM85R, KM94R, KM94RC, KR85 Attachment, KR85Attachment, KW 85, KW85, SP400, SP450, SP81 |
| Machine Type | Chainsaws, Brushcutters, Pole Pruners, Edging Trowel |
| Fits Brands | Stihl |
| Fits Models | FS75, FS80, FS85 | FS90, FS90R | FS120, FS200, FS250 | FS240, FS260 | FS300, FS350, FS380 | FS360C FS410C | FS400, FS450, FS480 | FS460C, FS460RC | HS60, HS61 | HS72, HS74, HS76 | HS75 | HS81, HS86 | HS82 | BG60, BG61 | BG72 | BG75 | BR106 | FS60 | FS61 | FS65 | FS72, FS74, FS76 | FS80 | FS81, FS86 | FS88 | FS94, FS94 C, FS94R, FS94RC | FS96 | FS106 | FS108 | FS3900 | FS490C, FS510C, FS560C | FR85T, FR85 | FR106 | FR125, FR135, FR145 | FR350, FR450, FR480, FR480C | FR3900 | FR410C, FR460TC | FR108 | HT70, HT70K, HT75 | KM85, KM85R | KM94R, KM94RC | KA85R Attachment | KR85 Attachment | KA120, KA120R, KA250 Attachment | KW 85 | FC 70, FC 70 C | FC 72 | FC 73 | FC 75 | FC 85 | BT 120 C | BT 121 | BT 121 Z | HL75, HL75K | HL91K, HL91KC | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | HS80 | HS85 | HS87 | FH75 | FS361C | FS411 C-EM | FS461 C-EM | FS491 C-EM | FS561 C-EM | SP 85 | SP 481 | FS461 C-EML |
