Description
Overview:

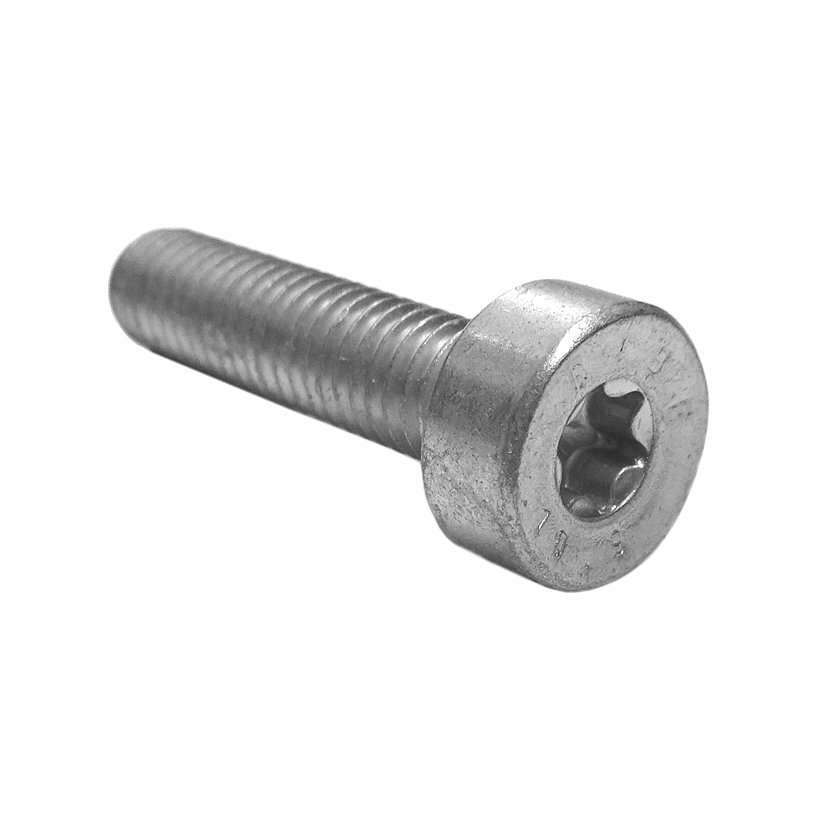

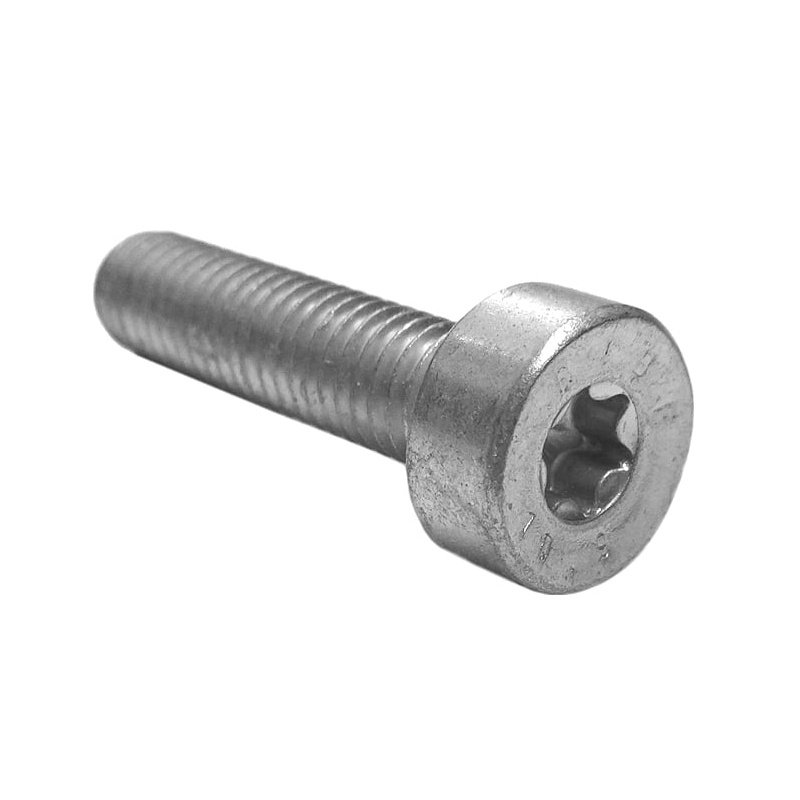

The Spline Screw IS‐M6x25 is a genuine Stihl fixing designed for reliable fastening across a wide range of Stihl machines, including the TS350 and TS360 cut-off saws. Manufactured from durable metal to Stihl's standards, it delivers a secure hold in high-vibration environments. The metric size is M6 x 25 mm (6 mm x 25 mm), suitable for many assemblies such as covers, guards, housings and attachment points. Its internal spline drive helps reduce cam-out and allows positive engagement with the correct driver bit. Supplied as Stihl Manufacturer Part Number 9022 341 1350, this screw is suitable for routine maintenance and repairs where an exact-fit replacement is required, helping maintain machine safety and performance over time.
Key Features:
- Genuine Stihl part (MPN: 9022 341 1350) for assured fit and compatibility
- Internal spline drive for positive engagement and reduced risk of rounding
- M6 x 25 mm size covers a wide range of common Stihl assemblies
- Built to Stihl specifications for strength and reliability under vibration
- Durable metal construction for long service life
- Suitable for frequent maintenance tasks and part replacements
- Easy to fit with the correct driver; straightforward like-for-like swap
- Helps keep guards, covers and attachments securely fixed for safe operation
Typical Applications:
Securing plastic or metal covers, recoil starter housings, guard brackets, handle frames, clamp points for attachments, and similar fixtures on Stihl cut-off saws, brushcutters, Kombi engines, hedge trimmers and pole pruners. Ideal for replacing worn or missing fixings during servicing or repairs to restore correct fastening and reduce vibration-related loosening.
Also known as:
Internal spline machine screw, M6 x 25 fixing, M6 x 25 bolt, cap screw, metric fastener, replacement fixing screw for Stihl equipment.
Fits Models:
048, 084, 08S, BT 130, BT 130 Z, BT130, BT130Z, EC 70, EC70, FC 100, FC 44, FC 55 DZ, FC 70, FC 70 C, FC 72, FC 73, FC 75, FC 90, FC100, FC44, FC55DZ, FC70, FC70C, FC72, FC73, FC75, FC90, FC95, FCB-KM, FCBKM, FR106, FR108, FR125, FR130T, FR131T, FR135, FR145, FR220, FR230, FR230T, FR350, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS100, FS100R, FS100RX, FS106, FS108, FS110, FS110R, FS110RX, FS110X, FS120, FS130, FS130R, FS160, FS180, FS200, FS220, FS25-4, FS250, FS254, FS280, FS290, FS300, FS310, FS350, FS36, FS360, FS360C, FS380, FS40, FS400, FS410C, FS420, FS420L, FS44, FS450, FS480, FS50, FS500, FS55, FS550, FS550L, FS55C, FS55R, FS62, FS65-4, FS654, FS66, FS72, FS74, FS75, FS76, FS80, FS81, FS83, FS83T, FS85, FS86, FS88, FS90, FS90R, FT100, FW20 Cart, FW20Cart, HL 95, HL 95 K, HL100, HL100K, HL73, HL73K, HL90, HL90K, HL95, HL95K, HS242, HS246, HT101, HT130, HT131, HT56 C, HT56C, HT73, HTA 50.0, HTA50.0, HTA500, KA85R Attachment, KA85RAttachment, KM100, KM100R, KM110R, KM111R, KM111REngines, KM130, KM130R, KM131, KM131R, KM55, KM55C, KM55R, KM55RC, KM56C, KM56RC, KM85, KM85R, KM90, KM90R, KM91R, KM94R, KM94RC, KMA 135R, KMA130R, KMA135R, KR85, KR85 Attachment, KR85Attachment, P835, P840, SG 20, SG20, TS350, TS360
Alternate Part Numbers:
9022-341-1350, 90223411350
Product Specifications
| L&S Part No. | 9022 341 1350 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223411350 |
| Unit of Sale | 1 |
| Applications | 048, 084, 08S, BT 130, BT 130 Z, BT130, BT130Z, EC 70, EC70, FC 100, FC 44, FC 55 DZ, FC 70, FC 70 C, FC 72, FC 73, FC 75, FC 90, FC100, FC44, FC55DZ, FC70, FC70C, FC72, FC73, FC75, FC90, FC95, FCB-KM, FCBKM, FR106, FR108, FR125, FR130T, FR131T, FR135, FR145, FR220, FR230, FR230T, FR350, FR410C, FR450, FR460TC, FR480, FR480C, FR85, FR85T, FS100, FS100R, FS100RX, FS106, FS108, FS110, FS110R, FS110RX, FS110X, FS120, FS130, FS130R, FS160, FS180, FS200, FS220, FS25-4, FS250, FS254, FS280, FS290, FS300, FS310, FS350, FS36, FS360, FS360C, FS380, FS40, FS400, FS410C, FS420, FS420L, FS44, FS450, FS480, FS50, FS500, FS55, FS550, FS550L, FS55C, FS55R, FS62, FS65-4, FS654, FS66, FS72, FS74, FS75, FS76, FS80, FS81, FS83, FS83T, FS85, FS86, FS88, FS90, FS90R, FT100, FW20 Cart, FW20Cart, HL 95, HL 95 K, HL100, HL100K, HL73, HL73K, HL90, HL90K, HL95, HL95K, HS242, HS246, HT101, HT130, HT131, HT56 C, HT56C, HT73, HTA 50.0, HTA50.0, HTA500, KA85R Attachment, KA85RAttachment, KM100, KM100R, KM110R, KM111R, KM111REngines, KM130, KM130R, KM131, KM131R, KM55, KM55C, KM55R, KM55RC, KM56C, KM56RC, KM85, KM85R, KM90, KM90R, KM91R, KM94R, KM94RC, KMA 135R, KMA130R, KMA135R, KR85, KR85 Attachment, KR85Attachment, P835, P840, SG 20, SG20, TS350, TS360 |
| Machine Type | Disc Cutters, Brushcutters, Kombi Tools, Pole Pruners, Hedgetrimmers |
| Fits Brands | Stihl, Volvo |
| Fits Models | TS350, TS360 | 08S | FS25-4, FS65-4 | FS36, FS40, FS44 | FS40, FS50 | FS55, FS55C, FS55R | FS75, FS80, FS85 | FS83, FS83T | FS90, FS90R | FS100, FS110 | FS120, FS200, FS250 | FS130, FS130R | FS220, FS280, FS290 | FS300, FS350, FS380 | FS310 | FS360C FS410C | FS400, FS450, FS480 | FS500, FS550, FS550L | FW20 Cart | HS242, HS246 | FS62, FS66 | FS72, FS74, FS76 | FS81, FS86 | FS88 | FS106 | FS108 | FS160, FS180 | FS360, FS420, FS420L (older models) | FR85T, FR85 | FR106 | FR125, FR135, FR145 | FR130T | FR131T | FR230, FR230T | FR350, FR450, FR480, FR480C | FR410C, FR460TC | FR108 | 048 | 084 | HT56 C | HT73 | HT101 | HT130 | HT131 | KM55, KM55C, KM55R, KM55RC | KM56C, KM56RC | KM85, KM85R | KM90, KM90R | KM91R | KM94R, KM94RC | KM100, KM100R, KM110R | KM111R Engines | KM130, KM130R | KM131, KM131R | KMA130R | FCB-KM | KA85R Attachment | KR85 Attachment | EC 70 | FC 44 | FC 55 DZ | FC 70, FC 70 C | FC 72 | FC 73 | FC 75 | FC 90, 95 | FC 100 | SG 20 | BT 130 | BT 130 Z | P835, P840 | HL73, HL73K | HL90K, HL90, HL95K | HL100, HL100K | KMA 135R | HL 95, HL 95 K | HTA 50.0 | KMA80R | KMA120R | KMA200R |
