Description
Overview:

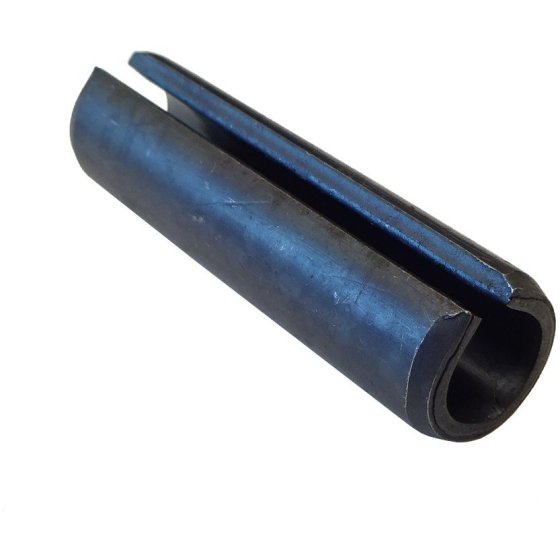

The Sleeve M16x60 DIN 1481 BH23 is a genuine Wacker Neuson retention sleeve designed for use in high-impact tools such as the BH23 and BH65 breakers. Manufactured to the DIN 1481 standard, it is a spring-steel sleeve pin engineered to secure and locate components subject to shock and vibration. The pin has a nominal diameter of 16 mm (approx. 0.63 in) and a length of 60 mm (approx. 2.36 in), providing a firm interference fit in correctly sized holes. Its hardened spring steel and dark, protective finish offer durability in harsh site conditions. Supplied as Genuine Wacker Part No. 5000065289, it helps maintain correct assembly, alignment, and performance in Wacker Neuson breakers and related machinery during maintenance or repair.
Key Features:
- Genuine Wacker Neuson part (5000065289) for assured compatibility and fit
- Made from hardened spring steel for strength under shock and vibration
- Built to DIN 1481 for consistent dimensions and reliable retention
- Size: M16 x 60 mm (approx. 0.63 in x 2.36 in) for precise location and holding power
- Interference-fit design holds components without additional fasteners
- Dark, protective finish for basic corrosion resistance in site environments
- Straightforward to install with suitable drift or pin punch, aiding quick turnaround
- Helps restore correct alignment and reduces movement in pinned assemblies
- Suitable for regular maintenance schedules and part replacements across listed models
Typical Applications:
Used to pin and retain housings, couplings, linkages, and handle assemblies in Wacker Neuson petrol and electric breakers. Ideal wherever a robust, vibration-resistant locating sleeve is required to keep parts aligned, prevent loosening, and maintain impact efficiency during heavy-duty use on construction sites, roadworks, and landscaping jobs.
Also known as:
Roll pin, tension pin, spring pin DIN 1481, spring dowel, DIN 1481 locating pin, M16 x 60 sleeve pin.
Fits Models:
BH22-5000007890, BH23, BH24, BH40, BH55-5100004026, BH55-5100004027, BH55-5100004028, BH55-5100004029, BH65-5000610387, BH65-5100004032, BH65-5100004033, BH65-5100004034, BH65-5100004035, BH65-5100004036, EH 22/220, EH 22/230, EH 22/400, EH 23/100, EH 23/115, EH 23/230, EH 25/115, EH 25/230, EH 27/115, EH 27/120, EH 27/127, EH 50/230
