Description
Overview:

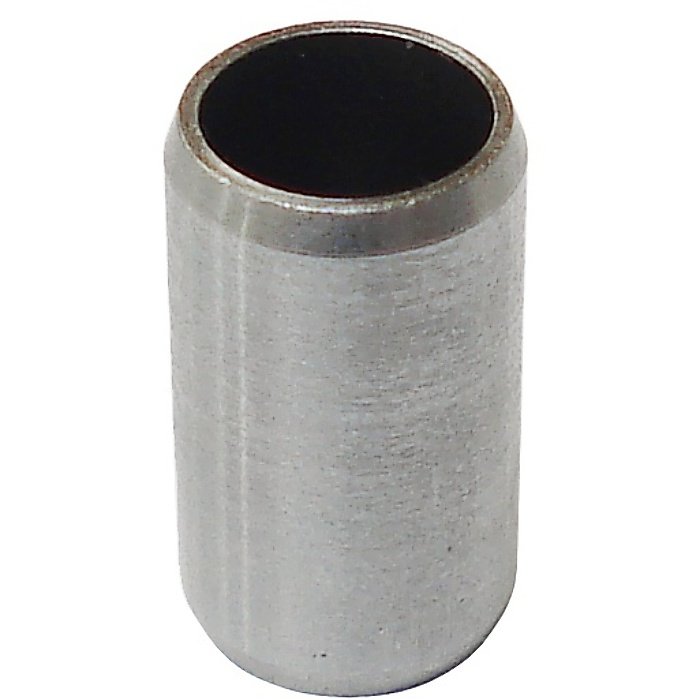

This Genuine Honda crankcase dowel pin is a small, precision steel locator used to align the crankcase cover with the crankcase on Honda petrol engines. By positioning the housings accurately, it helps maintain correct clearances, prevents gasket damage, and supports reliable sealing. The pin is engineered for a snug, repeatable fit that keeps components steady during assembly and servicing. Size: 8 x 14 mm (0.315 x 0.551 in). Designed for a wide range of Honda engines used in professional and domestic equipment, such as generators, pumps, mowers, and compactors, including the GX120 and GX160. It is a practical replacement when a dowel is missing, worn, or damaged during routine maintenance or an engine rebuild.
Key Features:
- Genuine Honda part for assured compatibility and fit
- Dimensions: 8 x 14 mm (0.315 x 0.551 in) for the correct location and depth
- OEM reference: 94301-08140 for exact specification matching
- Precision-ground steel for stability and long service life
- Maintains precise crankcase-to-cover alignment for proper sealing and tolerances
- Straightforward push-fit installation during assembly or gasket replacement
- Suitable for many Honda general-purpose engines across garden and construction machinery
Typical Applications:

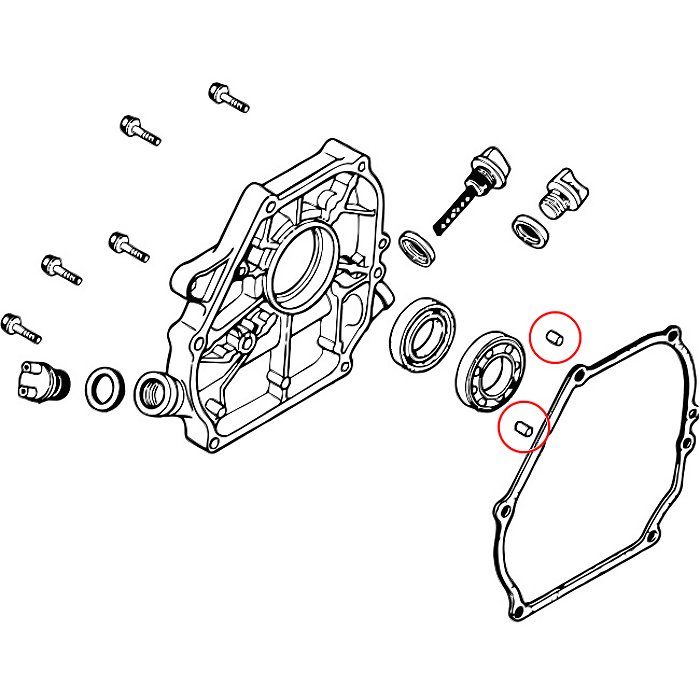

Used during crankcase assembly and servicing to align the cover while replacing gaskets, oil seals, crankshafts, or bearings. Common on equipment powered by Honda engines, including lawn mowers, generators, water pumps, tillers, and other compact machinery. Essential whenever accurate alignment is needed to avoid leaks, vibration, or premature wear after maintenance.
Also known as:
Locating dowel, guide dowel, positioning pin, crankcase locating pin, crankcase alignment dowel, engine locating pin, alignment sleeve, dowel sleeve.
Fits Models:
EU26i, F720 Versatile, F720Versatile, G100, G100K1, G100K2, G150, G150K1, G200, G200K1, G400K1, GCV520, GCV520U, GCV530, GCV530U, GD1100, GD1250, GD320, GD321, GD411, GX120, GX120K1, GX120T1, GX120T2, GX120U1, GX120UT1, GX120UT2, GX160, GX160H1, GX160K1, GX160T1, GX160T2, GX160U1, GX160UT1, GX160UT2, GX200, GX200H, GX200T, GX200T2, GX200U, GX200UT, GX200UT2, GX440IU, GX610, GX610U1, GX620, GX620U1, GX640, GX670, GX690, GXV160UH2, GXV530U, GXV610, GXV620, GXV670, GXV670U, HRD535 HXE, HRD535 MEM, HRD535 QME, HRD535 QXE, HRD535 SME, HRD535 SXE, HRD535HXE, HRD535MEM, HRD535QME, HRD535QXE, HRD535SME, HRD535SXE, HRD536K4 QXEH, HRD536K4QXEH, HRH536 HXE, HRH536 QXE, HRH536HXE, HRH536K1 HXE, HRH536K1 QXE, HRH536K1HXE, HRH536K1QXE, HRH536K2 HXE, HRH536K2 QXE, HRH536K2HXE, HRH536K2QXE, HRH536K3 HXE, HRH536K3 QXE, HRH536K3HXE, HRH536K3QXE, HRH536K4 HXEH, HRH536K4 QXEH, HRH536K4HXEH, HRH536K4QXEH, HRH536QXE, WB20XT
Alternate Part Numbers:
94301-08140, 9430108140
