Description
Overview:

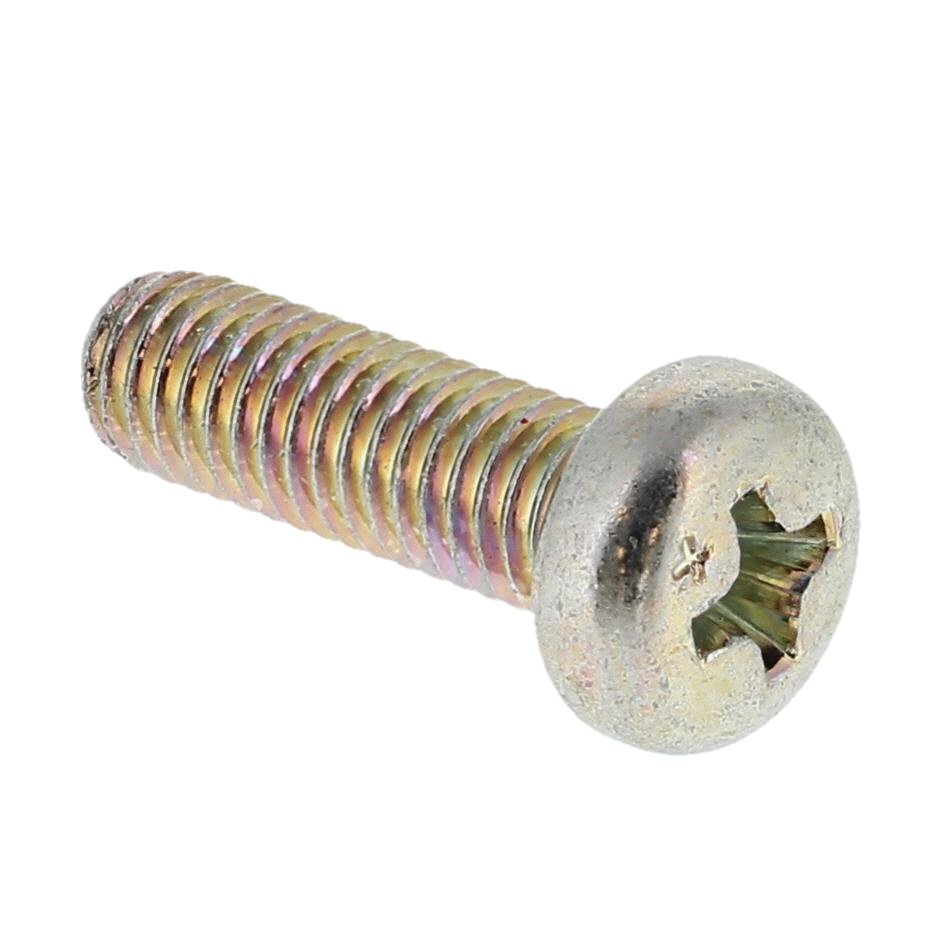

The Pan Screw 5x16 is a genuine Honda fastener for small engines and lawn & garden machines. Made from durable steel with a corrosion‐resistant plated finish, it provides a secure, repeatable clamp for covers, brackets and other light-duty engine fittings. Sized at 5 mm x 16 mm (approx. 0.20 in x 0.63 in), it suits tight spaces while giving a reliable bearing surface under the pan head. Designed for Honda GX-series engines, including GX120 and GX160, and widely used across selected Honda walk‐behind mowers, this OEM part helps maintain correct assembly and service standards. If you are replacing missing or worn screws during maintenance, this like‐for‐like Honda component supports the longevity and safe operation of your equipment.
Key Features:
- Genuine Honda part for assured compatibility and fit (OEM MPN: 93500-05016-0A)
- Size: 5 mm x 16 mm (approx. 0.20 in x 0.63 in) for common small-engine fittings
- Pan head profile provides a broad bearing surface to reduce component marking
- Cross‐recess head for quick installation with a suitable screwdriver
- Steel construction with corrosion‐resistant plated finish for outdoor use
- Reliable fastening of shrouds, air filter housings, recoil starters and brackets
- Suitable for routine servicing and like‐for‐like replacement across many Honda engines and mowers
- Helps maintain factory assembly integrity when torqued to the manufacturer's specification
Typical Applications:
Used to secure engine covers, cowling, air cleaner cases, recoil starter housings, small brackets and guards on Honda GX engines and selected Honda mowers. Common on generators, water pumps, compactors, cement mixers and other equipment powered by GX-series engines where a compact M5 pan head screw is specified.
Also known as:
M5 x 16 pan head machine screw, Honda engine cover screw, shroud/casing screw, GX-series engine screw, 93500‐05016‐0A pan screw. Often referenced during routine service as an M5 pan screw for Honda small engines and mower assemblies.
Fits Models:
GX100, GX100U, GX120K1, GX120T2, GX120U1, GX120UT1, GX160H1, GX160K1, GX160T2, GX160U1, GX270UT2, GX340K1, GX340T1, GX340T2, GX340U1, GX340UT1, GX360K1, GX390H1, GX390K1, GX390T1, GX390T2, GX390UT1, HRB425 CQX, HRB476C QXE, HRD535 MEM, HRD536C HXE, HRD536C SXE, HRD536C2 HXE, HRD536C2 HXEE, HRD536C2 TXE, HRD536C2 TXEE, HRD536C3 HXEE, HRD536C3 TXEE, HRD536K4 QXEH, HRG415C1 SDEE, HRG415C2 PDEE, HRG415C2 SDE, HRG415C2 SDEE, HRG415C2 SDEE/A, HRG415C2-PDE, HRG415C2-PDEE/A, HRG465C1 PDE, HRG465C1 PDEE, HRG465C1 SDE, HRG465C1 SDEE, HRG465C2 PDEE, HRG465C2 PDEE/A, HRG465C2 SDEE, HRG465C2 SDEE/A, HRH536 QXE, HRX426 QX, HRX426 RXE, HRX426C PDE, HRX426C PXE, HRX426C SDE, HRX476 HX, HRX476 SX, HRX476C PXE, HRX476C QXE, HRX476C1 HYEE, HRX476C1 PKEE, HRX476C1 VKEE, HRX476C1 VYEE, HRX537 C2-HYE, HRX537 HXE, HRX537C HME, HRX537C TDE, HRX537C1 HMEA, HRX537C1 HXEA, HRX537C1 TDEA, HRX537C1 VYEA, HRX537C2 HZEA, HRX537C2 VYEA
Product Specifications
| L&S Part No. | 93500 05016 0A |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 93500050160A |
| Unit of Sale | 1 |
| Applications | GX100, GX100U, GX120K1, GX120T2, GX120U1, GX120UT1, GX160H1, GX160K1, GX160T2, GX160U1, GX270UT2, GX340K1, GX340T1, GX340T2, GX340U1, GX340UT1, GX360K1, GX390H1, GX390K1, GX390T1, GX390T2, GX390UT1, HRB425 CQX, HRB476C QXE, HRD535 MEM, HRD536C HXE, HRD536C SXE, HRD536C2 HXE, HRD536C2 HXEE, HRD536C2 TXE, HRD536C2 TXEE, HRD536C3 HXEE, HRD536C3 TXEE, HRD536K4 QXEH, HRG415C1 SDEE, HRG415C2 PDEE, HRG415C2 SDE, HRG415C2 SDEE, HRG415C2 SDEE/A, HRG415C2-PDE, HRG415C2-PDEE/A, HRG465C1 PDE, HRG465C1 PDEE, HRG465C1 SDE, HRG465C1 SDEE, HRG465C2 PDEE, HRG465C2 PDEE/A, HRG465C2 SDEE, HRG465C2 SDEE/A, HRH536 QXE, HRX426 QX, HRX426 RXE, HRX426C PDE, HRX426C PXE, HRX426C SDE, HRX476 HX, HRX476 SX, HRX476C PXE, HRX476C QXE, HRX476C1 HYEE, HRX476C1 PKEE, HRX476C1 VKEE, HRX476C1 VYEE, HRX537 C2-HYE, HRX537 HXE, HRX537C HME, HRX537C TDE, HRX537C1 HMEA, HRX537C1 HXEA, HRX537C1 TDEA, HRX537C1 VYEA, HRX537C2 HZEA, HRX537C2 VYEA |
| Machine Type | Engines, Mowers |
| Fits Brands | Honda |
| Fits Models | GX100 (GCANM) | GX100U (GCAGK) | GX120K1 (GC01) | GX340K1 (GC05) | GX120UT1 (GCAGT) | GX340U1 (GCAMK) | GX120U1 (GCAHK) | GX340UT1 (GCAVT) | GX340T1 (GCAWT) | GX120T2 (GCBNT) | GX160K1 (GC02) | GX340T2 (GCBFT) | GX160H1 (GCAAH) | GX340K1 (GDAE) | GX160K1 (GCAAK) | GX160U1 (GCACK) | GX160T2 (GCBRT) | GX270UT2 (GCBGT) | GX360K1 (GA01) | GX390K1 (GDAF) | GX390T1 (GCAET) | GX390H1 (GCAFH) | GX390UT1 (GCAKT) | GX390T2 (GCBDT) | GX390K1 (GCAA) | HRD535 MEM | HRB425 CQX | HRB476C QXE | HRX426 QX | HRX426 RXE | HRX476 HX | HRX476 SX | HRX537 C2-HYE | HRX537 HXE | HRH536 QXE | HRG415C1 SDEE (Izy) | HRG415C2 (IZY) - PDE | HRG415C2 PDEE (Izy) | HRG415C2 (IZY) - PDEE/A | HRG415C2 SDE (Izy) | HRG415C2 SDEE (Izy) | HRG415C2 SDEE/A (Izy) | HRG465C1 PDE (Izy) | HRG465C1 PDEE (Izy) | HRG465C1 SDE (Izy) | HRG465C1 SDEE (Izy) | HRG465C2 PDEE (Izy) | HRG465C2 PDEE/A (Izy) | HRG465C2 SDEE (Izy) | HRG465C2 SDEE/A (Izy) | HRX426C PDE | HRX426C PXE | HRX426C SDE | HRX476C PXE | HRX476C QXE | HRX476C1 HYEE | HRX476C1 PKEE | HRX476C1 VKEE | HRX476C1 VYEE | HRD536C HXE | HRD536C SXE | HRD536C2 HXE | HRD536C2 HXEE | HRD536C2 TXE | HRD536C2 TXEE | HRD536C3 HXEE | HRD536C3 TXEE | HRX537C HME | HRX537C TDE | HRX537C1 HMEA | HRX537C1 HXEA | HRX537C1 TDEA | HRX537C1 VYEA | HRX537C2 HZEA | HRX537C2 VYEA | HRD536K4 QXEH |
