Description
Overview:

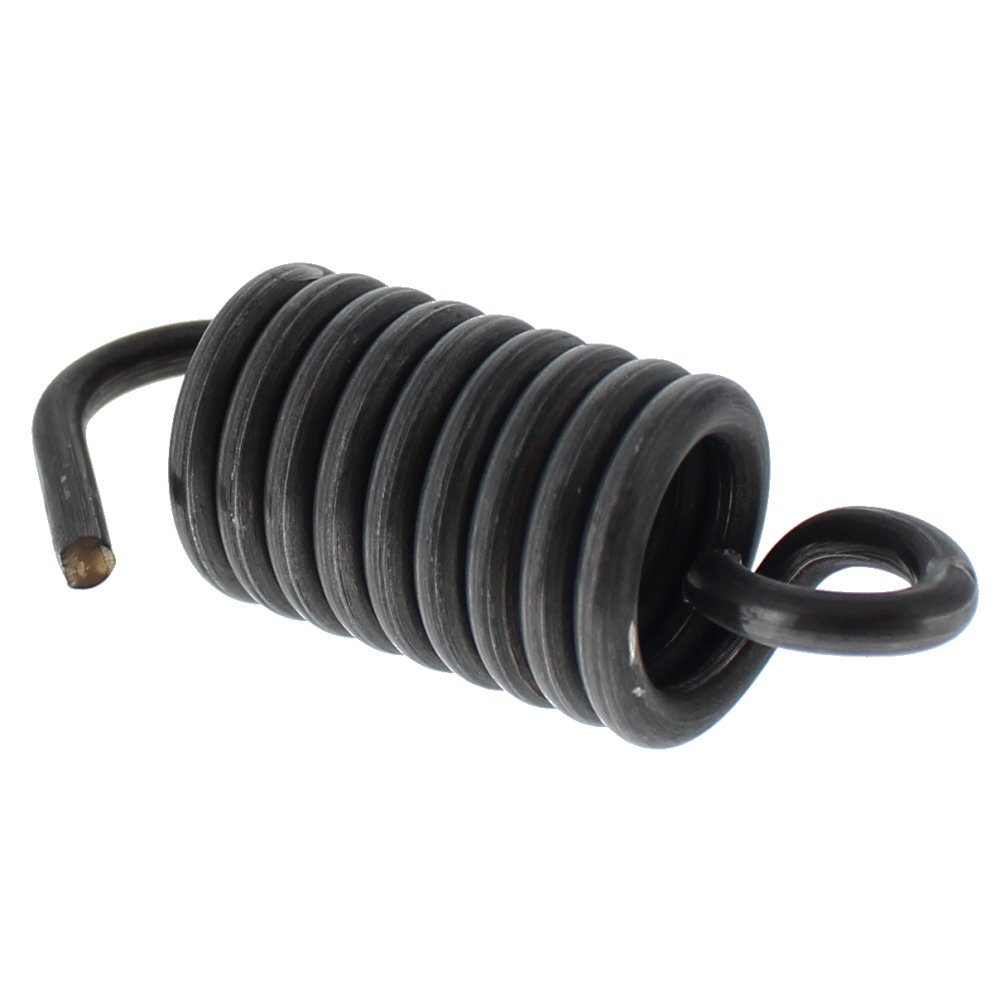

This genuine Husqvarna spring (MPN 506 94 63 01) is a durable, tempered spring‐steel component used across Husqvarna Rider and professional front‐mower platforms. It provides controlled tension and return action for belt idlers, linkages and operator controls, helping to keep drive and cutting systems working smoothly. The robust steel coil with hooked ends delivers repeatable performance under vibration and load, making it suitable for routine maintenance or like‐for‐like replacement of a fatigued spring. Designed to meet OEM specifications, it restores the correct engagement and return force without modification. Ideal for Husqvarna ride‐on machines used in domestic and commercial settings, including models such as P524 and PR15.
Key Features:
- Genuine Husqvarna OEM part for assured fit and compatibility (MPN 506 94 63 01)
- Tempered spring steel for long service life under repeated flexing
- Maintains correct belt/idler tension and smooth control return
- Consistent performance under vibration, shock and changing loads
- Hooked ends for straightforward like‐for‐like installation
- Designed to OEM specification to match original spring rate and length
- Wide model coverage across Rider, Proflex, PT and RC series machines
- Helps prevent belt slip, poor engagement and uneven cutting performance
Typical Applications:
Commonly used on front‐mounted Rider mowers to load deck idler arms, maintain drive belt tension, and return operator controls or linkages to neutral. Suitable for garden, estate and grounds‐maintenance work, as well as commercial landscaping where reliable deck engagement and smooth drive operation are required.
Also known as:
Extension spring, return spring, belt tension spring, deck idler spring, control return spring, linkage spring, mower spring.
Fits Models:
P 524EFI, P524, P524EFI, PR14, PR15, PR17, PR17 AWD, PR18, PR18 AWD, Proflex 1200, Proflex 18, Proflex 20, Proflex 21, Proflex 21 AWD, PT26 D, R213 C, R214 T, R214 T AWD, R214 TC, R215 TX, R216, R216 AWD, R216 T AWD, R316 T, R316 T AWD, R316 TX, R316 TX AWD, R316 TXs AWD, R316 Ts AWD, R316 TsX AWD, R318, R318 X, R320 AWD, R320 X AWD, R322T AWD, R418 Ts, R418 TS AWD, R422 Ts, R422 Ts AWD, RC 320Ts AWD, Rider 1030, Rider 1200, Rider 13, Rider 13 AWD, Rider 13 BIO, Rider 13 C, Rider 13 R, Rider 15 C, Rider 15 T, Rider 15 T AWD, Rider 155, Rider 155 AWD, Rider 15V2, Rider 15V2 AWD, Rider 16, Rider 16 C, Rider 16 C AWD, Rider 16 H, Rider 175, Rider 175 AWD, Rider 18, Rider 18 AWD, Rider 850 HST, Rider 970 HST, Rider PRO 18.
Alternate Part Numbers:
506 94 63 01, 506 94 63-01, 506946301
Product Specifications
| L&S Part No. | 506 94 63 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 506946301 |
| Unit of Sale | 1 |
| Applications | P 524EFI, P 524EFI Rider, P524, P524 Rider, P524EFI, PR14, PR14 Rider, PR15, PR15 Rider, PR17, PR17 AWD, PR17 AWD Rider, PR17 Rider, PR17AWD, PR18, PR18 AWD, PR18 AWD Rider, PR18 Rider, PR18AWD, PT26 D, PT26 D Rider, PT26D, Proflex 1200, Proflex 1200 Rider, Proflex 18, Proflex 18 Rider, Proflex 20, Proflex 20 Rider, Proflex 21, Proflex 21 AWD, Proflex 21 AWD Rider, Proflex 21 Rider, R213 C, R213 C Rider, R213C, R214 T, R214 T AWD, R214 T AWD Rider, R214 T Rider, R214 TC, R214 TC Rider, R214T, R214TC, R215 TX, R215 TX Rider, R215TX, R216, R216 AWD, R216 AWD Rider, R216 Rider, R216 T AWD, R216 T AWD Rider, R216AWD, R316 T, R316 T AWD, R316 T AWD Rider, R316 T Rider, R316 TX, R316 TX AWD, R316 TX AWD Rider, R316 TX Rider, R316 TXs AWD, R316 TXs AWD Rider, R316 Ts AWD, R316 Ts AWD Rider, R316 TsX AWD, R316 TsX AWD Rider, R316T, R316TX, R318, R318 Rider, R318 X, R318 X Rider, R318X, R320 AWD, R320 AWD Rider, R320 X AWD, R320 X AWD Rider, R320AWD, R322T AWD, R322T AWD Rider, R418 TS AWD, R418 TS AWD Rider, R418 Ts, R418 Ts Rider, R418TS, R422 Ts, R422 Ts AWD, R422 Ts AWD Rider, R422 Ts Rider, R422TS, RC 320Ts AWD, RC 320Ts AWD Rider, RIDER13, RIDER16, RIDER18, Rider 1030, Rider 1200, Rider 13, Rider 13 AWD, Rider 13 BIO, Rider 13 C, Rider 13 R, Rider 15 C, Rider 15 T, Rider 15 T AWD, Rider 155, Rider 155 AWD, Rider 15V2, Rider 15V2 AWD, Rider 16, Rider 16 C, Rider 16 C AWD, Rider 16 H, Rider 175, Rider 175 AWD, Rider 18, Rider 18 AWD, Rider 850 HST, Rider 970 HST, Rider PRO 18 |
| Machine Type | Mowers |
| Fits Brands | Husqvarna |
| Fits Models | P 524EFI Rider | P524 Rider | PR14 Rider | PR15 Rider | PR17 Rider | PR17 AWD Rider | PR18 Rider | PR18 AWD Rider | PROFLEX 1200 Rider | PROFLEX 18 Rider | PROFLEX 20 Rider | PROFLEX 21 Rider | PROFLEX 21 AWD Rider | PT26 D Rider | R213 C Rider | R214 T Rider | R214 T AWD Rider | R214 TC Rider | R215 TX Rider | R216 Rider | R216 AWD Rider | R216 T AWD Rider | R316 T Rider | R316 T AWD Rider | R316 Ts AWD Rider | R316 TsX AWD Rider | R316 TX Rider | R316 TX AWD Rider | R316 TXs AWD Rider | R318 Rider | R318 X Rider | R320 AWD Rider | R320 X AWD Rider | R322T AWD Rider | R418 Ts Rider | R418 TS AWD Rider | R422 Ts Rider | R422 Ts AWD Rider | RC 320Ts AWD Rider | RIDER 1030 | RIDER 1200 | RIDER 13 | RIDER 13 AWD | RIDER 13 BIO | RIDER 13 C | RIDER 13 R | RIDER 15 C | RIDER 15 T | RIDER 15 T AWD | RIDER 155 | RIDER 155 AWD | RIDER 15V2 | RIDER 15V2 AWD | RIDER 16 | RIDER 16 C | RIDER 16 C AWD | RIDER 16 H | RIDER 175 | RIDER 175 AWD | RIDER 18 | RIDER 18 AWD | RIDER 850 HST | RIDER 970 HST | RIDER PRO 18 |
